311XBXP-24VDC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 311XBXP-24VDC

311XBXP-24VDC: DescriptionPower/Signal Relay, DPDT, Momentary, 0.075A (Coil), 24VDC (Coil), 1800mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size184KB，3 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

311XBXP-24VDC Overview

Power/Signal Relay, DPDT, Momentary, 0.075A (Coil), 24VDC (Coil), 1800mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

311XBXP-24VDC Parametric

Parameter Name	Attribute value
Maker	Struthers-Dunn
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum coil current (DC)	0.075 A
Coil operating voltage (DC)	19.2 V
Coil power	1800 mW
Coil release voltage (DC)	2.4 V
Coil resistance	320 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	5A@240VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	311
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	35 ms
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	35 ms
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

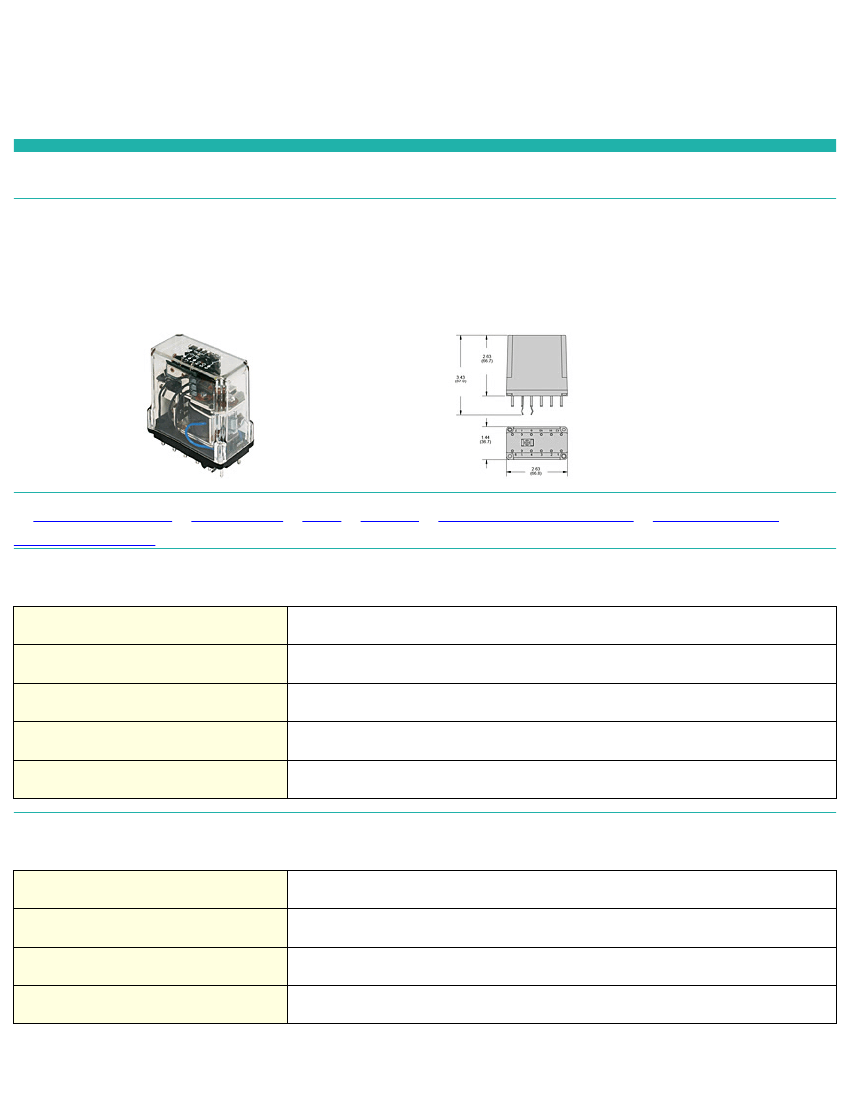

Item # 311XBXP-24VDC, 311 Series - Industrial Sequencing Relays

The 311 Series relays are sequencing (stepper) relays built on the industrial 219 style frame. Hold down clip is integral to the relay base. Double pole contacts transfer

on energizing of coil or de-energizing. Dual cam movement allows contacts to operate together or separately. Works equally well with application of continous voltage

to coil or energy saving impulse. No continuous voltage required for memory. Numerous custom switching arrangements are possible over 8 steps per revolution of the

cams.

For Additional Configuration please contact the manufacturer.

SPECIFICATIONS

CONTACTS

COIL

TIMING

DIELECTRIC STRENGTH

TEMPERATURE

MISCELLANEOUS

SPECIFICATIONS

Series

311

Contact Arrangement

XBX (DPDT) - (2 form C)

Standard Features

Plug-in with polycarbonate cover

Contact Transfer

Coil is energized

Coil Voltage

24 VDC

CONTACTS

Contact Configuration

DPDT

Contact Material

Silver Alloy

Contact Rating

Contact Rating 120 / 240VAC Resistive

7/31/2013 | Page 1 of 3
