311XBXPR12VDC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 311XBXPR12VDC

311XBXPR12VDC: DescriptionPower/Signal Relay, DPDT, Latched, 0.15A (Coil), 12VDC (Coil), 1800mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,; CategoryMechanical and electronic products relay; File Size326KB，2 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric Compare View All

311XBXPR12VDC Overview

Power/Signal Relay, DPDT, Latched, 0.15A (Coil), 12VDC (Coil), 1800mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,

311XBXPR12VDC Parametric

Parameter Name	Attribute value
Maker	Struthers-Dunn
Reach Compliance Code	unknown
ECCN code	EAR99
body width	36.7 mm
body height	66.7 mm
Body length or diameter	66.8 mm
Maximum coil current (DC)	0.15 A
Coil operating voltage (DC)	9.6 V
Coil power	1800 mW
Coil release voltage (DC)	1.2 V
Coil resistance	63.5 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	5A@240VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	35 ms
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
physical size	66.8mm x 36.7mm x 66.7mm
Guideline	UL
Relay action	LATCHED
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	35 ms
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

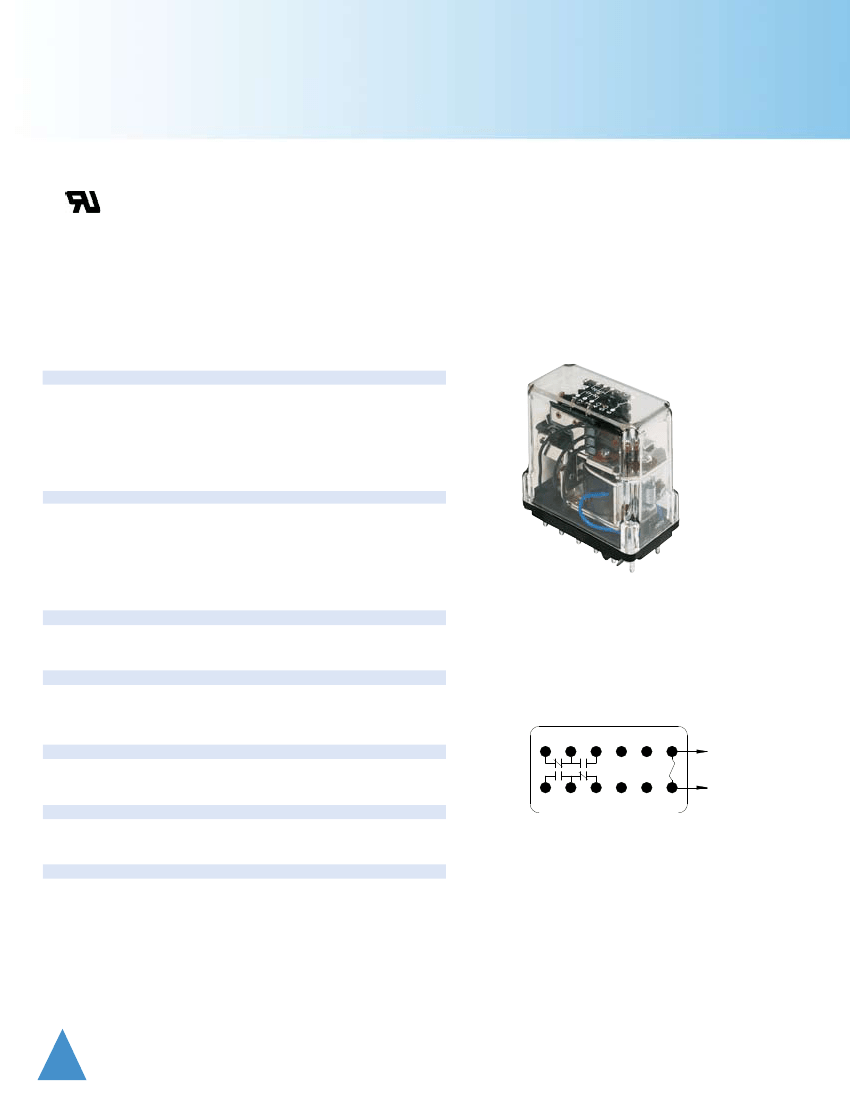

311 Series - Industrial Sequencing

DPDT, 5 Amp

File No. ES2197

The 311 Series relays are sequencing (stepper) relays built on the industrial 219 style frame. Hold

down clip is integral to the relay base. Double pole contacts transfer on energizing of coil or

de-energizing. Dual cam movement allows contacts to operate together or separately. Works

equally well with application of continous voltage to coil or energy saving impulse. No continuous

voltage required for memory. Numerous custom switching arrangements are possible over 8 steps

per revolution of the cams.

GENERAL SPECIFICATIONS (@ 25° C)

Contacts:

Contact Configuration

Contact Material

Contact Rating

120 / 240VAC Resistive

28VDC Resistive

Contact Resistance, Initial

Coil:

Coils Available

Nominal Coil Power

Input Voltage Tolerance - AC

Input Voltage Tolerance - DC

Drop out voltage

Duty

Timing:

Operate Time (max)

Release Time (max)

Dielectric Strength:

Across Open Contacts

Between Mutally Insulated Points

Insulation Resistance

Temperature:

Operating

Storage

Life Expectancy:

Electrical (full load operations)

Mechanical (no load operations)

Miscellaneous:

Mounting Position

Mating Socket

Enclosure

Weight

DPDT

Silver Alloy

5 Amp

100 milliohms max @ 6VDC

AC or DC up to 300V

4.9VA 1.8W

85% to 110% of nominal

80% to 110% of nominal

10% of nominal

Continuous

35mS

1500Vrms

1,000 Megohms min @ 500VDC

-20 to 60°C (-4 to 140°F)

-40 to 105°C (-40 to 221°F)

311 Wire Diagram

(Top View)

100,000

5,000,000

Any

27390D

Clear Polycarbonate

7.5oz (190 grams)

311XBXP

311XBXPR*

*Transfer on release

4/9

www.struthers-dunn.com

(843) 664-3303

Operate

311XBXPR12VDC Related Products

	311XBXPR12VDC	311XBXP6VAC	311XBXP6VDC	311XBXPR12VAC	311XBXPR6VDC
Description	Power/Signal Relay, DPDT, Latched, 0.15A (Coil), 12VDC (Coil), 1800mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,	Power/Signal Relay, DPDT, Latched, 4900mW (Coil), 5A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount	Power/Signal Relay, DPDT, Latched, 0.3A (Coil), 6VDC (Coil), 1800mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,	Power/Signal Relay, DPDT, Latched, 4900mW (Coil), 5A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount	Power/Signal Relay, DPDT, Latched, 0.3A (Coil), 6VDC (Coil), 1800mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,
Maker	Struthers-Dunn	Struthers-Dunn	Struthers-Dunn	Struthers-Dunn	Struthers-Dunn
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	36.7 mm	36.7 mm	36.7 mm	36.7 mm	36.7 mm
body height	66.7 mm	66.7 mm	66.7 mm	66.7 mm	66.7 mm
Body length or diameter	66.8 mm	66.8 mm	66.8 mm	66.8 mm	66.8 mm
Coil power	1800 mW	4900 mW	1800 mW	4900 mW	1800 mW
Coil resistance	63.5 Ω	1.1 Ω	15.5 Ω	4.2 Ω	15.5 Ω
Coil/Input Power Type	DC	AC	DC	AC	DC
Contact (AC) maximum rated R load	5A@240VAC	5A@240VAC	5A@240VAC	5A@240VAC	5A@240VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A	5 A
Maximum contact current (DC)	5 A	5 A	5 A	5 A	5 A
Contact (DC) maximum rated R load	5A@28VDC	5A@28VDC	5A@28VDC	5A@28VDC	5A@28VDC
Maximum contact voltage (AC)	240 V	240 V	240 V	240 V	240 V
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V	28 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
operating hours	35 ms	35 ms	35 ms	35 ms	35 ms
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
physical size	66.8mm x 36.7mm x 66.7mm	66.8mm X 36.7mm X 66.7mm	66.8mm x 36.7mm x 66.7mm	66.8mm X 36.7mm X 66.7mm	66.8mm x 36.7mm x 66.7mm
Guideline	UL	UL	UL	UL	UL
Relay action	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
Relay function	DPDT	DPDT	DPDT	DPDT	DPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	35 ms	35 ms	35 ms	35 ms	35 ms
surface mount	NO	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maximum coil current (DC)	0.15 A	-	0.3 A	-	0.3 A
Coil operating voltage (DC)	9.6 V	-	4.8 V	-	4.8 V
Coil release voltage (DC)	1.2 V	-	0.6 V	-	0.6 V
Maximum coil voltage (DC)	12 V	-	6 V	-	6 V
