53493-1479 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53493-1479

53493-1479: DescriptionBoard Connector, 140 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug, LEAD FREE; CategoryThe connector The connector; File Size182KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

53493-1479 Overview

Board Connector, 140 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug, LEAD FREE

53493-1479 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT & TUBE PACKAGE
Board mount options	FITTING NAIL
body width	0.252 inch
subject depth	0.295 inch
body length	2.598 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	LEAF
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.8896 N
Insulation resistance	500000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	53493
Plug contact pitch	0.031 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.572 mm
Plating thickness	8u inch
polarization key	ENDS
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	140
UL Flammability Code	94V-0
Evacuation force-minimum value	.0973 N

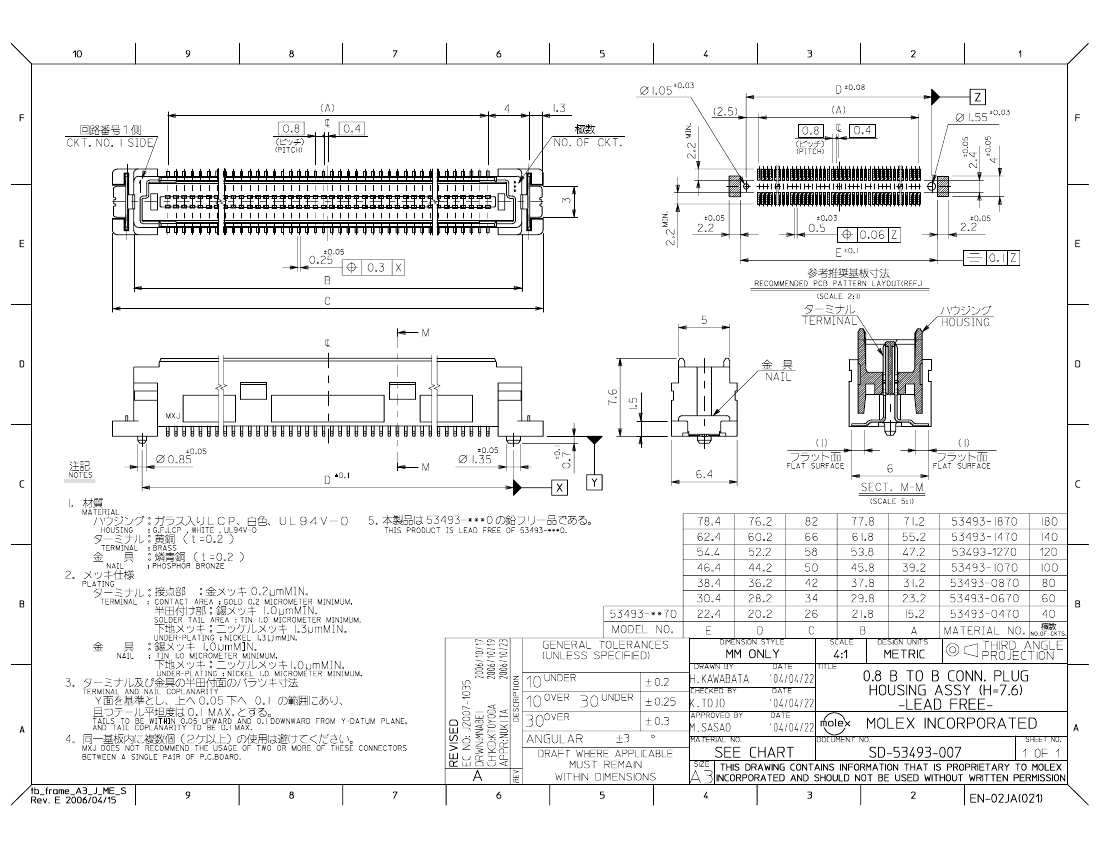

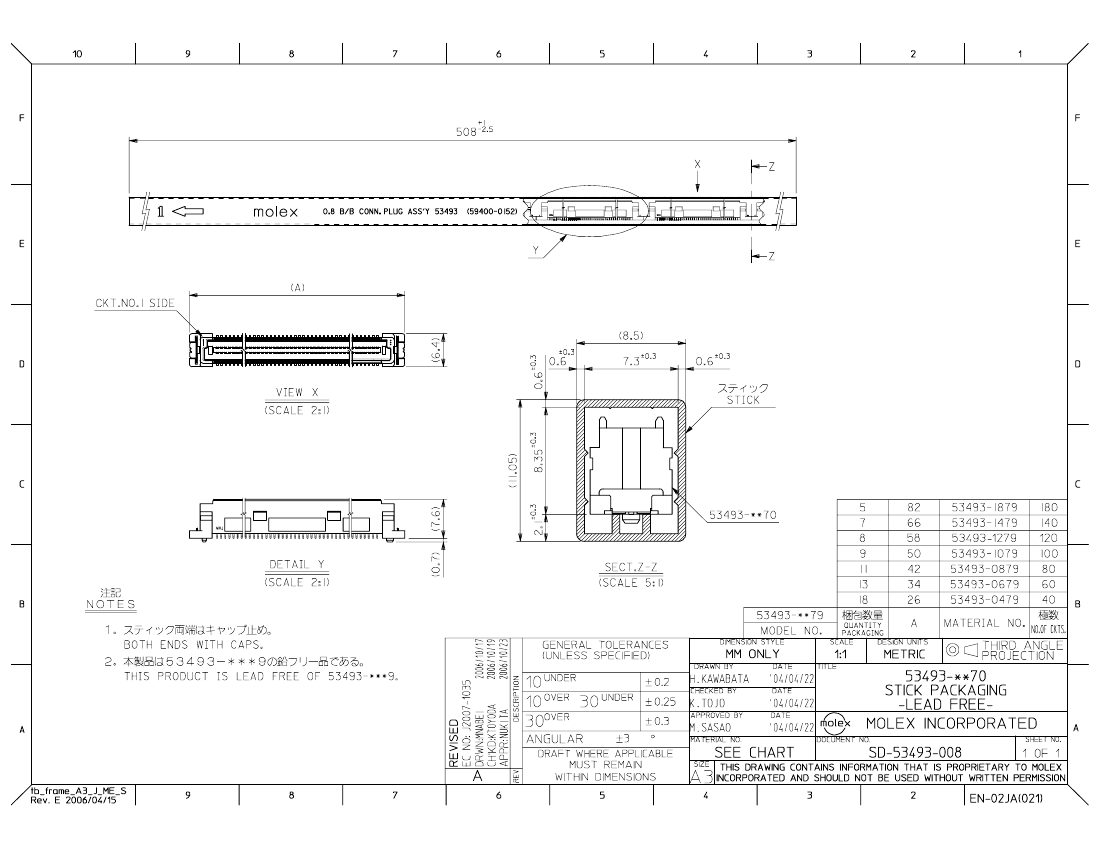

Preview

Download Datasheet

View All

53493-1479 Related Products

	53493-1479	53493-1879	53493-1079	53493-0479
Description	Board Connector, 140 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug, LEAD FREE	Board Connector, 180 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug, LEAD FREE	Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug, LEAD FREE	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug, LEAD FREE
Maker	Molex	Molex	Molex	Molex
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	unknown	compliant	compliant
Other features	ROHS COMPLIANT & TUBE PACKAGE	ROHS COMPLIANT & TUBE PACKAGE	ROHS COMPLIANT & TUBE PACKAGE	ROHS COMPLIANT & TUBE PACKAGE
Board mount options	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	0.252 inch	0.252 inch	0.252 inch	0.252 inch
subject depth	0.295 inch	0.295 inch	0.295 inch	0.295 inch
body length	2.598 inch	3.228 inch	1.969 inch	1.024 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	AU ON NI	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	BRASS	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	50 mΩ	50 mΩ	50 mΩ	50 mΩ
Contact style	LEAF	LEAF	LEAF	LEAF
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
Durability	50 Cycles	50 Cycles	50 Cycles	50 Cycles
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	.8896 N	.8896 N	.8896 N	.8896 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	WHITE	WHITE	WHITE	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	53493	53493	53493	53493
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Mixed contacts	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.572 mm	4.572 mm	4.572 mm	4.572 mm
Plating thickness	8u inch	8u inch	8u inch	8u inch
polarization key	ENDS	ENDS	ENDS	ENDS
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	140	180	100	40
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.0973 N	.0973 N	.0973 N	.0973 N
Is it Rohs certified?	conform to	-	conform to	conform to
ECCN code	EAR99	-	EAR99	EAR99
