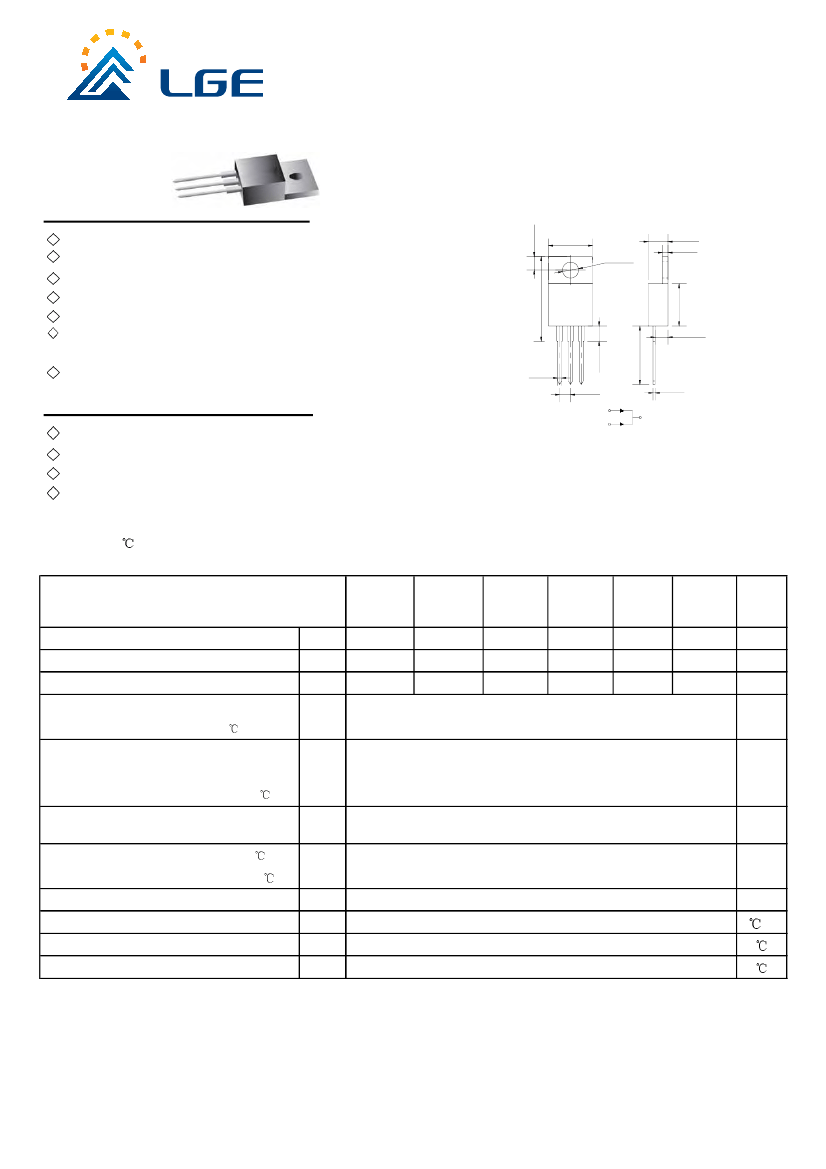

16A10C-16A100C
Plastic Silicon Rectifiers
VOLTAGE RANGE:
100
--- 1000 V
CURRENT:
16
A
2.8± 0.1
Features
Low cost
Diffused junction
Low leakage
Low forward voltage drop
High current capability
Easily cleaned witn Freon,Alcohol,lsopropanol
and similar solvents
The plastic material carries U/L recognition 94V-0
TO-220AB
10.2± 0.2
? 3.8± 0.15
4.5± 0.2
1.4± 0.2
19.0± 0.5
1
PIN
2 3
8.9± 0.2
2.6± 0.2
3.5± 0.3
13.8± 0.5
0.5± 0.1
PIN 1
PIN 3
CASE
PIN 2
0.9± 0.1
2.5± 0.1
Mechanical Data
Case:JEDEC TO-220AB,molded plastic
Polarity: Color band denotes cathode
Weight: 0.71ounce, 2.006 grams
Mounting position: Any
Dimensions in millimeters
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
ambient temperature unless otherwise specified.
Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%.
16A10C
Maximum recurrent peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forw ard rectified current
@T
C
=120
Peak forw ard surge current
8.3ms single half-sine-w ave
superimposed on rated load
@T =125
J
16A20C
200
140
200
16A40C
400
280
400
16
16A60C 16A80C 16A100C UNITS
600
420
600
800
560
800
1000
700
1000
V
V
V
A
V
RRM
V
RMS
V
DC
I
F(AV)
100
70
100
I
FSM
400
A
Maximum instantaneous forw ard voltage
@
8.0
A
Maximum reverse current
at rated DC blocking voltage
Typical junction capacitance
Typical thermal resistance
@T
A
=25
@T
A
=100
(Note1)
(Note2)
V
F
I
R
C
J
R
θ
JC
T
J
T
STG
1.0
10
100
120
2.0
- 55 ---- + 150
- 55 ---- + 150
V
µA
pF
/W
Operating junction temperature range
Storage temperature range
2. Thermal resistance from junction to case.
NOTE: 1. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
http://www.luguang.cn
mail:lge@luguang.cn
16A10C-16A100C
Plastic Silicon Rectifiers
Ratings AND Charactieristic Curves
FIG.1 -- FORWARD DERATING CURVE
AVERAGE FORWARD RECTIFIED CURRENT
INSTANTANEOUS FORWARD CURRENT
FIG.2 -- TYPICAL FORWARD CHARACTERISTICS
20
10
4
2
16
AMPERES
12
AMPERES
1.0
0.4
0.2
0.1
0.06
0.04
0.02
0.01
0.7
0.8
0.9
1.0
1.1
1.2
T
J
=25
Pulse Width=300uS
8.0
4.0
0
0
25
50 75
100 125 150
175
S i n g le P h a s e
H a lf W a v e 6 0 H
R e s i s t iv e o r
I n d u c t iv e L o a d
Z
CASE TEMPERATURE,℃ INSTANTANEOUS FORWARD VOLTAGE, VOLTS
FIG.3 --MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
FIG.4 -- TYPICAL JUNCTION CAPACITANCE
PEAK FORWARD SURGE CURRENT
400
1000
300
CAPACITANCE, pF
T
J
=125
8.3ms Single Half
Sine-Wave
f=1MHz
T
J
=25
AMPERES
100
200
100
10
.1
0
1
2
4
8 10
20
40
60 80 100
.2
.4
1.0
2
4
10 20
40
100
NUMBER OF CYCLES AT 60Hz
REVERSE VOLTAGE, VOLTS
http://www.luguang.cn
mail:lge@luguang.cn
