2CO006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 2CO006

2CO006: DescriptionELECTRIC FUSE, 6A, 600VAC, 250VDC, 200000A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size87KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

2CO006 Overview

ELECTRIC FUSE, 6A, 600VAC, 250VDC, 200000A (IR), INLINE/HOLDER

2CO006 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	RATED BREAKING CAPACITY AT 250 VDC: 80000 A
body height	56 mm
Body length or diameter	21 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	2CO
Installation features	INLINE/HOLDER
physical size	21mm x 56mm
Rated breaking capacity	200000 A
Rated current	6 A
Rated voltage (AC)	600 V
Rated voltage (DC)	250 V
Guideline	CSA
surface mount	NO
Terminal shape	TAB/BLADE
Base Number Matches	1

Preview

Download Datasheet

View All

International Products

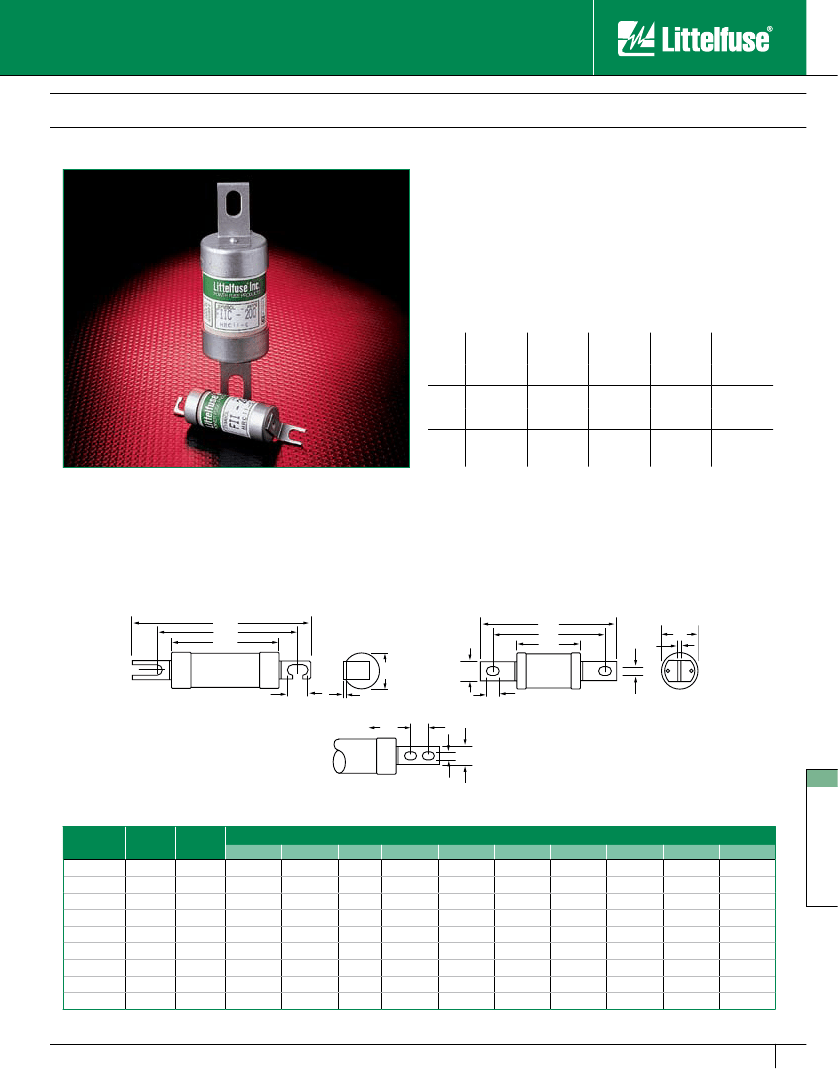

British Dimension HRCII-C Fuses

600 Volts AC • 2– 600 Amperes

Specifications

Voltage Rating:

Interrupting Rating:

Ampere Range:

Approvals:

600 Volts AC, 250 Volts DC

200,000 amperes rms symmetrical AC

80,000 amperes rms symmetrical DC

2 – 600 amperes

CSA Certified to Standard C22.2 No. 106-M90

(File No. LR90341)

Ampere ratings

2CO

125

150

100

200

250

125

150

300

350

200

250

100

2CC

400

450

300

350

500

600

400

2CM

HRCII-C fuses are stud-mounted fuses designed to British standard

dimensions. They are generally used for motor short-circuit protection in

dead-front holders, and are normally required to be used in conjunction

with a motor running overload device.

Example part number (series & amperage): 2CM 150

Recommended Fuse Blocks

DF30 (F, B, FB) — Fits 2 – 30 amps

DF60 (F, B, FB) — Fits 40 – 60 amps

DF100 (F, B, FB) — Fits 80 – 100 amps

For additional information on HRCII-C fuse holders, contact factory.

FIG. 1

FIG. 2

FIG. 3

International Products

Cat. No.

2CO 2-30

2CO 40-60

2CO 80-100

2CC 125-200

2CC 250-400

2CC 450-600

2CM 80-100

2CM 125-200

2CM 250-400

Old LF

Part No.

FII

FIIC

FIIM

Refer To

Fig. No.

Dimensions in mm (inches in parentheses)

56 (2.2)

57 (2.24)

68 (2.88)

76 (3)

81 (3.19)

83 (3.27)

66 (2.6)

77 (3.03)

81 (3.19)

(0.83)

(1.02)

(1.42)

(1.61)

(2.28)

(2.91)

(1.22)

(1.81)

(2.25)

—

85 (3.3)

88 (3.45)

110 (4.33)

137 (5.39)

210 (8.27)

135 (5.31)

110 (4.33)

136 (5.35)

9 (0.35)

13 (0.51)

19 (0.75)

26 (1.02)

19 (0.75)

26 (1.02)

1 (0.04)

1.6 (0.06)

2.4 (0.09)

3.6 (0.14)

6.5 (0.26)

6.5 (0.25)

3.6 (0.14)

2.4 (0.09)

5.2 (0.2)

73 (2.87)

94 (3.7)

111 (4.37)

133 (5.24)

111 (4.37)

94 (3.7)

111 (4.37)

5.5 (0.21)

8.7 (0.34)

10.3 (0.4)

8.7 (0.34)

7.5 (0.29)

—

16 (0.63)

10.3 (0.4)

16 (0.63)

—

25.4 (1)

—

*Hole diameter to accept insulated stud (types C and D) mm min

•

POWR-GARD

™

Products Catalog

www.littelfuse.com

169
