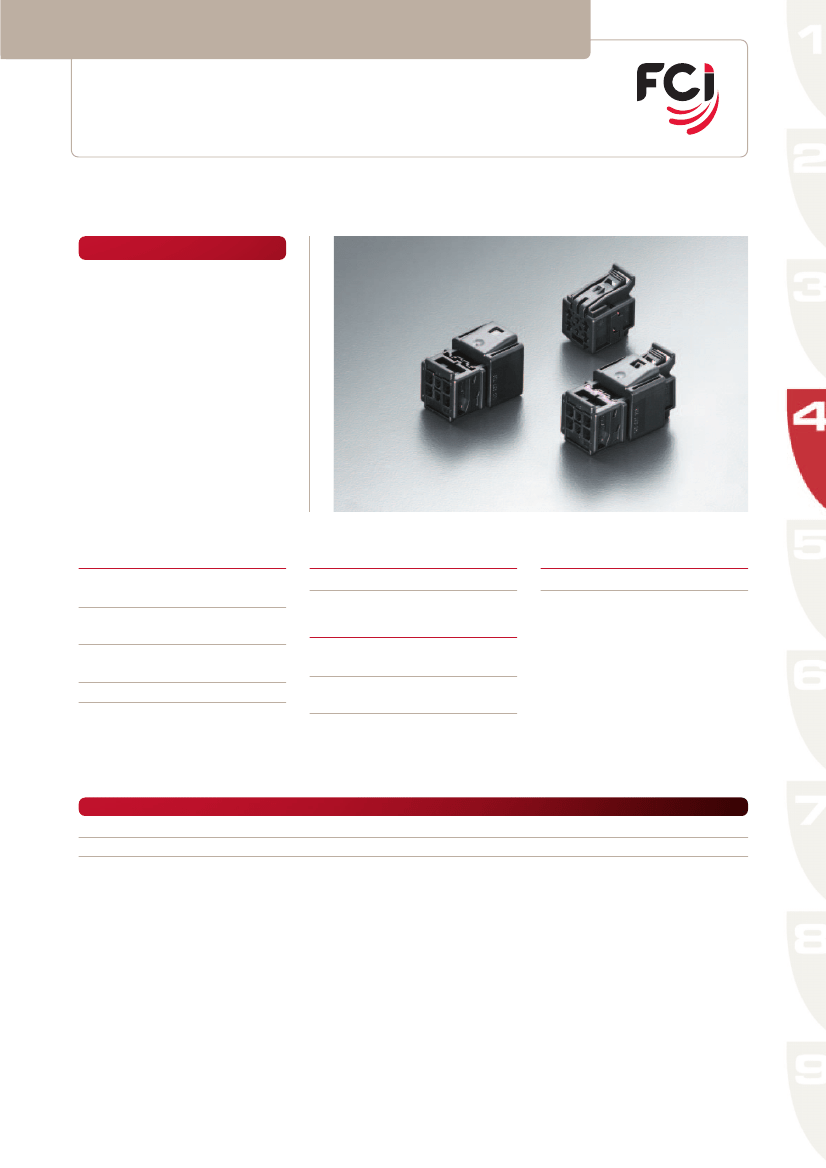

Instrument panel and cockpit connectors
Coupling connectors
DCS-2
6 way coupling housing for 1.5 + 2.8 mm terminals
Features
•
6 position housing
•
Double row connector
•
Lateral secondary lock for terminal
•
•
•
•
position assurance (TPA)
Plastic locking feature
Mechanical polarization
Several codes optional
Several colours possible
Performance characteristics
•
Temperature range:
from –40°C to + 120°C
Construction
•
Housing material:
PBT
Tooling
•
Terminal removal tool: Consult us
•
Contact retention force: > 55 N for
1.5 mm / > 80 N for 2.8 mm
Connector compatibility
•
Useable terminals:
•
Matable with:
DCS-2
1.5 and 2.8 mm female terminals
DCS-2
1.5 and 2.8 mm male terminals
•
Contact insertion force:
< 10 N for
1.5 mm / < 15 N for 2.8 mm
•
Connector mating force: < 100 N
Part Numbers
3 023 27 01
3 033 07 01
No. of position
6
6
Terminal size
2 x [1.5 mm] / 4 x [2.8 mm]
2 x [1.5 mm] / 4 x [2.8 mm]
Type
Female housing
Male housing
Code
1
1
Colour
Black
Black
4.104
Rev 01/04
Instrument panel and cockpit connectors
Coupling connector
DCS-2
6 way coupling housing for 1.5 + 2.8 mm terminals

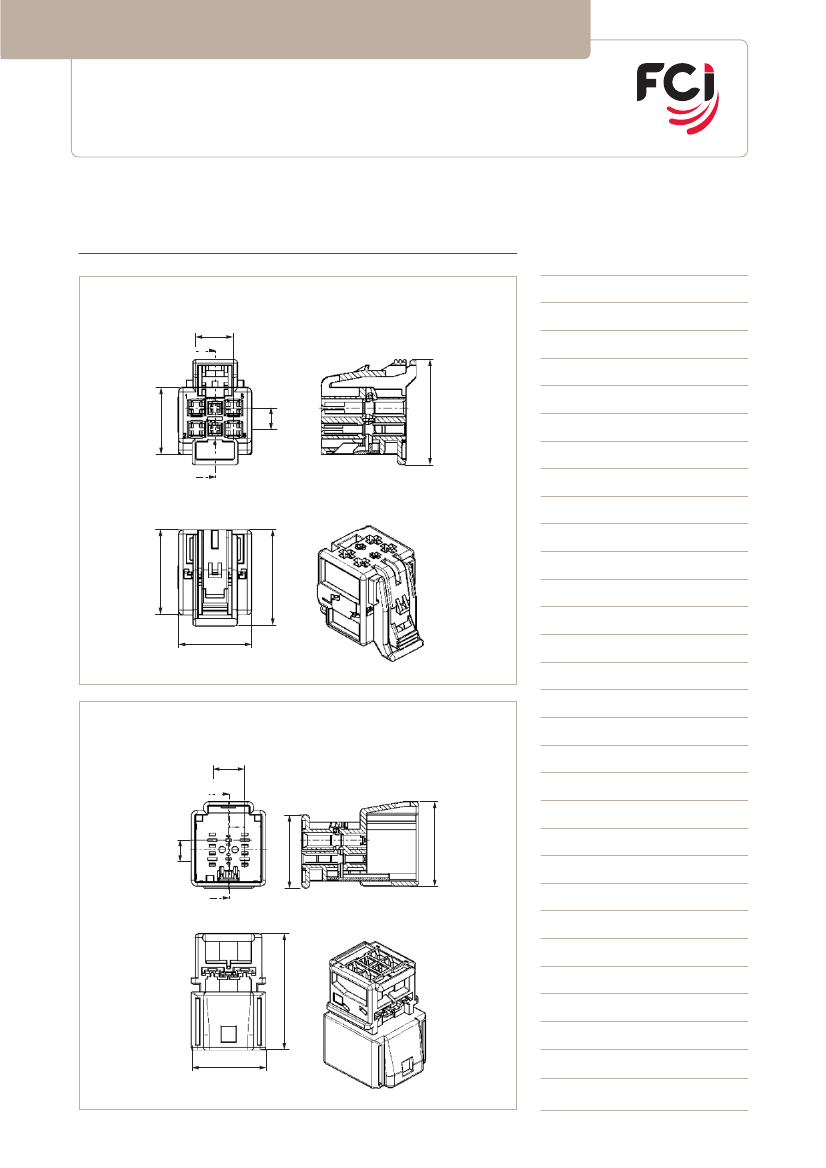

Dimensional characteristics
Notes :
Female housing
10
A
SECTION A-A
5.8
18.15
A
23
19.7
Male housing
10
SECTION A-A
A
5.8
26
A
23
Rev 01/04
36
22.75
4.105
26.15
28.5
