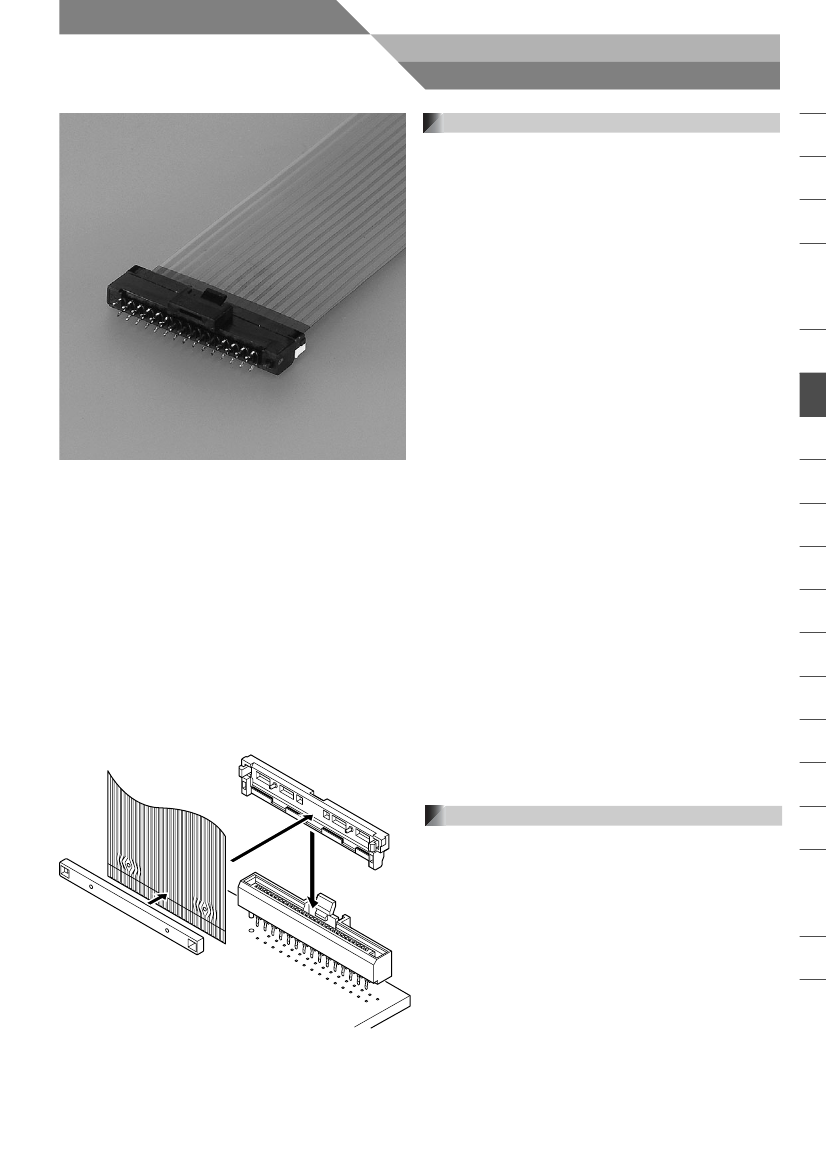

FMT
CONNECTOR
Connectors for FPC and FFC
Features
●Secure
mating process
SQF SQSK SHUNT RING
A FPC is fixed by a plug housing and then mated to a male
connector.
SQW
●Improvement
of contact reliability
Contact reliability and FPC retention force is improved
compared to the conventional connector for FPC.
FEL
FMT
FOX
The FMT connector is 1.0mm pitch FPC connector
suitable for environments in automotive compartment.
New concept for connecting a male connector and a
plug connector is adopted.
High contact reliability is ensured inside equipment
where a FPC is frequently used such as an automotive
meter.
CN
EA1
BIC
WPZ
ASG
HCC
WIC
ATSS
Specifications
¡Current
rating: 0.5A AC, DC
¡Voltage
rating: 50V AC, DC
¡Temperature
range: -30°C to +105°C
(including temperature rise in applying
electrical current)
¡Contact
resistance: Initial value/30mΩ max.
After environmental testing/500mΩ max.
¡Insulation
resistance: 500MΩ min.
¡Withstanding
voltage: 500V AC/minute
¡Applicable
FPC: Lead pitch/1.0mm
Lead width/0.7mm
Mating part thickness/0.08±0.02mm
¡Applicable
PC board: Thickness/1.6mm
Hole size/0.75±0.05mm (Through-hole)
SAC JUNCTION BOX INDEX
JS
T
∗
Compliant with ELV/RoHS.
∗
Contact JST for details.
94
FMT
CONNECTOR
Plug housing
SQW
SQF SQSK SHUNT RING
95
JST
Connectors for FPC and FFC
Circuits
30
Model No.
FMTP-30P-A
Material
Glass-filled PPS, black
Q’ty/bag
500
36.4
32
20
34.6
Retainer
Circuits
Model No.
FMTP-30P-B
Material
1.55
36.5
Header
Circuits
30
6.7
3
1.5
1
29
2
2
Circuit No.1
1.55
3
5.6
8.1
FEL
FMT
FOX
CN
EA1
BIC
WPZ
36
Q’ty/bag
1,000
30
Glass-filled PPS, natural (white)
ASG
HCC
WIC
ATSS
SAC JUNCTION BOX INDEX
20
Model No.
30FMT-BTK
Q’ty/box(tray)
385
Material and Finish
Terminal: Copper alloy, copper-undercoated, tin-plated
Housing: Glass-filled PA 6T, black
FMT
PC board layout, Assembly layout
SQW
SQF SQSK SHUNT RING
29
±0.1
2
±0.05
Circuit No.1
6.7
4.6
0.75
±0.05
2
±0.05
1
±0.05
1.55
3.8
2
±0.05
φ
1.2
±0.05
φ
0.75
±0.05
5.6
3
FEL
FMT
FOX
Note: 1. Tolerances are non-cumulative:
±0.05mm
for all centers.
2. Hole dimensions differ according to the type of PC board and piercing method.
The dimensions above should serve as guideline. Contact JST for details.
CN
Lead section dimensions of FPC
EA1
BIC
WPZ
ASG
2-
φ
0.7
+0.1
0
0.3
±0.3
HCC
5.2
±0.1
WIC
0.7
+0.1
-0.05
1
±0.05
20
±0.1
29
±0.1
31
±0.1
0.08
Dimensions of conductor
96
ATSS
SAC JUNCTION BOX INDEX
