5962-01-354-1882 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 5962-01-354-1882

Preview

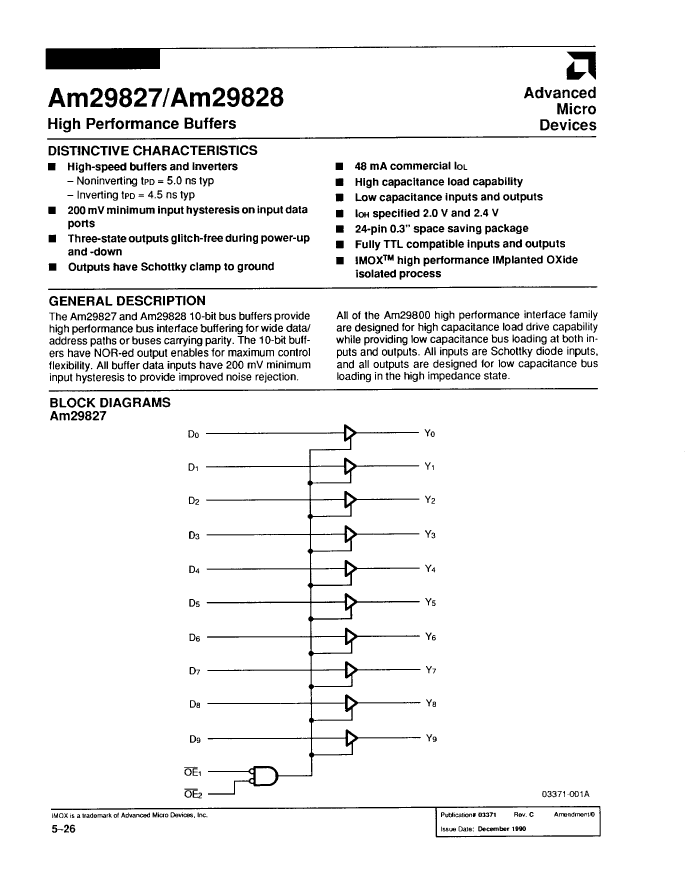

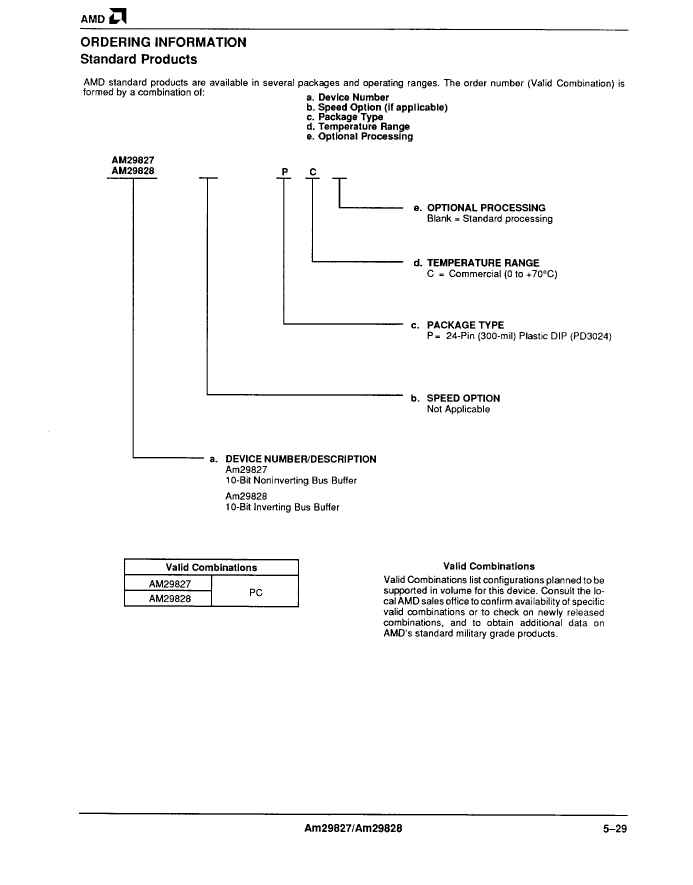

5962-01-354-1882: DescriptionBus Driver, 1-Func, 10-Bit, Inverted Output, TTL, PDIP24; Categorylogic logic; File Size463KB，13 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

5962-01-354-1882 Overview

Bus Driver, 1-Func, 10-Bit, Inverted Output, TTL, PDIP24

5962-01-354-1882 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
package instruction	DIP, DIP24,.3
Reach Compliance Code	compliant
Control type	ENABLE LOW
JESD-30 code	R-PDIP-T24
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.048 A
Number of digits	10
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	80 mA
Prop。Delay @ Nom-Sup	12 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

5962-01-354-1882 Related Products

	5962-01-354-1882	AM29827ADM/B	AM29827ADMB	AM29827PCB	AM29828ADMB	AM29828PCB	5962-01-354-1893
Description	Bus Driver, 1-Func, 10-Bit, Inverted Output, TTL, PDIP24	IC,BUFFER/DRIVER,SINGLE,10-BIT,F-TTL,DIP,24PIN,CERAMIC	Bus Driver, 1-Func, 10-Bit, True Output, TTL, CDIP24,	Bus Driver, 1-Func, 10-Bit, True Output, TTL, PDIP24	Bus Driver, 1-Func, 10-Bit, Inverted Output, TTL, CDIP24,	Bus Driver, 1-Func, 10-Bit, Inverted Output, TTL, PDIP24	Bus Driver, 1-Func, 10-Bit, True Output, TTL, PDIP24
package instruction	DIP, DIP24,.3	,	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3
Reach Compliance Code	compliant	unknow	unknow	unknow	unknow	unknow	compliant
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible
Control type	ENABLE LOW	-	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW
JESD-30 code	R-PDIP-T24	-	R-XDIP-T24	R-PDIP-T24	R-XDIP-T24	R-PDIP-T24	R-PDIP-T24
Logic integrated circuit type	BUS DRIVER	-	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.048 A	-	0.032 A	0.048 A	0.032 A	0.048 A	0.048 A
Number of digits	10	-	10	10	10	10	10
Number of functions	1	-	1	1	1	1	1
Number of terminals	24	-	24	24	24	24	24
Maximum operating temperature	70 °C	-	125 °C	70 °C	125 °C	70 °C	70 °C
Output characteristics	3-STATE	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	-	TRUE	TRUE	INVERTED	INVERTED	TRUE
Package body material	PLASTIC/EPOXY	-	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	-	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.3	-	DIP24,.3	DIP24,.3	DIP24,.3	DIP24,.3	DIP24,.3
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	-	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	80 mA	-	80 mA	80 mA	80 mA	80 mA	80 mA
Certification status	Not Qualified	-	Not Qualified	-	Not Qualified	-	Not Qualified
Nominal supply voltage (Vsup)	5 V	-	5 V	5 V	5 V	5 V	5 V
surface mount	NO	-	NO	NO	NO	NO	NO
technology	TTL	-	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	-	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	-	1	1	1	1	1	-
JESD-609 code	-	-	e0	e0	e0	e0	-
Prop。Delay @ Nom-Su	-	-	13 ns	23 ns	13 ns	23 ns	-
Terminal surface	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
