2A ULTRA FAST RECOVERY SURFACE MOUNT RECTIFIER
US2A THRU US2M
FEATURES
LOW PROFILE PACKAGE
PLASTIC PACKAGE HAS UNDERWRITERS LABORATORY
94V-0
IDEAL FOR SURFACE MOUNTED APPLICATION
GLASS PASSIVATED CHIP JUNCTION
BUILT-IN STRAIN RELIEF DESIGN
ULTRA FAST RECOVERY TIME FOR HIGH EFFICIENT
HIGH TEMPERATURE SOLDERING: 250°C/10 SECONDS AT
TERMINAL
MECHANICAL DATA
CASE: JEDEC DO-214AA MOLDED PLASTIC BODY,
DO-214AA (SMB), DIMENSIONS IN INCHES AND (MILLIMETERS)
TERMINAL: SOLDER PLATED, SOLDERABLE PER MIL-STD-
750 METHOD 2026
POLARITY: COLOR BAND DENOTES CATHODE
WEIGHT: 0.093 GRAMS
CATHODE
.086(2.20)
.077(1.96)
.220(5.59)
.205(5.21)
.180(4.57)
.160(4.06)
.096(2.44)
.084(2.13)
.155(3.94)
.130(3.30)
.060(1.52)
.030(0.76)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED
SINGLE PHASE, HALF WAVE, 60 HZ, RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%
RATINGS
MAXIMUM RECURRENT PEAK REVERSE VOLTAGE
MAXIMUM RMS VOLTAGE
MAXIMUM DC BLOCKING VOLTAGE
MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT
AT T
L
=90°C
PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF SINE-WAVE
SUPERIMPOSED ON RATED LOAD
TYPICAL JUNCTION CAPACITANCE (NOTE 1)
TYPICAL THERMAL RESISTANCE (NOTE 2)
STORAGE TEMPERATURE RANGE
OPERATING TEMPERATURE RANGE
SYMBOL US2A
V
RRM
V
RMS
V
DC
I
O
I
FSM
C
J
R
θjL
T
STG
T
OP
50
35
50
US2B
100
70
100
US2D
200
140
200
US2G
400
280
400
2.0
50
28
20
-55 TO + 150
-55 TO + 150
US2J
600
420
600
US2K
800
560
800
US2M UNITS
1000
700
1000
V
V
V
A
A
PF
℃/W
℃
℃
ELECTRICAL CHARACTERISTICS (A
T
T
A
=25°C UNLESS OTHERWISE NOTED)
CHARACTERISTICS
MAXIMUM FORWARD VOLTAGE AT I
O
DC
MAXIMUM DC REVERSE CURRENT AT TA=25°C
MAXIMUM DC REVERSE CURRENT AT TA=100°C
MAXIMUM REVERSE RECOVERY TIME (NOTE 3)
MARKING
SYMBOL US2A
V
F
I
R
I
R
T
RR
US2A
US2B
1.0
US2D
US2G
1.3
10
200
50
US2B
US2D
US2G
US2J
US2J
US2K
1.7
US2M UNITS
V
μA
μA
nS
US2M
75
US2K
NOTES: 1. MEASURED AT 1 MHZ AND APPLIED REVERSE VOLTAGE 0F 4.0 VOLTS
2. THERMAL RESISTANCE FROM JUNCTION TO AMBIENT AND JUNCTION TO LEAD P.C.B. MOUNTED ON
0.3 x 0.3”(8.0×8.0mm) COPPER PAD AREAS
3. REVERSE RECOVERY TEST CONDITIONS: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
US2A THRU US2M
Page: 1

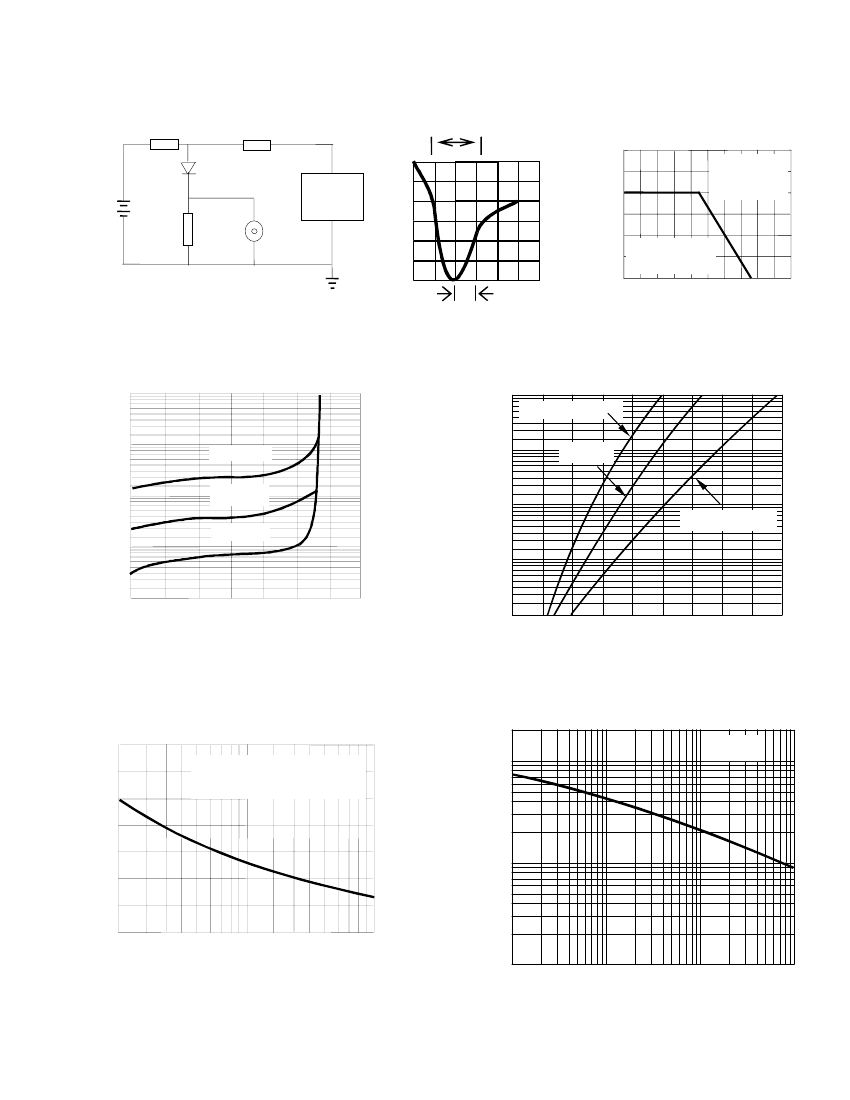

RATINGS AND CHARACTERISTIC CURVE US2A THRU US2M
FIG. 1-TEST CIRCUIT DIAGRAM AND REVERSE
RECOVERY TIME CHARACTERISTIC
50Ω
NO INDUCTIVE
10Ω
NO INDUCTIVE
Trr
FIG. 2-TYPICAL FORWARD
CURRENT DERATING CURVE
(-)
D.U.T.
(+)
25 V
dc
(Approx)
PULSE
GENERATOR
(NOTE 2)
1Ω
NON
INDUCTIVE
OSCILLOSCOPE
(NOTE 1)
AVERAGE FORWARD
CURRENT (A)
+0.5A
3.0
2.0
1.0
P.C.B MOUNTED ON
0.3×0.3”(8.0×8.0mm)
COPPER PAD AREAS
0
-0.25A
SINGLE PHASE
HALF WAVE 60Hz
RESISTIVE OR
INDUCTIVE LOAD
(-)
(+)
NOTE: 1. RISE TIME=7ns MAX. INPUT
IMPEDANCE=1 MOhms 22PF
2. RISE TIME =10ns MAX. SOURCE
IMPEDANCE=50 OHMS
-1.0A
1cm
0
0 20 40 60 80 100 120 140 160 180 200
LEAD TEMPERATURE (ºC)
SET TIME BASE
FOR 10/20 ns/cm
FIG. 3-TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT (uA)
100
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 4-TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
10
US2A~US2D
US2G
10
T
J
=125
o
C
T
J
=80
o
C
T
J
=25
o
C
1.0
1.0
0.1
US2J~US2M
.01
.1
.01
0
20
40
60
80 100 120 140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
.001
.2 .4
.6
.8 1.0 1.2 1.4 1.6 1.8 2.0
INSTANTANEOUS FORWARD VOLTAGE (V)
FIG. 5-MAXIMUM NON-REPETITIVE
FORWARD SURGE CURRENT
PEAK FORWARD SURGE CURRENT (A)
FIG. 6-TYPICAL JUNCTION CAPACITANCE
200
JUNCTION CAPACITANCE (pF)
70
60
50
40
30
20
10
0
0
1
2
4
6
10
20
40
60
100
NUMBER OF CYCLES AT 60H
Z
8.3 ms Single Half Sine Wave
(JEDEC Method)
100
40
20
10
6
4
2
1
.1 .2
.4
1.0 2
4
T
J
=25
o
C
10 20 40
100
REVERSE VOLTAGE (V)
US2A THRU US2M
Page: 2
