KMM
Series
Snap Mount
Large
Capacitance
Downsized
High Ripple
105 C
Maximum
Temperature
The KMM series capacitors are new downsized high temperature snap-in capacitors from United
Chemi-Con. The smaller sizes and longer rated lifetime compared to the KMH series make these
capacitors ideal for use in power supply filter circuits. The KMM series also has a very high ripple
current capability making them ideal for use in filter circuits. The KMM capacitors are available in 2 or
4-pin snap-in styles and 3 or 4 -pin straight terminals with or without standoffs.
The standard KMM capacitors are non-solvent proof and are not recommended when halogenated
cleaning solvents are used. Refer to the Mini-Glossary for recommended cleaning conditions.
SNAP MOUNT-105 C
KMM
Summary of Specifications
PC board 2 or 4-pin snap-in; optional 3 or 4-pin straight terminals.
Capacitance range: 39 to 3,300µF.
Voltage range: 160 to 450VDC.
Operating temperature range: 25 C to 105 C.
Leakage current: 0.02CV(µA) or 3mA, whichever is smaller, after 5 minutes at 20 C.
For 20mm case length: 0.03CV(µA) or 3mA, whichever is smaller, after 5 minutes
at 20 C.
Standard capacitance tolerance: 20%
Nominal case size (D L): 20 20mm to 35 60mm.
Rated lifetime: 2,000 to 3,000 hours at 105 C with the rated ripple current applied,
depending on case size.
350
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
KMM Series
KMM Specifications
Item
Operating Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
25 to 105 C
160 to 450VDC
39 to 3,300 F
20% ( M ) at
20 C, 120Hz
20 C.
Characteristics
I
0.02CV ( A ) or 3mA, whichever is smaller, after 5 minutes at 20 C.
For 20mm length: I
0.03CV ( A ) or 3mA, whichever is smaller, after 5 minutes at
Where I = Leakage current ( A ), C = Nominal capacitance ( F ) and V = Rated voltage ( V )
Dissipation Factor ( Tan )
At
20 C, 120Hz
160 - 400
0.15
420 - 450
0.20
Rated Voltage ( V )
Tan
( DF )
Low Temperature
Characteristics
At 120Hz, impedance ( Z ) ratio between the
the values given below.
Rated Voltage ( V )
Z ( 25 C ) / Z ( 20 C )
160 - 400
4
420 - 450
8
25 C value and
20 C value shall not exceed
Ripple Current Multipliers
Refer to Section 4 of the
Mini-Glossary for explanation
of Ripple Current Multipliers.
Ambient Temperature ( C )
45 C
2.64
60 C
2.23
70 C
2.12
85 C
1.73
105 C
1.00
Frequency (Hz )
DC Rated Voltage
6.3 -50V
63 - 100V
160 - 250V
315 - 450V
50Hz
0.95
0.92
0.81
0.77
120Hz
1.00
1.00
1.00
1.00
300Hz
1.03
1.07
1.17
1.16
1kHz
1.05
1.13
1.32
1.30
10kHz
1.08
1.19
1.45
1.41
100kHz
1.08
1.20
1.50
1.43
Load Life
The following specifications shall be satisfied when the capacitors are restored to 20 C after
subjecting them to the DC rated voltage for the specified test time at 105 C with the rated
ripple current applied. The sum of DC voltage and peak AC voltage must not exceed the full
rated voltage of the capacitors.
Case Diameter
Ø
20mm
Ø
22mm & above
Test Time
2,000 hours
3,000 hours
Capacitance change:
≤
20% of initial measured value
Tan ( DF )
:
≤
200% of initial specified value
Leakage current
:
≤
initial specified value
Shelf Life
The following specifications shall be satisfied when the capacitors are restored to 20 C after
exposing them for 1,000 hours at 105 C without voltage applied. The rated voltage shall be
applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than
48 hours before the measurements.
Capacitance change:
≤
20% of initial measured value
Tan ( DF )
:
≤
150% of initial specified value
Leakage current
:
≤
initial specified value
Others
Satisfies characteristic W of JIS C5141
SNAP MOUNT-105 C
KMM
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
351
KMM Series

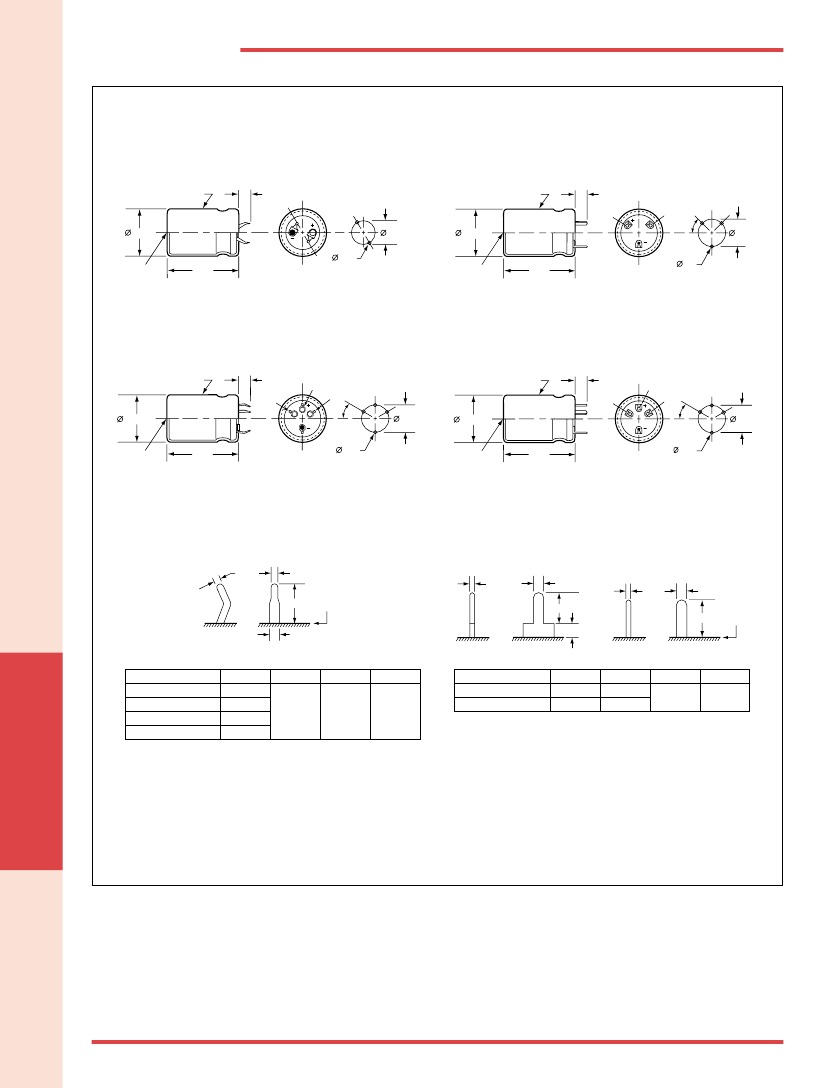

Diagram of Dimensions
Snap Mount
Types VS-T2
Ø
20~
Ø
35;
VN-T2
Ø
22~
Ø
35
See
Pin
Detail
Unit: mm
Type VR-T3
Ø
30
See
Pin
Detail
A
B
*
PVC Sleeve
PC board pin-out
PVC Sleeve
PC board pin-out
45°
15
D 1
2-2x
10
D30 1
**
Vent
L
2
**
Vent
L
2
2-3x
Types VN-T4
Ø
35
See
Pin
Detail
A
*
D35 1
Type VR-T4
Ø
35
See
Pin
Detail
A
*
30°
22.5
D35 1
PVC Sleeve
B
C
*
PC board pin-out
PVC Sleeve
B
C
*
PC board pin-out
30°
22.5
**
Vent
L
2
2-4x
**
Vent
L
2
2-4x
VS & VN Pin Dimensions
VR Pin Dimensions
Standoff Pin (Standard)
***
Straight Pin
W
2
W
1
W
1
P
Edge
of can
W
P
P
W
P
1
W
1
W
Edge
of can
SNAP MOUNT-105 C
KMM
Type
VS -T2
Ø
20 -
Ø
30
VS -T2
Ø
35
VN-T2
Ø
20 -
Ø
35
VN-T4
Ø
35
P
4.0
3.5
5.8
5.8
0.5
0.5
1.0
1.0
W
W
1
W
2
Type
VR
(Standoff Pin)
VR
(Straight Pin)
1.5
0.2
1.0
1.0
P
3.75 1.0
5.50 1.0
P
1
2.0 max.
—
W
1.5
0.1
W
1
0.7
CAUTION:
*
Use the blank terminals for mechanical support only. The blank terminals must not be connected to a solder trace on the
PC board, but be electrically isolated from the negative or positive terminal.
**
Vent may be located either on the bottom or side of the can.
***
Please add an “H” to the end of the part number for standoffs.
352
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
KMM Series
Part Numbering System for KMM Series
KMM
450
VN
331
M
35X40
When ordering, always specify complete catalog number for KMM Series.
T2
Terminal Code: T2 = 2 - Pin Snap-in (Standard ).
Case Code: See Case Sizes in Tables.
Capacitance Tolerance: M = 20%
Capacitance Value: Expressed in Microfarads. The first two digits are
significant figures, and the third digit indicates the number of zeros
for capacitance of 100 F or more. R indicates the decimal point for
capacitance less than 100 F (e.g. R33 = .33 F; 3R3 = 3.3 F;
33R = 33 F; 331 = 330 F; 332 = 3,300 F; 333 = 33,000 F ).
Lead Configuration: VN or VS = Snap-in Terminals.
VR = Straight Pins with or without Standoffs.
See diagrams for terminal options.
DC Rated Voltage: Expressed in Volts (e.g. 450 = 450WVDC).
Series Name: Indicates Basic Capacitor Design.
Standard Voltage Ratings - VS & VN/Snap Mount
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Maximum ESR
(
Ω
) at
20 C, 120Hz
Maximum
Ripple Current
(A rms) at
105 C, 120Hz
0.68
0.85
1.1
1.2
1.3
1.34
1.5
1.7
0.81
1.2
1.3
1.55
1.67
1.82
2.04
2.25
0.98
1.02
1.26
1.55
1.67
1.82
2.04
2.25
2.49
2.97
1.25
1.3
1.67
1.82
2.04
2.25
2.49
2.84
3.32
3.86
160 Volts
200 Volts Surge
180
220
270
330
390
470
560
680
220
330
390
470
560
680
820
1,000
270
330
390
470
560
680
820
1,000
1,200
1,500
390
470
560
680
820
1,000
1,200
1,500
1,800
2,200
KMM160VS181M20X20T2
KMM160VS221M20X25T2
KMM160VS271M20X25T2
KMM160VS331M20X30T2
KMM160VS391M20X30T2
KMM160VS471M20X35T2
KMM160VS561M20X40T2
KMM160VS681M20X45T2
KMM160VN221M22X20T2
KMM160VN331M22X25T2
KMM160VN391M22X30T2
KMM160VN471M22X30T2
KMM160VN561M22X35T2
KMM160VN681M22X40T2
KMM160VN821M22X45T2
KMM160VN102M22X50T2
KMM160VN271M25X20T2
KMM160VN331M25X20T2
KMM160VN391M25X25T2
KMM160VN471M25X25T2
KMM160VN561M25X30T2
KMM160VN681M25X30T2
KMM160VN821M25X35T2
KMM160VN102M25X40T2
KMM160VN122M25X45T2
KMM160VN152M25X60T2
KMM160VN391M30X20T2
KMM160VN471M30X20T2
KMM160VN561M30X25T2
KMM160VN681M30X25T2
KMM160VN821M30X30T2
KMM160VN102M30X30T2
KMM160VN122M30X35T2
KMM160VN152M30X40T2
KMM160VN182M30X45T2
KMM160VN222M30X60T2
20
20
20
20
20
20
20
20
22
22
22
22
22
22
22
22
25.4
25.4
25.4
25.4
25.4
25.4
25.4
25.4
25.4
25.4
30
30
30
30
30
30
30
30
30
30
20
25
25
30
30
35
40
45
20
25
30
30
35
40
45
50
20
20
25
25
30
30
35
40
45
60
20
20
25
25
30
30
35
40
45
60
1.381
1.13
0.921
0.753
0.638
0.529
0.444
0.366
1.13
0.753
0.638
0.529
0.444
0.366
0.303
0.249
0.921
0.753
0.638
0.529
0.444
0.366
0.303
0.249
0.207
0.166
0.638
0.529
0.444
0.366
0.303
0.249
0.207
0.166
0.138
0.113
SNAP MOUNT-105 C
KMM
*
The case sizes in table are with no sleeve, refer to diagrams for case sizes with sleeve.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
353
KMM Series
Standard Voltage Ratings - VS & VN/Snap Mount
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Maximum ESR
(
Ω
) at
20 C, 120Hz
Maximum
Ripple Current
(A rms) at
105 C, 120Hz
1.46
1.51
2.04
2.25
2.49
2.84
3.0
3.5
4.0
4.63
0.62
0.77
1.0
1.1
1.2
1.3
1.4
1.55
1.75
0.8
1.0
1.2
1.35
1.5
1.67
1.78
2.04
0.9
0.95
1.16
1.35
1.5
1.67
1.78
2.04
2.3
2.55
1.15
1.2
1.5
1.67
1.78
2.04
2.3
2.55
2.9
3.49
1.36
1.43
1.83
2.04
2.3
2.55
2.9
3.3
3.65
4.19
160 Volts
200 Volts Surge
560
680
820
1,000
1,200
1,500
1,800
2,200
2,700
3,300
150
180
220
270
330
390
470
560
680
180
270
330
390
470
560
680
820
220
270
330
390
470
560
680
820
1,000
1,200
330
390
470
560
680
820
1,000
1,200
1,500
1,800
470
560
680
820
1,000
1,200
1,500
1,800
2,200
2,700
KMM160VN561M35X20T2
KMM160VN681M35X20T2
KMM160VN821M35X25T2
KMM160VN102M35X25T2
KMM160VN122M35X30T2
KMM160VN152M35X35T2
KMM160VN182M35X35T2
KMM160VN222M35X45T2
KMM160VN272M35X50T2
KMM160VN332M35X60T2
KMM180VS151M20X20T2
KMM180VS181M20X25T2
KMM180VS221M20X25T2
KMM180VS271M20X30T2
KMM180VS331M20X30T2
KMM180VS391M20X35T2
KMM180VS471M20X40T2
KMM180VS561M20X45T2
KMM180VS681M20X50T2
KMM180VN181M22X20T2
KMM180VN271M22X25T2
KMM180VN331M22X30T2
KMM180VN391M22X30T2
KMM180VN471M22X35T2
KMM180VN561M22X40T2
KMM180VN681M22X45T2
KMM180VN821M22X50T2
KMM180VN221M25X20T2
KMM180VN271M25X20T2
KMM180VN331M25X25T2
KMM180VN391M25X25T2
KMM180VN471M25X30T2
KMM180VN561M25X30T2
KMM180VN681M25X35T2
KMM180VN821M25X40T2
KMM180VN102M25X45T2
KMM180VN122M25X50T2
KMM180VN331M30X20T2
KMM180VN391M30X20T2
KMM180VN471M30X25T2
KMM180VN561M30X25T2
KMM180VN681M30X30T2
KMM180VN821M30X30T2
KMM180VN102M30X35T2
KMM180VN122M30X40T2
KMM180VN152M30X45T2
KMM180VN182M30X60T2
KMM180VN471M35X20T2
KMM180VN561M35X20T2
KMM180VN681M35X25T2
KMM180VN821M35X25T2
KMM180VN102M35X30T2
KMM180VN122M35X30T2
KMM180VN152M35X35T2
KMM180VN182M35X40T2
KMM180VN222M35X50T2
KMM180VN273M35X60T2
35
35
35
35
35
35
35
35
35
35
20
20
20
20
20
20
20
20
20
22
22
22
22
22
22
22
22
25.4
25.4
25.4
25.4
25.4
25.4
25.4
25.4
25.4
25.4
30
30
30
30
30
30
30
30
30
30
35
35
35
35
35
35
35
35
35
35
20
20
25
25
30
35
35
45
50
60
20
25
25
30
30
35
40
45
50
20
25
30
30
35
40
45
50
20
20
25
25
30
30
35
40
45
50
20
20
25
25
30
30
35
40
45
60
20
20
25
25
30
30
35
40
50
60
0.444
0.366
0.303
0.249
0.207
0.166
0.138
0.113
0.092
0.075
1.658
1.381
1.13
0.921
0.753
0.638
0.529
0.444
0.366
1.381
0.921
0.753
0.638
0.529
0.444
0.366
0.303
1.13
0.921
0.753
0.638
0.529
0.444
0.366
0.303
0.249
0.207
0.753
0.638
0.529
0.444
0.366
0.303
0.249
0.207
0.166
0.138
0.529
0.444
0.366
0.303
0.249
0.207
0.166
0.138
0.113
0.092
180 Volts
225 Volts Surge
SNAP MOUNT-105 C
KMM
*
The case sizes in table are with no sleeve, refer to diagrams for case sizes with sleeve.
354
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
京公网安备 11010802033920号
EEWORLD
