41214-006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 41214-006

41214-006: DescriptionVariable Attenuator, 200MHz Min, 3000MHz Max, 5.5dB Insertion Loss-Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size803KB，1 Pages; ManufacturerDow-Key Microwave Corporation

Download Datasheet Parametric Compare View All

41214-006 Overview

Variable Attenuator, 200MHz Min, 3000MHz Max, 5.5dB Insertion Loss-Max,

41214-006 Parametric

Parameter Name	Attribute value
Maker	Dow-Key Microwave Corporation
Reach Compliance Code	unknown
Other features	SMA-F
Nominal attenuation	63 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	20 dBm
Maximum insertion loss	5.5 dB
Maximum operating frequency	3000 MHz
Minimum operating frequency	200 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
RF/Microwave Device Types	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	1.8

Preview

Download Datasheet

View All

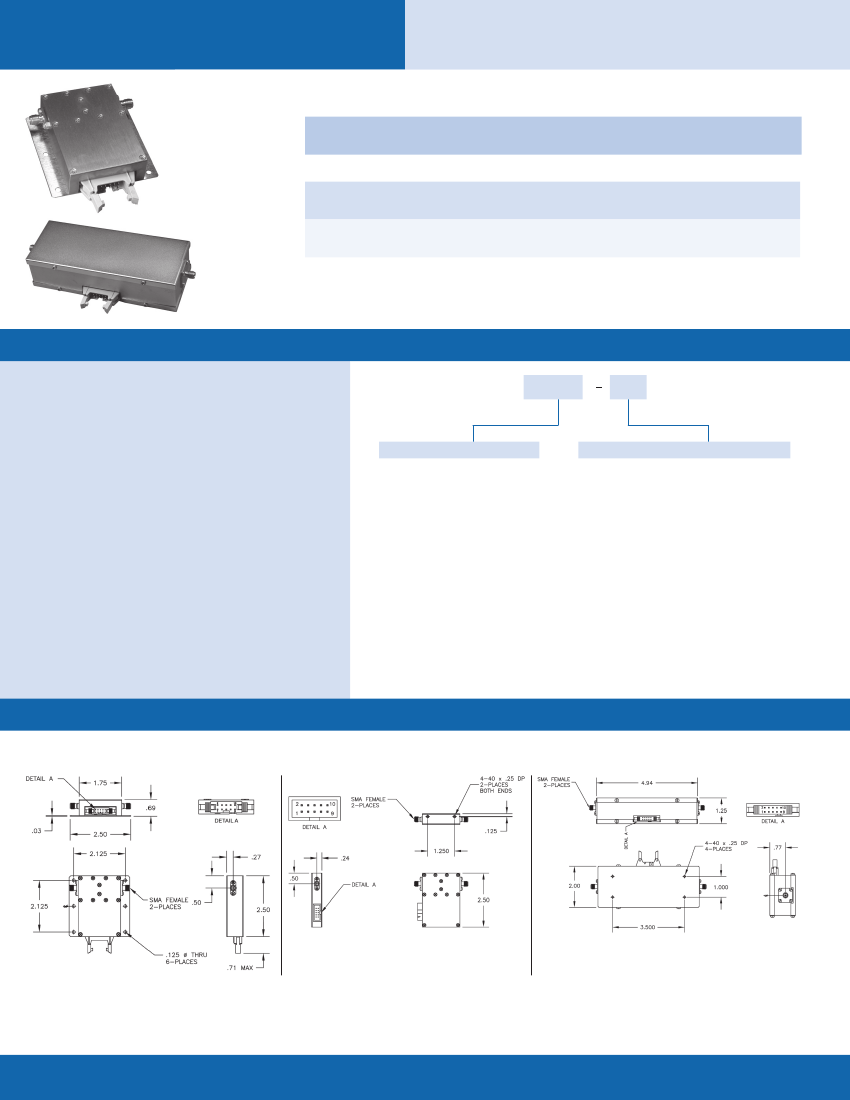

Programmable Attenuators

41214-005 Shown

41214 | SMA

RF Characteristics

• Solid State

• 30-3000 MHz

– 0-127 dB in

1 db Steps

• 200-6000 MHz

– 0-63 dB in

1 db Steps

Product

41214-005

41214-006

41214-007

Frequency

GHz

200-6000

200-800

800-3000

30-2000

2000-3000

VSWR

(max)

2.3

1.8

1.5

1.6

Ins. Loss

dB (max)

7.5

5.5

6.0

8.0

Attenuation

Range (dB)

0-63

0-127

Input Power

dBm (CW)

+20

+15

Note: Consult with factory for more data

41214-007 Shown

Specifications

Operating Voltage

41214-005

-5 Vdc (-4.5 to -5.5 Vdc)

41214-006

5 Vdc (-4.5 to -5.5 Vdc)

15 Vdc (

12 to 15 Vdc)

41214-007

Coil Current (max. @ nom. Vdc & 25°C)*:

41214-005/006

-5 Vdc/5 Vdc 10 mA

15 Vdc

80 mA

41214-007

Switching Time:

41214-005/006

300 nS

41214-007

80 µS

Attenuation Steps:

41214-005/006

1, 2, 4, 8, 16, and 32

41214-007

1, 2, 4, 8, 16, 32, and 64

Control Logic (six lines):

TTL Low (for Thru Path)

TTL High (for Attenuation)

Temperature:

Operating: 0ºC to +70ºC

Storage: -40ºC to +85ºC

Impedance:

50 Ohm

Part Number Selector

41214

005

Family

Options

41214 = Solid State Programmable

Attenuator

005 = -5Vdc, 0-63 dB in 1 db Steps, SMA

Connector, and 200 – 6000 MHz

006 = +5Vdc, 0-63 dB in 1 db Steps, SMA

Connector and 200 – 3000 MHz

007 = ±15 Vdc, 0-127 dB in 1 db Steps, SMA

Connector and 200 – 6000 MHz

Mechanical

41214-005 Shown

41214-006 Shown

41214-007 Shown

6-2

Dow-Key Microwave • www.dowkey.com • 800.266.3695

AS9100/ISO-9001: 2000 Certified
