426-43-236-41-003100 datasheet, PDF

Datasheet> All Categories > The connector> socket> 426-43-236-41-003100

426-43-236-41-003100: DescriptionIC Socket, DIP36, 36 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size252KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

426-43-236-41-003100 Overview

IC Socket, DIP36, 36 Contact(s), ROHS COMPLIANT

426-43-236-41-003100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin (Sn)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP36
JESD-609 code	e3
Number of contacts	36

Preview

Download Datasheet

View All

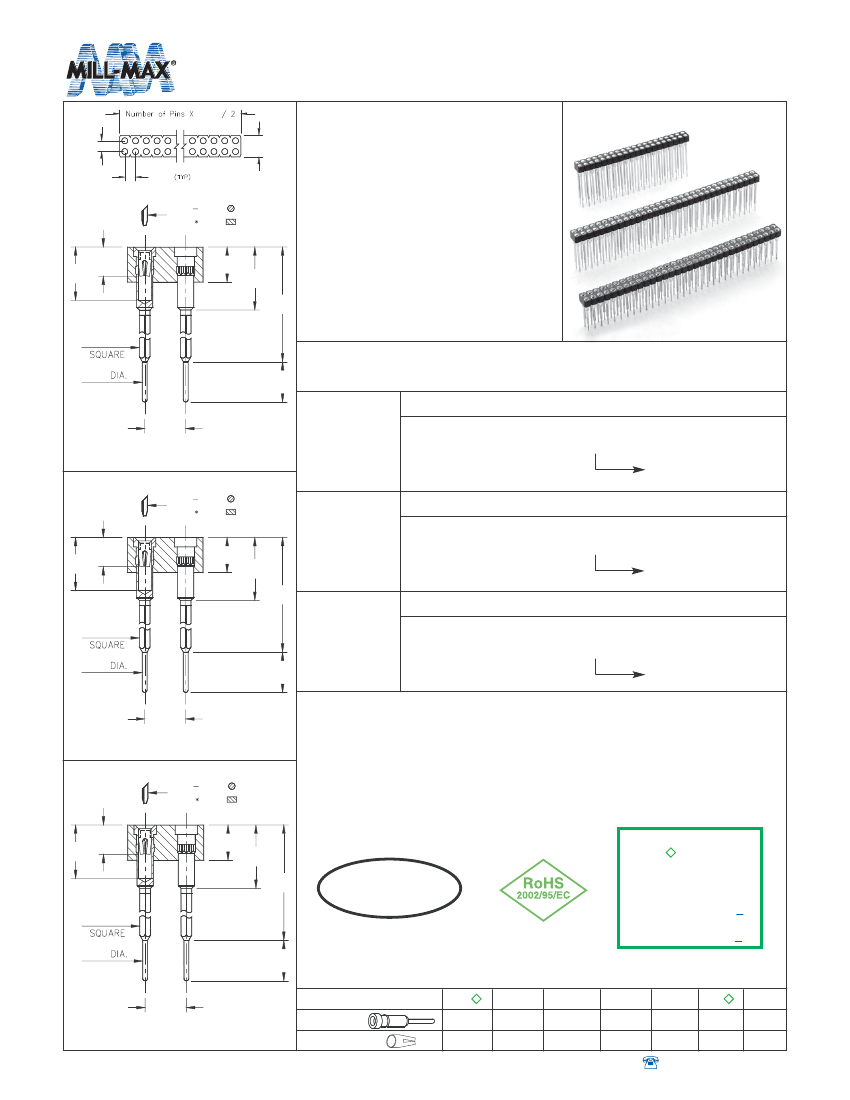

SINGLE-IN-LINE SOCKETS

Wrapost with Solder Tail

Double Row

2,54

0,38

0,25

0,64

0,46

5,08

Series 426

●

2,36

4,11

2,79

4,9

10,8

Wrapost/ solder tail combination for

interconnect purposes: M-M# 2601,

2602 or 2603 pin receptacles. See

page 163 for details.

Hi-Rel, 4-finger #30 BeCu contact is

rated at 3 amps. See page 208 for

details.

0,64

0,46

3,2

Ordering Information

Series 426...001

1 Level Wrapost

2,54

Fig. 1

0,38

0,25

0,64

0,46

Fig. 1

426-XX-2_ _-41-001000

Specify # of pins

Series 426...002

02-64

2 Level Wrapost

2,36

4,11

2,79

4,9

13,79

Fig. 2

426-XX-2_ _-41-002000

Specify # of pins

Series 426...003

02-64

3 Level Wrapost

0,64

Fig. 3

3,2

426-XX-2_ _-41-003000

Specify # of pins

02-64

0,46

2,54

Fig. 2

0,38

0,25

0,64

0,46

2,36

4,11

2,79

4,9

16,79

XX=Plating Code

See Below

0,64

For RoHS compliance,

select



plating code.

For the all gold option

(XX=13) also change

part number from

426-XX-2XX-41-00X000

426-13-2XX-41-00X100

0,46

3,2

2,54

SPECIFY PLATING CODE XX=



0,76µm Au

10µ” Au



Sleeve (Pin)

Contact (Clip)

0,25µm Au

200µ” Sn/Pb

5,08µm Sn/Pb

200µ” Sn/Pb

0,76µm Au

200µ” Sn/Pb

200µ” Sn

5,08µm Sn

200µ” Sn

10µ” Au

0,76µm Au

200µ” Sn

Fig. 3

w w w. m i l l - m a x . c o m



516-922-6000
