54126DMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54126DMQB

54126DMQB: DescriptionBus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,; Categorylogic logic; File Size68KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

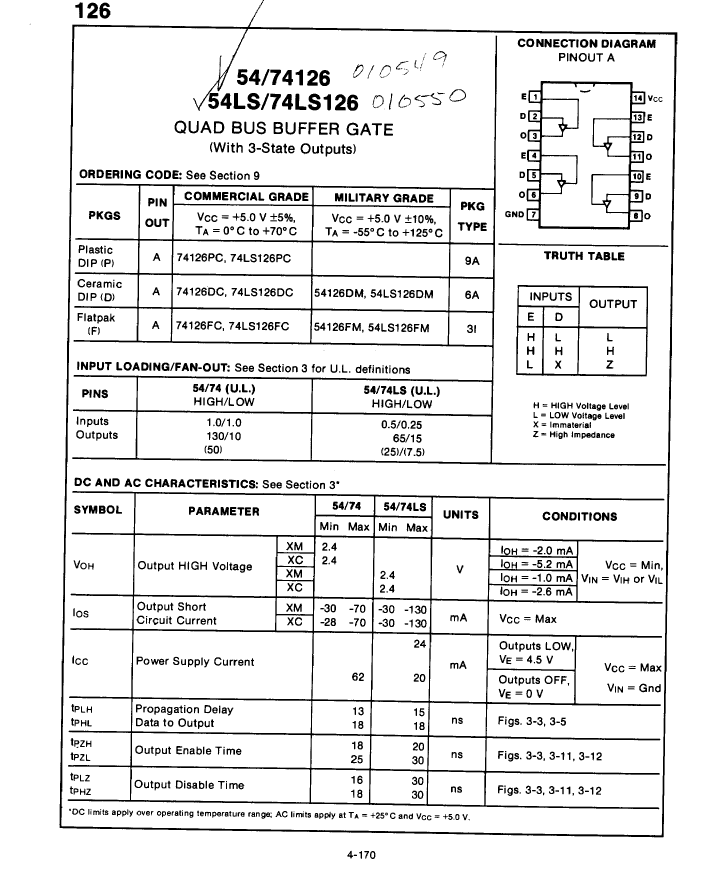

54126DMQB Overview

Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,

54126DMQB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP14,.3
Reach Compliance Code	compliant
Control type	ENABLE HIGH
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
Humidity sensitivity level	2A
Number of digits	4
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30

Preview

Download Datasheet

View All

54126DMQB Related Products

	54126DMQB	74126DCQR	74126DCQM	74126FCQR	74126FCQM	74126PCQM	74126PCQR	54126FMQB
Description	Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDFP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDFP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, PDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, PDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDFP14,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DFP, FL14,.3	DFP, FL14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DFP, FL14,.3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Control type	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH	ENABLE HIGH
JESD-30 code	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDFP-F14	R-XDFP-F14	R-PDIP-T14	R-PDIP-T14	R-XDFP-F14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Humidity sensitivity level	2A	2A	2A	2A	2A	2A	2A	2A
Number of digits	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	125 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	DFP	DFP	DIP	DIP	DFP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	FL14,.3	FL14,.3	DIP14,.3	DIP14,.3	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK	IN-LINE	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	250	250	250	250	250	250	250	250
surface mount	NO	NO	NO	YES	YES	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30	30	30
Certification status	Not Qualified	-	Not Qualified	-	Not Qualified	Not Qualified	-	Not Qualified
Base Number Matches	-	1	1	1	1	1	1	-
