LFXTAL055544BULK datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> LFXTAL055544BULK

Preview

LFXTAL055544BULK: DescriptionParallel - Fundamental Quartz Crystal, 18MHz Nom; CategoryPassive components Crystal/resonator; File Size138KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL055544BULK Overview

Parallel - Fundamental Quartz Crystal, 18MHz Nom

LFXTAL055544BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
Reach Compliance Code	compliant
Other features	AEC-Q200; BULK
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	50 µW
frequency stability	0.005%
frequency tolerance	15 ppm
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	18 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
physical size	L3.2XB2.5XH0.8 (mm)/L0.126XB0.098XH0.031 (inch)
Series resistance	80 Ω
surface mount	YES

Preview

Download Datasheet

View All

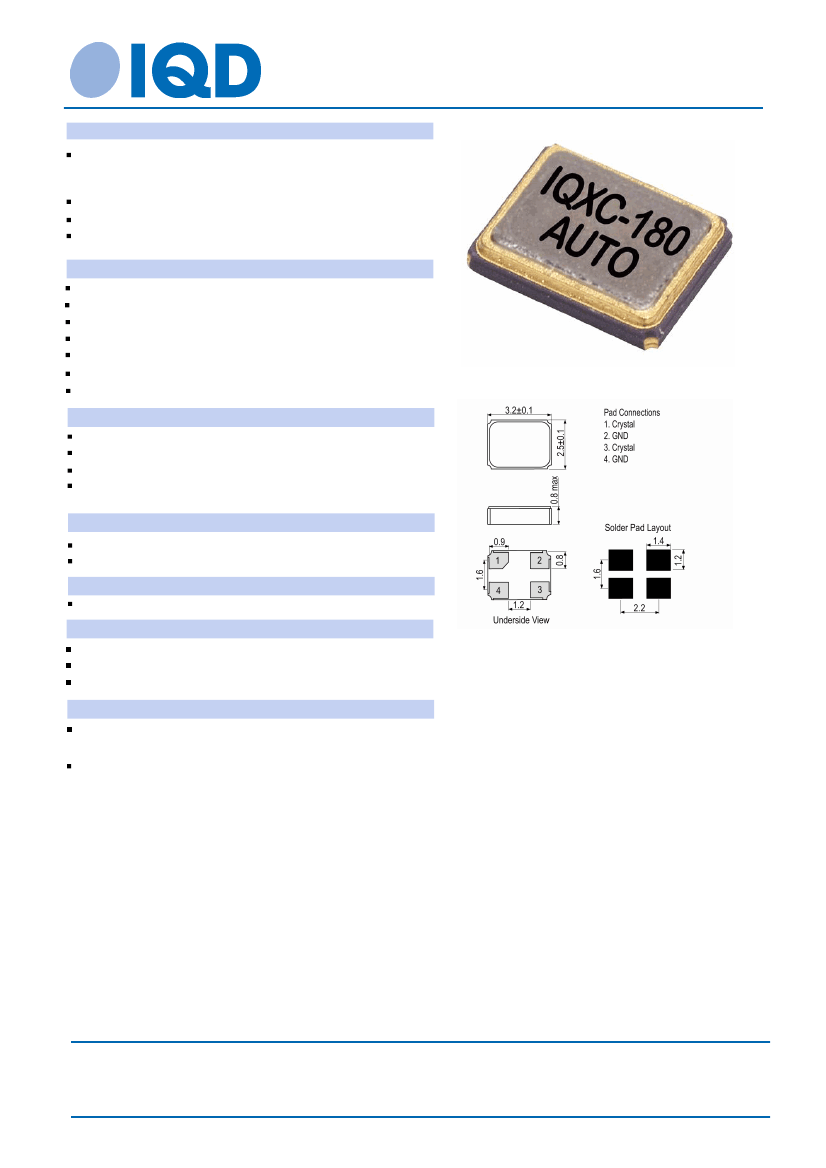

Crystal Specification

Part No. + Packaging:

LFXTAL055544Bulk

Description

Ceramic package with a hermetically seam sealed metal lid

suitable for automotive applications. Qualified to AEC-Q200 and

available with TS16949 release.

4 pad

Model

Model Issue number

Frequency Parameters

IQXC-180 AUTO

2

Frequency

Frequency Tolerance

Tolerance Condition

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

18.0MHz

±15.00ppm

@25°C ±2°C

±50.00ppm

-40.00 to 125.00°C

Fundamental

±5ppm max per year @ 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

8.00pF

7pF max

50µW standard, 200µW max

80.00Ω max

Storage Temperature Range: –45°C to +130°C

Qualified to AEC-Q200

Manufacturing Details

Maximum Process Temperature: 260°C (10secs max)

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1
