5504118-3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> 5504118-3

Preview

5504118-3: DescriptionCONNECTOR ACCESSORY; CategoryThe connector Connector bracket; File Size364KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5504118-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5504118-3	-	-	View	Buy Now

5504118-3 Overview

CONNECTOR ACCESSORY

5504118-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	5504118

Preview

Download Datasheet

View All

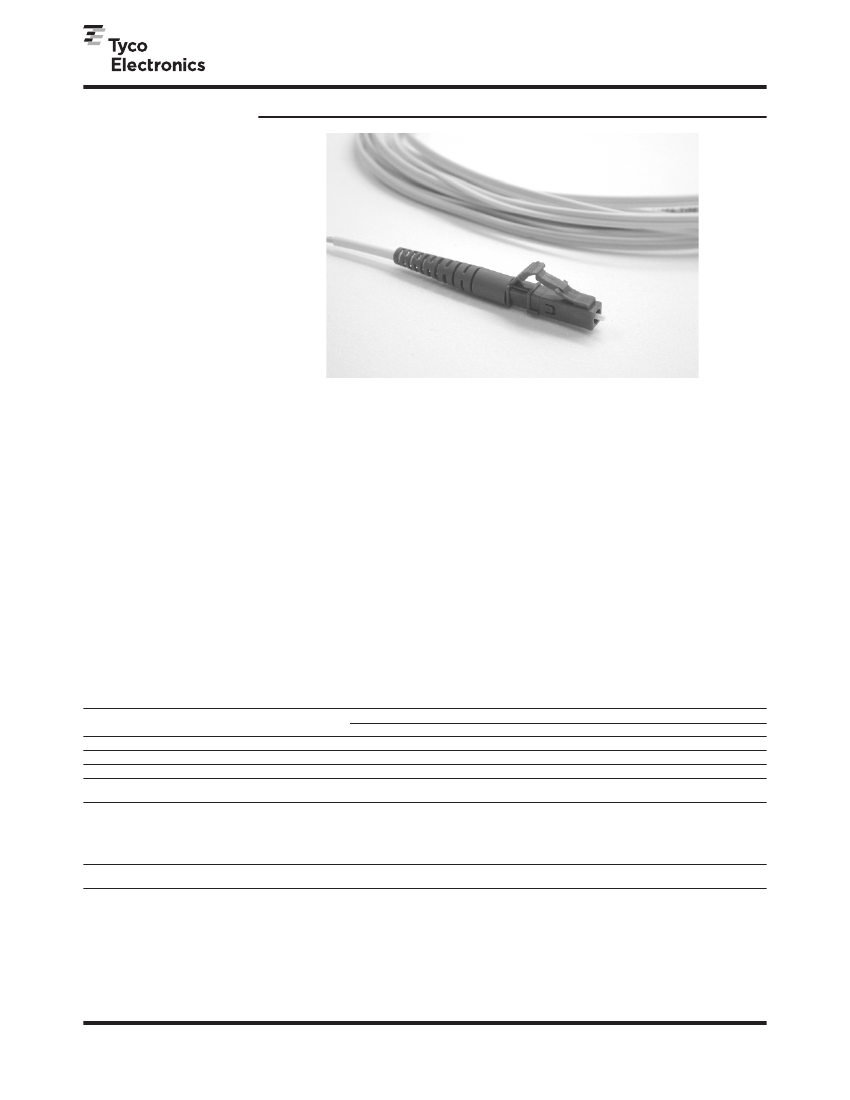

Pluggable Input / Output Solutions

LC Optical Connectors

One-Piece LC Connector

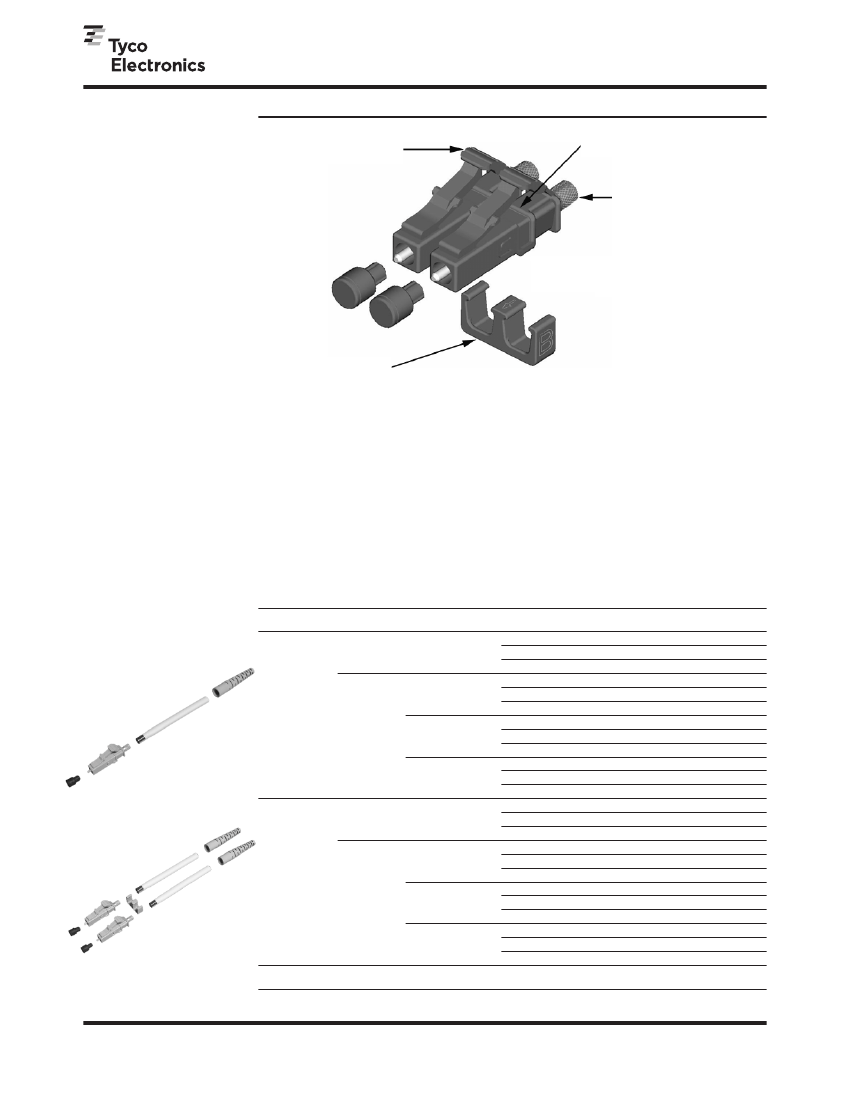

Product Facts

I

Widened Thumb Latch

Universal One-Piece

Connector Body

Singlemode Telecordia

GR-326 tested (Report

#501-652)

Multimode TIA/EIA 568-B.3

tested

Singlemode and Multimode

are compatible with both

anaerobic adhesives and

heat cure epoxy adhesives

Universal Connector Body

I

Common body for simplex

or duplex

I

Common body for jumper

or buffer applications

I

Fewer parts to inventory

Duplex Clip

I

Field installable

I

Makes simplex

assemblies duplex

I

Works to correct polarity

errors

I

Used for both jumpers

and buffered fiber

applications

One-Piece Body

I

Improved rigidity

I

Improved side-load

strength

Diamond Knurled Crimp Body

I

Duplex Clip

I

Color coded to comply

with 568 C

I

Aqua for 50/125 laser

optimized

I

Black for standard 50/125

I

Beige for 62.5/125

I

Blue for singlemode

I

Widened Thumb Latch

I

Increased hit area

I

Increased bend strength

I

Ramped front latch for

snag resistance

Diamond Knurled Crimp Body

I

Increased tensile proof

strength

I

Identical to

Tyco Electronics’

SC/FC design

Performance Characteristics

Insertion Loss

— 0.2 dB Typical

Reflectance

— -55 dB Typical

Operating Temperature

—

-40°C to +75°C

Durability

— 500 Cycles

I

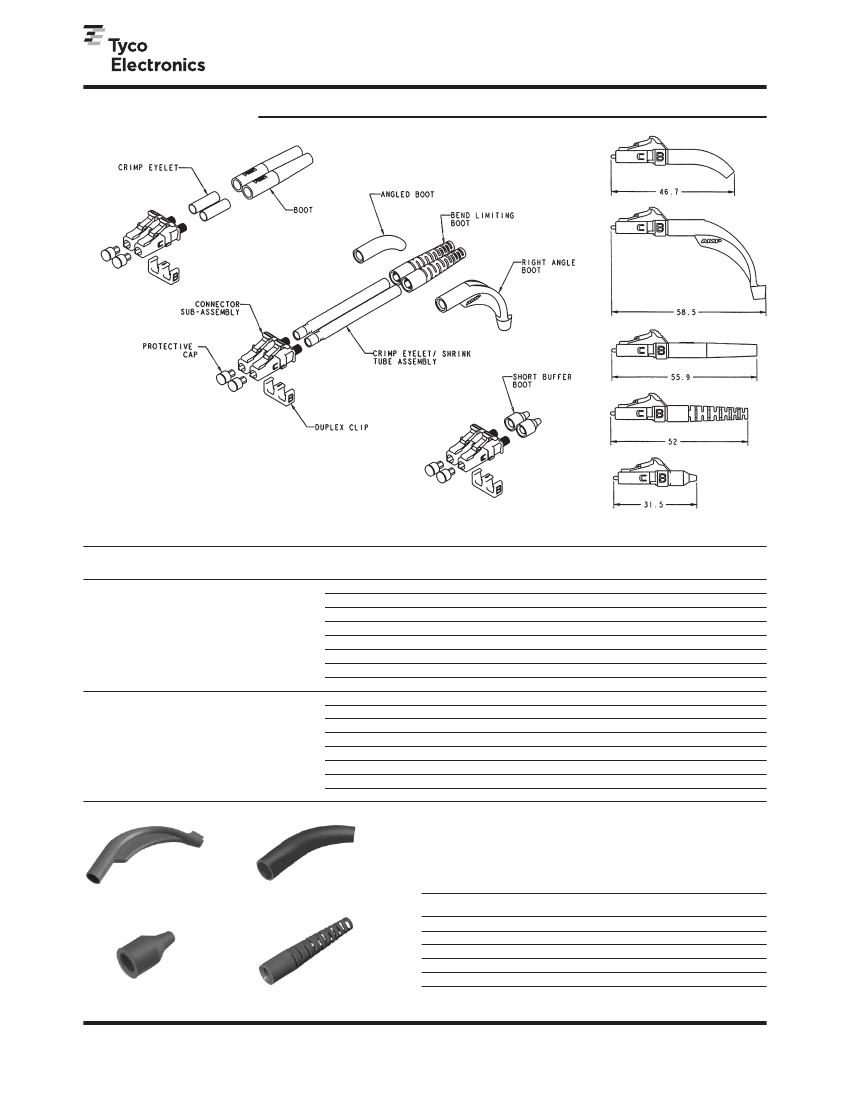

LC Connector Kits

Description

Fiber Type

Singlemode

Housing

Color

Blue

Boot

Color

Blue

Used with

900 µm Buffered

1.6-2.0 mm Jacketed

3.0 mm Jacketed

900 µm Buffered

1.6-2.0 mm Jacketed

3.0 mm Jacketed

900 µm Buffered

1.6-2.0 mm Jacketed

3.0 mm Jacketed

900 µm Buffered

1.6-2.0 mm Jacketed

3.0 mm Jacketed

900 µm Buffered

1.6-2.0 mm Jacketed

3.0 mm Jacketed

900 µm Buffered

1.6-2.0 mm Jacketed

3.0 mm Jacketed

900 µm Buffered

1.6-2.0 mm Jacketed

3.0 mm Jacketed

900 µm Buffered

1.6-2.0 mm Jacketed

3.0 mm Jacketed

—

Individual Pack

Part Number

1918384-1

1918266-1

1918374-1

1918385-3

1918267-3

1918375-3

1918385-4

1918267-4

1918375-4

1918385-1

1918267-1

1918375-1

1918387-1

1918372-1

1918376-1

1918388-3

1918373-3

1918377-3

1918388-4

1918373-4

1918377-4

1918388-1

1918373-1

1918377-1

1754371-1

Bulk Pack

Part Number

1918384-2

1918266-2

1918374-2

1918385-5

1918267-5

1918375-5

1918385-6

1918267-6

1918375-6

1918385-2

1918267-2

1918375-2

1918387-2

1918372-2

1918376-2

1918388-5

1918373-5

1918377-5

1918388-6

1918373-6

1918377-6

1918388-2

1918373-2

1918377-2

—

Beige

Simplex

Multimode

Beige

Aqua

Black

Beige

Singlemode

Blue

Beige

Aqua

2.0

.6-

(1

n)

ow

sh

Duplex

Multimode

Beige

Black

Beige

Duplex Clip

For use with

Simplex Kits

Black

Beige

—

Note:

All part numbers are RoHS compliant.

17

Catalog 1773408-1

Revised 2-09

www.tycoelectronics.com

Dimensions are in millimeters

and inches unless otherwise

specified. Values in brackets

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-1106-0803

South America: 55-11-2103-6000

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-8706-080-208
