54LS27FM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS27FM

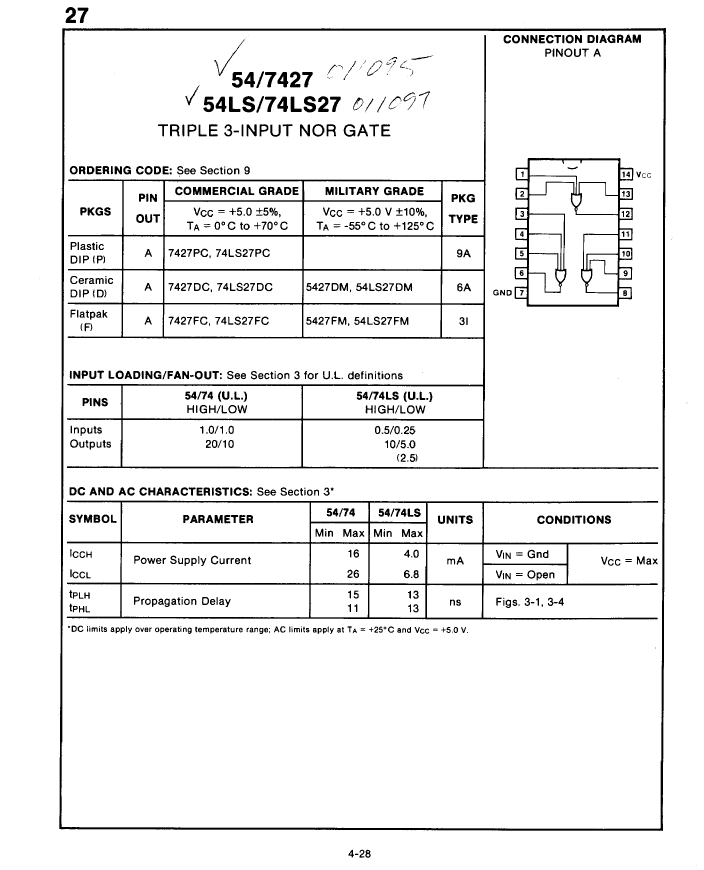

54LS27FM: DescriptionNOR Gate, TTL, CDFP14,; Categorylogic logic; File Size42KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS27FM Overview

NOR Gate, TTL, CDFP14,

54LS27FM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DFP, FL14,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDFP-F14
JESD-609 code	e0
Logic integrated circuit type	NOR GATE
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

54LS27FM Related Products

	54LS27FM	74LS27FC	54LS27DM	74LS27PC	74LS27DC	7427PC	7427FC	7427DC
Description	NOR Gate, TTL, CDFP14,	NOR Gate, TTL, CDFP14,	NOR Gate, TTL, CDIP14,	NOR Gate, LS Series, 3-Func, 3-Input, TTL, PDIP14, PLASTIC, DIP-14	NOR Gate, TTL, CDIP14,	NOR Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, PDIP14, PLASTIC, DIP-14	NOR Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, PDFP14, DFP-14	NOR Gate, TTL/H/L Series, 3-Func, 3-Input, TTL, CDIP14, CERAMIC, DIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	unknown	unknown	compliant	unknown	compliant	compliant
JESD-30 code	R-XDFP-F14	R-XDFP-F14	R-XDIP-T14	R-PDIP-T14	R-XDIP-T14	R-PDIP-T14	R-PDFP-F14	R-CDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE
Number of terminals	14	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	70 °C	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DFP	DIP	DIP	DIP	DIP	DFP	DIP
Encapsulate equivalent code	FL14,.3	FL14,.3	DIP14,.3	DIP14,.3	DIP14,.3	FL14,.3	FL14,.3	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	NO	NO	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
package instruction	DFP, FL14,.3	-	DIP, DIP14,.3	PLASTIC, DIP-14	DIP, DIP14,.3	DIP, FL14,.3	DFP, FL14,.3	DIP, FL14,.3
Is it lead-free?	-	Contains lead	-	-	Contains lead	Contains lead	Contains lead	Contains lead
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	250	250	250
Maximum time at peak reflow temperature	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	30	30	30
Base Number Matches	-	1	1	1	1	1	1	1
