SDA5530-561M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SDA5530-561M

SDA5530-561M: DescriptionGeneral Purpose Inductor, 560uH, 20%, 1 Element, Ferrite-Core, SMD, 2121, CHIP, 2121, ROHS COMPLIANT; CategoryPassive components inductor; File Size75KB，1 Pages; ManufacturerAssociated Components Technology Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

SDA5530-561M Overview

General Purpose Inductor, 560uH, 20%, 1 Element, Ferrite-Core, SMD, 2121, CHIP, 2121, ROHS COMPLIANT

SDA5530-561M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Associated Components Technology Inc.
package instruction	2121
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	2121
core material	FERRITE
DC Resistance	3.08 Ω
Nominal inductance(L)	560 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Maximum rated current	0.14 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	20%

Preview

Download Datasheet

View All

New Product

FEATURES

RoHS compliant

- High current handling capacity

- Ultra thin

- Low profile

- A perfect fit for various applications including

DC-DC converters, laptops and mobile devices.

ELECTRICAL SPECIFICATIONS

- Inductance range

- Test condition (1uH - 8.2uH)

- Test condition (10uH - 2.5mH)

- Test equipment

PHYSICAL SPECIFICATIONS

- Operating temp.

- Core

- Packaging

- Tape & reel spec.

Length A

Width B

Height C

Term width E

Term length F

-25ºC to +105ºC

Ferrite

2500 pieces per reel

12 mm embossed carrier

330 mm

5.3 max

3.0 max

5.9 + 0.4

1.6 ref

0.5 ref

1uH to 2.5mH

100kHz @ 0.25Vrms

1kHz @ 0.25Vrms

Quadtech 1750 LCR Meter

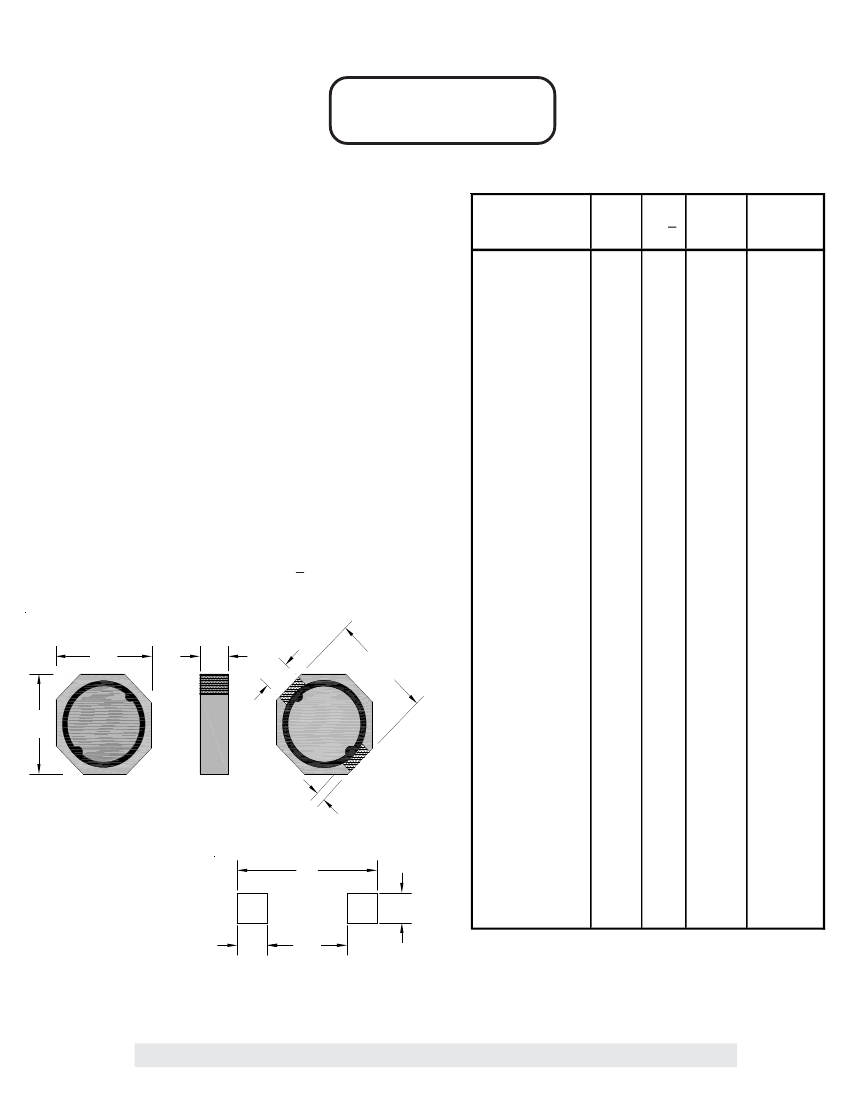

SURFACE MOUNT

SHIELDED POWER INDUCTOR

SERIES SDA5530

SPECIFICATIONS

Part Number

SDA5530-1R0M

SDA5530-1R1M

SDA5530-1R2M

SDA5530-2R0M

SDA5530-2R2M

SDA5530-3R3M

SDA5530-3R5M

SDA5530-4R7M

SDA5530-5R6M

SDA5530-6R8M

SDA5530-8R2M

SDA5530-100M

SDA5530-120M

SDA5530-150M

SDA5530-180M

SDA5530-220M

SDA5530-270M

SDA5530-330M

SDA5530-390M

SDA5530-470M

SDA5530-560M

SDA5530-680M

SDA5530-820M

SDA5530-101M

SDA5530-121M

SDA5530-151M

SDA5530-181M

SDA5530-221M

SDA5530-331M

SDA5530-391M

SDA5530-471M

SDA5530-561M

SDA5530-122M

SDA5530-152M

SDA5530-182M

SDA5530-222M

SDA5530-252M

L(uH)

1.0

1.1

1.2

2.0

2.2

3.3

3.5

4.7

5.6

6.8

8.2

100

120

150

180

220

330

390

470

560

1200

1500

1800

2200

2500

Tol

Dimensions in millimeters

T&R

Tape

Reel

Suggested PCB land pattern

H = 1.9

I = 0.9

J = 5.7

K = 3.9

DCR

Rated

(ohms) Current (A)

max

(Note 1)

0.015

4.00

0.020

3.87

0.022

3.50

0.027

2.50

0.029

1.90

0.034

2.36

0.040

1.95

0.045

1.87

0.052

1.60

0.068

1.51

0.084

1.38

0.090

1.33

0.120

1.06

0.142

1.05

0.192

0.90

0.208

0.86

0.222

0.75

0.257

0.72

0.320

0.64

0.352

0.62

0.459

0.53

0.525

0.51

0.770

0.48

0.801

0.43

0.850

0.34

1.10

0.26

1.19

0.24

1.53

0.20

2.03

0.19

3.00

0.16

3.50

0.15

3.08

0.14

8.50

0.07

10.00

0.065

13.15

0.062

19.00

0.050

20.00

0.045

Notes:

1. Based on

ΔL

30% max or

ΔT

of 40°C

max, whichever occurs first

2. All test data based on 25°C ambient. Part temperature (max ambient + temp rise) must not exceed 105°C under worst case operating conditions.

Circuit design, other components, PCB trace size and thickness, airflow and other cooling provisions all effect the part temperature.

Associated Components Technology / Phone 800-234-2645 / Fax 714-265-4810 / Website http://www.act1.com
