536524-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 536524-3

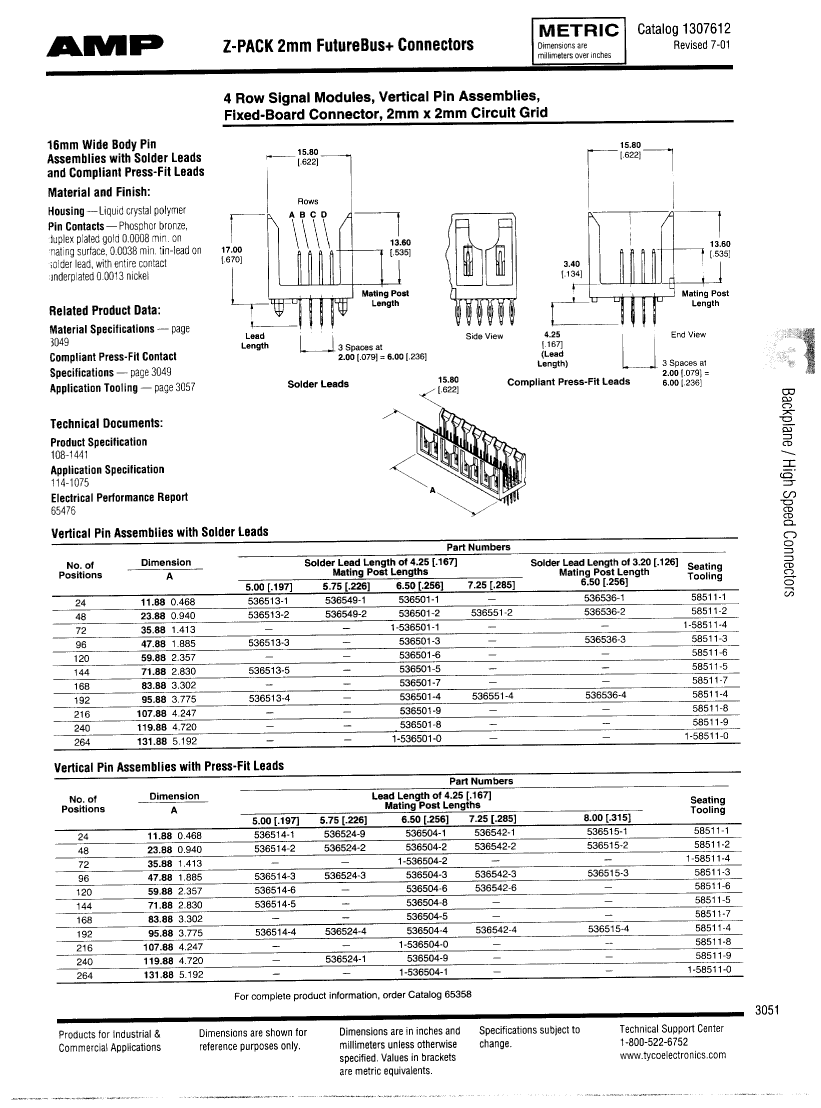

536524-3: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,96 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

536524-3 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,96 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL

536524-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
Other features	MATING POST LENGTH=0.226
body width	0.622 inch
subject depth	0.669 inch
body length	1.885 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Durability	250 Cycles
maximum insertion force	.695 N
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	536524
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.167 inch
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	96
Evacuation force-minimum value	.1112 N

Preview

Download Datasheet

View All

536524-3 Related Products

	536524-3	536514-5	536524-1	536551-4
Description	HEADER CONNECTOR,PCB MNT,RECEPT,96 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,144 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,240 CONTACTS,PIN,0.079 PITCH,COMPLIANT FIT TERMINAL	192 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	unknown	unknown	unknow
Other features	MATING POST LENGTH=0.226	MATING POST LENGTH=0.197	MATING POST LENGTH=0.226	Z-PACK
body width	0.622 inch	0.622 inch	0.622 inch	0.622 inch
subject depth	0.669 inch	0.669 inch	0.669 inch	0.669 inch
body length	1.885 inch	2.83 inch	4.72 inch	3.775 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Durability	250 Cycles	250 Cycles	250 Cycles	250 Cycles
maximum insertion force	.695 N	.695 N	.695 N	.695 N
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	536524	536514	536524	536551
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	4	4	4	4
Number of rows loaded	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.167 inch	0.167 inch	0.167 inch	0.167 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	SOLDER
Total number of contacts	96	144	240	192
Evacuation force-minimum value	.1112 N	.1112 N	.1112 N	.1112 N
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	-
