5962R9666301TEC datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> 5962R9666301TEC

5962R9666301TEC: DescriptionQUAD LINE DRIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size33KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Related ProductsFound13parts with similar functions to 5962R9666301TEC

Download Datasheet Parametric View All

5962R9666301TEC Overview

QUAD LINE DRIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16

5962R9666301TEC Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Differential output	YES
Number of drives	4
High level input current maximum value	0.000001 A
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	EIA-422
JESD-30 code	R-CDIP-T16
JESD-609 code	e4
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum output swing	2 V
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum receive delay
Filter level	MIL-PRF-38535
Maximum seat height	5.08 mm
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
maximum transmission delay	42 ns
width	7.62 mm

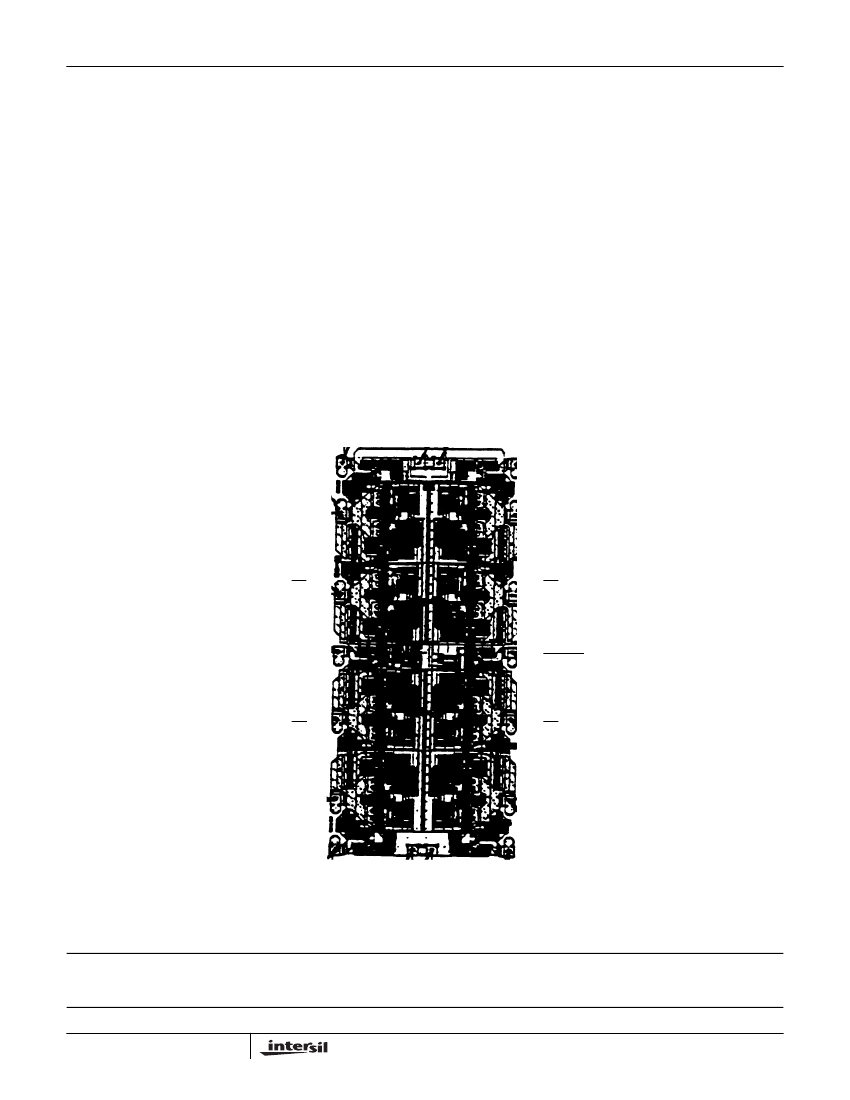

Preview

Download Datasheet

View All

HS-26C31RH-T

Data Sheet

July 1999

File Number

4591.1

Radiation Hardened

Quad Differential Line Driver

Intersil’s Satellite Applications Flow™ (SAF) devices are fully

tested and guaranteed to 100kRAD total dose. These QML

Class T devices are processed to a standard ﬂow intended

to meet the cost and shorter lead-time needs of large

volume satellite manufacturers, while maintaining a high

level of reliability.

The Intersil HS-26C31RH-T is a Quad Differential Line

Driver designed for digital data transmission over balanced

lines and meets the requirements of EIA Standard RS-422.

Radiation Hardened CMOS processing assures low power

consumption, high speed, and reliable operation in the most

severe radiation environments.

The HS-26C31RH-T accepts CMOS inputs and converts

them to RS-422 compatible outputs. This circuit uses special

outputs that enable the drivers to power down without

loading down the bus. Enable and disable pins allow several

devices to be connected to the same data source and

addressed independently.

Features

• QML Class T, Per MIL-PRF-38535

• Radiation Performance

- Gamma Dose . . . . . . . . . . . . . . . . . . . . 1 x 10

RAD(Si)

- SEU and SEL . . . . . . . . . . Immune to 100MeV/mg/cm

• EIA RS-422 Compatible Outputs (Except for IOS)

• CMOS Compatible Inputs

• High Impedance Outputs when Disabled or Powered

Down

• Low Power Dissipation 2.75mW Standby (Max)

• Single 5V Supply

• Low Output Impedance 10Ω or Less

• Full -55

C to +125

C Military Temperature Range

Pinouts

HS1-26C31RH-T (SBDIP), CDIP-T16

TOP VIEW

Speciﬁcations

Speciﬁcations for Rad Hard QML devices are controlled by

the Defense Supply Center in Columbus (DSCC). The SMD

numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the HS-1840ARH-T

are contained in SMD 5962-96663.

A “hot-link” is provided

from our website for downloading.

www.intersil.com/spacedefense/newsafclasst.asp

Intersil’s Quality Management Plan (QM Plan), listing all

Class T screening operations, is also available on our

website.

www.intersil.com/quality/manuals.asp

AIN

AIN 1

16 V

15 DIN

14 DO

13 DO

12 ENABLE

11 CO

10 CO

9 CIN

ENABLE 4

BO 5

BO 6

BIN 7

GND 8

HS9-26C31RH-T (FLATPACK), CDFP4-F16

TOP VIEW

DIN

ENABLE

CIN

Ordering Information

ORDERING

NUMBER

5962R9666301TEC

HS1-26C31RH/Proto

5962R9666301TXC

HS9-26C31RH/Proto

PART

NUMBER

HS1-26C31RH-T

HS1-26C31RH/Proto

HS9-26C31RH-T

HS9-26C31RH/Proto

TEMP.

RANGE

(

-55 to 125

ENABLE

BIN

GND

NOTE:

Minimum order quantity for -T is 150 units through

distribution, or 450 units direct.

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

www.intersil.com or 407-727-9207

Intersil Corporation 1999

Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.
