54FCT533E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54FCT533E

54FCT533E: DescriptionD Latch, 1-Func, 8-Bit, CMOS, CDFP20; Categorylogic logic; File Size317KB，4 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

54FCT533E Overview

D Latch, 1-Func, 8-Bit, CMOS, CDFP20

54FCT533E Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
package instruction	DFP, FL20,.3
Reach Compliance Code	not_compliant
JESD-30 code	R-XDFP-F20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	D LATCH
MaximumI(ol)	0.032 A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Prop。Delay @ Nom-Sup	12 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30

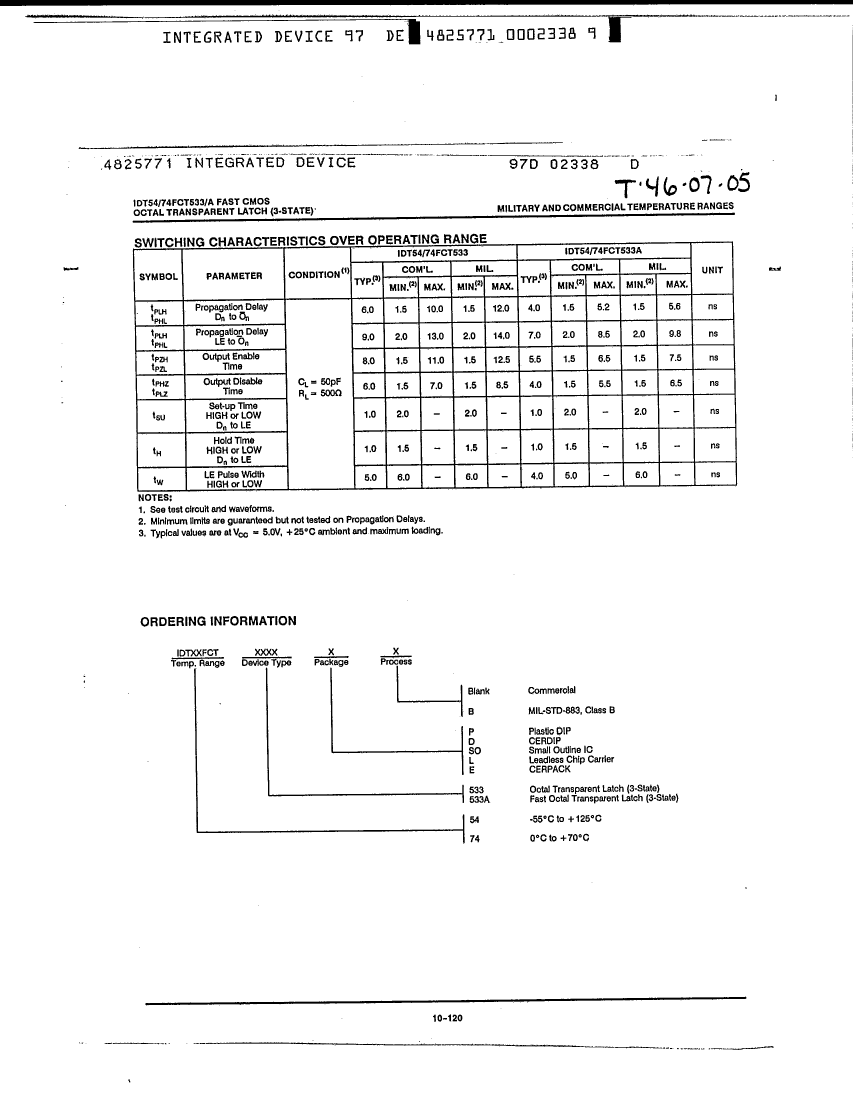

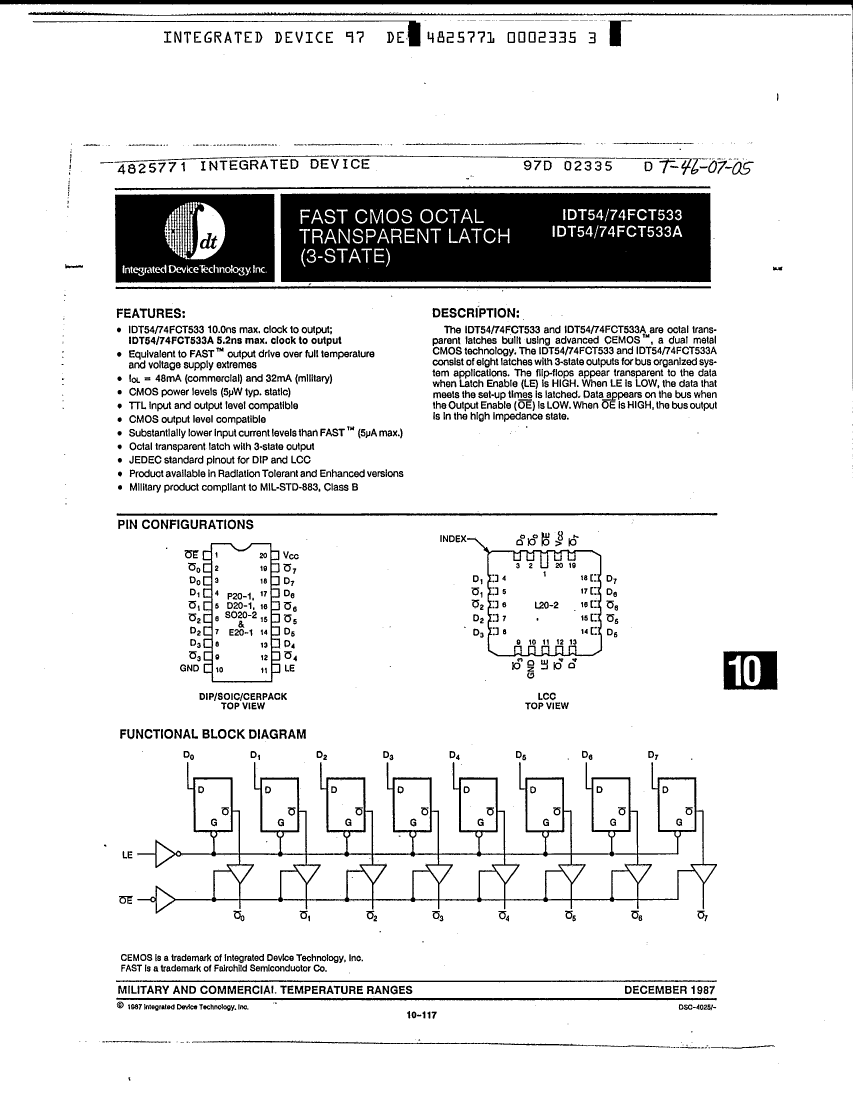

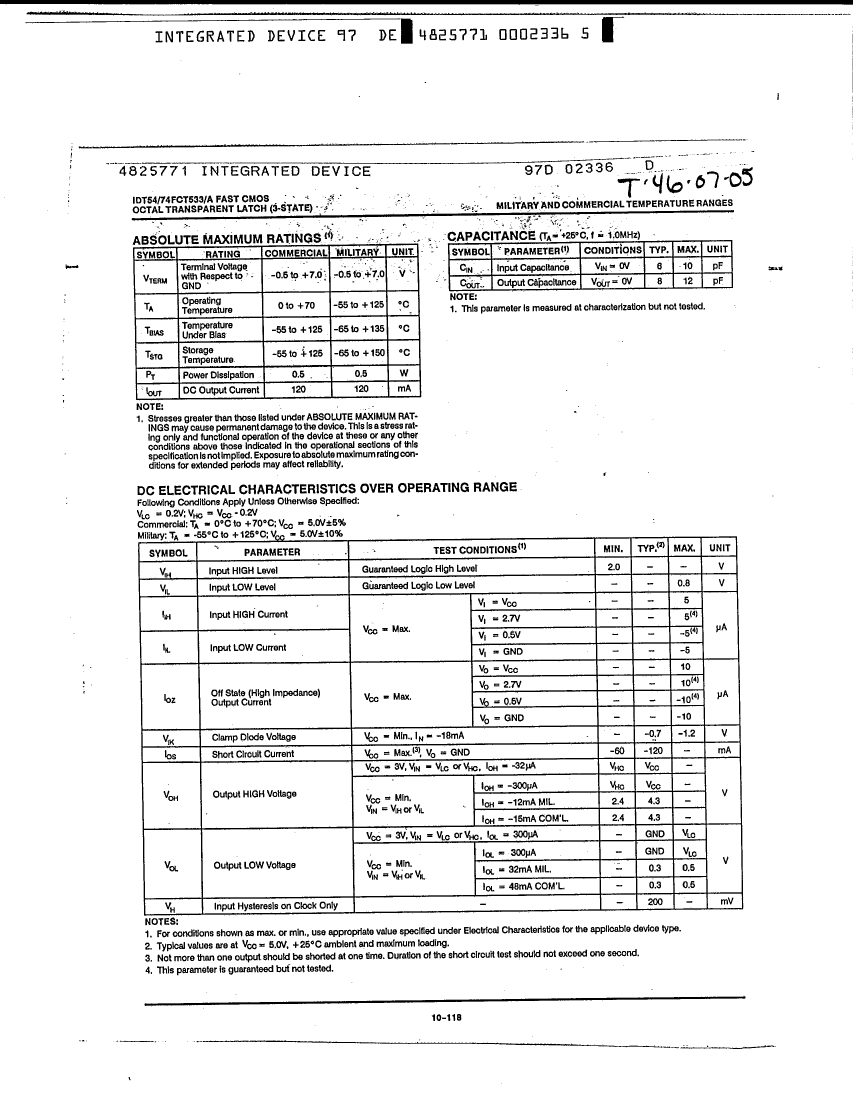

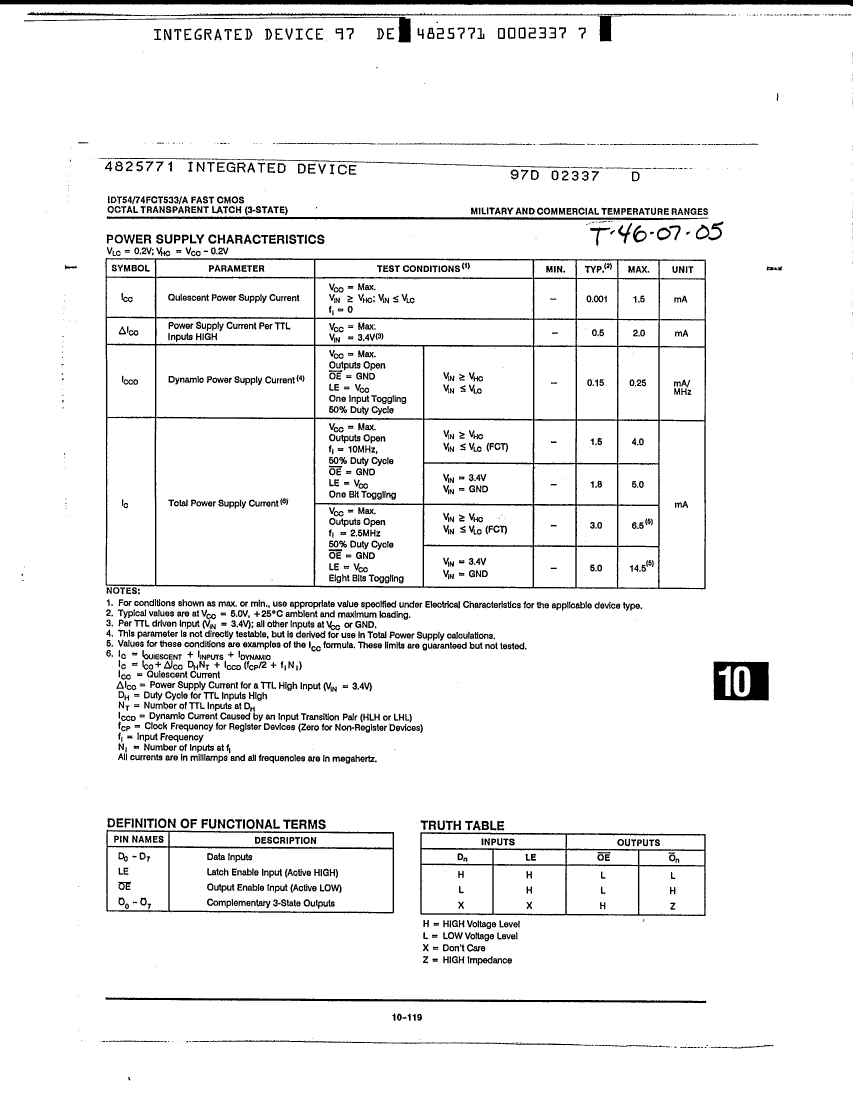

Preview

Download Datasheet

View All

54FCT533E Related Products

	54FCT533E	54FCT533D	54FCT533L	54FCT533AE	54FCT2573CTDB	54FCT2573TDB	74FCT2573CTP	74FCT573AE
Description	D Latch, 1-Func, 8-Bit, CMOS, CDFP20	D Latch, 1-Func, 8-Bit, CMOS, CDIP20	D Latch, 1-Func, 8-Bit, CMOS, CQCC20	D Latch, 1-Func, 8-Bit, CMOS, CDFP20	D Latch, 1-Func, 8-Bit, CMOS, CDIP20	D Latch, 1-Func, 8-Bit, CMOS, CDIP20	PDIP-20, Tube	Jbar-Kbar Flip-Flop, 1-Func, 8-Bit, CMOS, CDFP20
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	unknown	not_compliant
JESD-30 code	R-XDFP-F20	R-XDIP-T20	S-XQCC-N20	R-XDFP-F20	R-XDIP-T20	R-XDIP-T20	R-PDIP-T20	R-XDFP-F20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	JBAR-KBAR FLIP-FLOP
MaximumI(ol)	0.032 A	0.032 A	0.032 A	0.032 A	0.012 A	0.012 A	0.012 A	0.048 A
Number of digits	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DFP	DIP	QCCN	DFP	DIP	DIP	DIP	DFP
Encapsulate equivalent code	FL20,.3	DIP20,.3	LCC20,.35SQ	FL20,.3	DIP20,.3	DIP20,.3	DIP20,.3	FL20,.3
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	CHIP CARRIER	FLATPACK	IN-LINE	IN-LINE	IN-LINE	FLATPACK
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	12 ns	12 ns	12 ns	5.6 ns	5.1 ns	8.5 ns	4.2 ns	5.2 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	NO LEAD	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL
package instruction	DFP, FL20,.3	-	-	DFP, FL20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DFP, FL20,.3
Peak Reflow Temperature (Celsius)	225	225	225	225	225	225	-	225
Maximum time at peak reflow temperature	30	20	30	30	20	20	-	30
