Product Specifications
5-219560-2 | TE620R-WTII: CMR UTP 4/23 C6 1K'
219560-
TE620R-

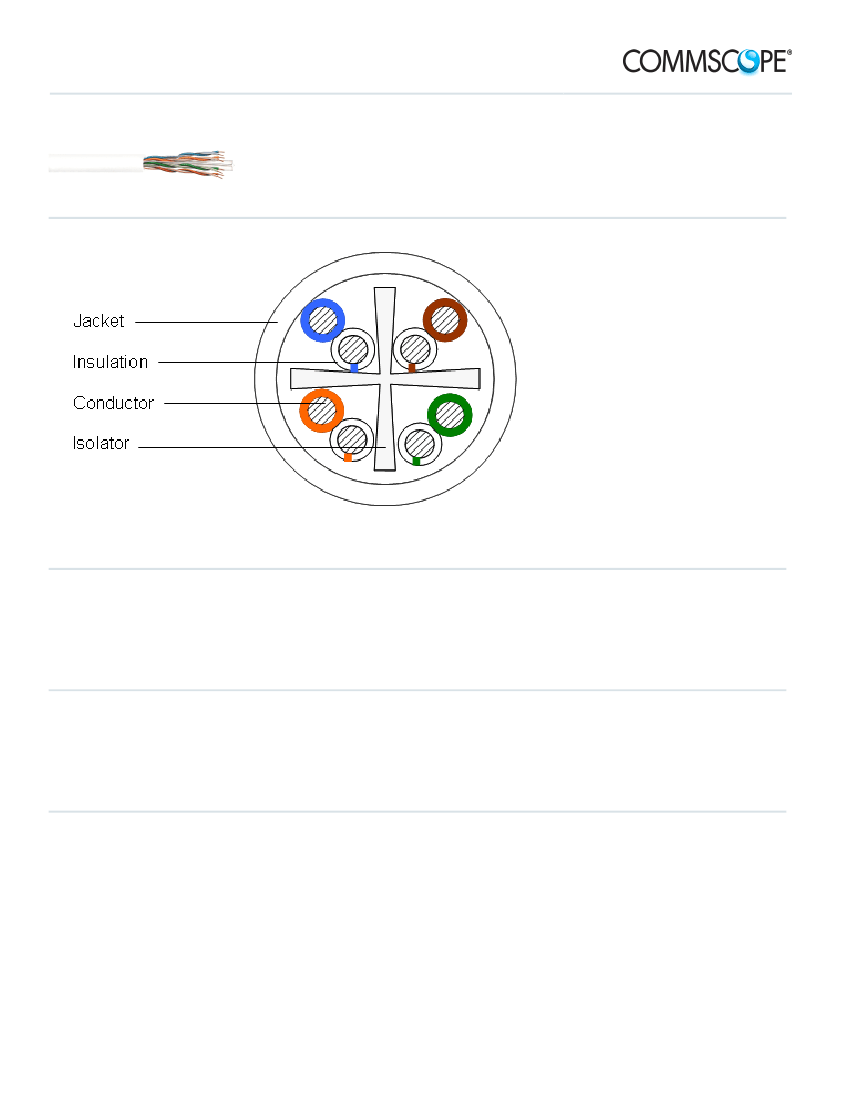

Cross Section Drawing
ETL Verified Category 6 U/UTP Cable, non-plenum, white jacket, 4 pair count, 1000 ft
(305 m) length, CommPak
Construction Materials
Jacket Material
Conductor Material
Insulation Material
Separator Material
PVC
Bare copper
Polyolefin
Polyolefin
Dimensions
Cable Length
Cable Weight
Diameter Over Jacket
Jacket Thickness
305 m
|
1000 ft
|
|
0.227 in
0.020 in
24.58 lb/kft
5.766 mm
0.508 mm
Electrical Specifications
ANSI/TIA Category
Characteristic Impedance
dc Resistance Unbalance, maximum
dc Resistance, maximum
Delay Skew, maximum
Mutual Capacitance
Operating Frequency, maximum
Transmission Standards
Safety Voltage Rating
Dielectric Strength, minimum
6
100 ohm
5%
6.66 ohms/100 m
45 ns
5.4 nF/100 m @ 1 kHz
400 MHz
ANSI/TIA-568-C.2
300 V
1500 Vac
|
2500 Vdc
page 1 of 2
January 11, 2018
Nominal Velocity of Propagation (NVP) 69 %
|
CENELEC EN 50288-6-1
|
ISO/IEC 11801 Class E
©2018 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: May 19, 2017
Product Specifications
5-219560-2 | TE620R-WTII: CMR UTP 4/23 C6 1K'
219560-2 | TE620R-
Note
All electrical transmission tests include swept frequency measurements
Environmental Specifications
Environmental Space
Flame Test Method
Installation Temperature
Operating Temperature
UL Temperature Rating
Non-plenum
CMR
|
UL 1666
0 °C to +60 °C (+32 °F to +140 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
75 °C
|
167 °F
General Specifications
Cable Type
Pairs, quantity
Cable Component Type
Packaging Type
Brand
Jacket Color
Product Number
Conductor Gauge, singles
Conductor Type, singles
Conductors, quantity
Separator Type
U/UTP (unshielded)
4
Horizontal
CommPak® box
CommScope®
White
620R
23 AWG
Solid
8
Isolator
Mechanical Specifications
Pulling Tension, maximum
11 kg
|
25 lb
Regulatory Compliance/Certifications
Agency
RoHS 2011/65/EU
ISO 9001:2008
Classification
Compliant
Designed, manufactured and/or distributed under this quality management system
©2018 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: May 19, 2017
page 2 of 2
January 11, 2018
