DM2750-02-68ADR datasheet, PDF

Datasheet> All Categories > The connector> The connector> DM2750-02-68ADR

DM2750-02-68ADR: DescriptionTelecom and Datacom Connector, 68 Contact(s), Male; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric Compare View All

DM2750-02-68ADR Overview

Telecom and Datacom Connector, 68 Contact(s), Male

DM2750-02-68ADR Parametric

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
Other features	LATCHED, SHIELDED
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Shell material	THERMOPLASTIC
Total number of contacts	68
UL Flammability Code	94V-0

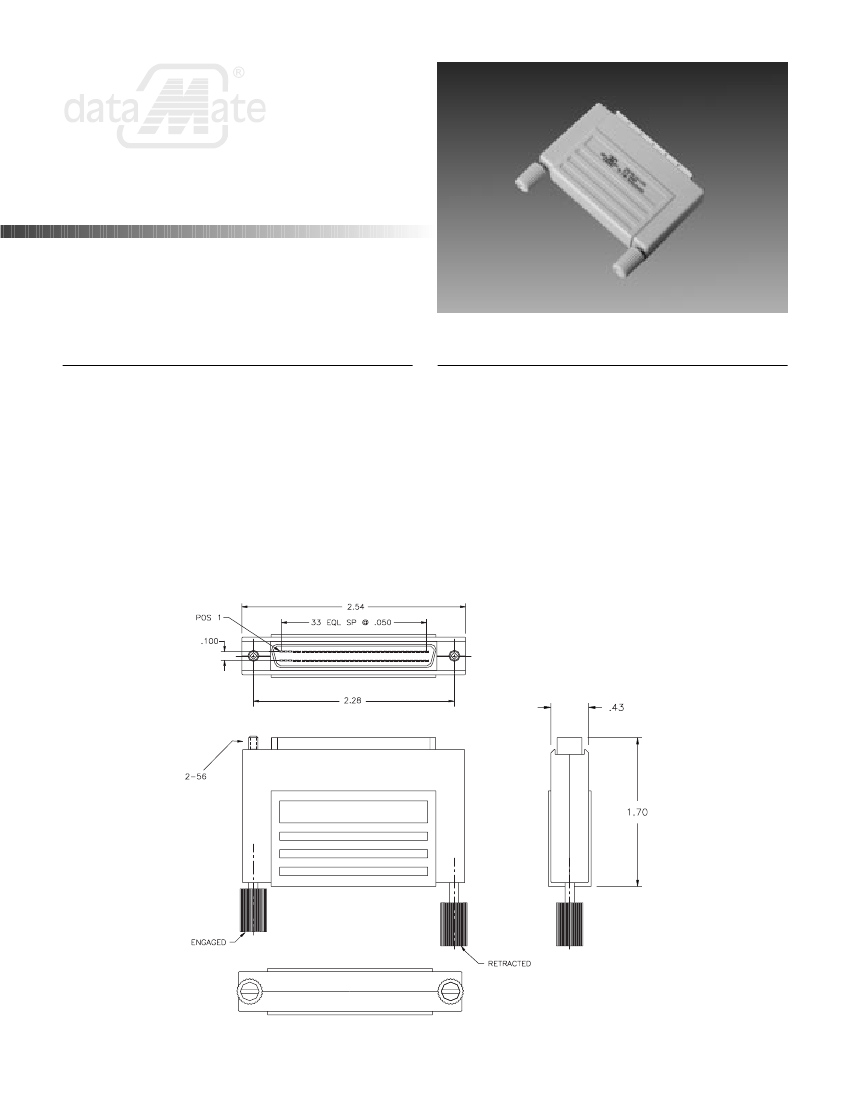

Preview

Download Datasheet

View All

DM2750

68 Position (Wide)

Part Number

DM2750 -

01 - 68D

01 - 68LVD

01 - LVD-SE

FPT27 - 68

02 - 68ADR

Circuit

Differential Terminator LED

LVD Termiantor

Multi-mode Terminator

FPT Terminator

Active Deasertion

Terminator

Specifications

Contact Material:

Phosphor bronze, plated gold over nickel

Insulator Material:

Reinforced thermoplastic, rated UL 94V-0

Housing Material:

Reinforced thermoplastic, rated UL 94V-0

Printed Circuit Board:

FLGFN B2B MIL-P-13949, rated UL 94V-0

Note:

All terminators are External Shielded High Density

Males, .050", with Latches. Optional LED, suffix 'L' on part

numbers, functions as Term Power Indicator.

DM2750-02-68ADR Related Products

	DM2750-02-68ADR	DM2750-02-68ADRL	DM2750-01-68D	DM2750-01-68DL	DM2750-01-68LVD	DM2750-01-68LVDL	DM2750-01-LVD-SE	DM2750-01-LVD-SEL	DM2750-FPT27-68	DM2750-FPT27-68L
Description	Telecom and Datacom Connector, 68 Contact(s), Male	Telecom and Datacom Connector, 68 Contact(s), Male	Telecom and Datacom Connector, 68 Contact(s), Male	Telecom and Datacom Connector, 68 Contact(s), Male	Telecom and Datacom Connector, 68 Contact(s), Male	Telecom and Datacom Connector, 68 Contact(s), Male	Telecom and Datacom Connector, 68 Contact(s), Male	Telecom and Datacom Connector, 68 Contact(s), Male	Telecom and Datacom Connector, 68 Contact(s), Male	Telecom and Datacom Connector, 68 Contact(s), Male
Maker	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	LATCHED, SHIELDED	LATCHED, SHIELDED	LATCHED, SHIELDED	LATCHED, SHIELDED	LATCHED, SHIELDED	LATCHED, SHIELDED	LATCHED, SHIELDED	LATCHED, SHIELDED	LATCHED, SHIELDED	LATCHED, SHIELDED
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Shell material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Total number of contacts	68	68	68	68	68	68	68	68	68	68
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
