541JY-481103A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 541JY-481103A

541JY-481103A: DescriptionRF Coaxial Relay, SP4T, Latched, 0.24A (Coil), 24VDC (Coil), 5760mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,; CategoryMechanical and electronic products relay; File Size157KB，3 Pages; ManufacturerDow-Key Microwave Corporation

Download Datasheet Parametric Compare View All

541JY-481103A Overview

RF Coaxial Relay, SP4T, Latched, 0.24A (Coil), 24VDC (Coil), 5760mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,

541JY-481103A Parametric

Parameter Name	Attribute value
Maker	Dow-Key Microwave Corporation
Reach Compliance Code	unknown

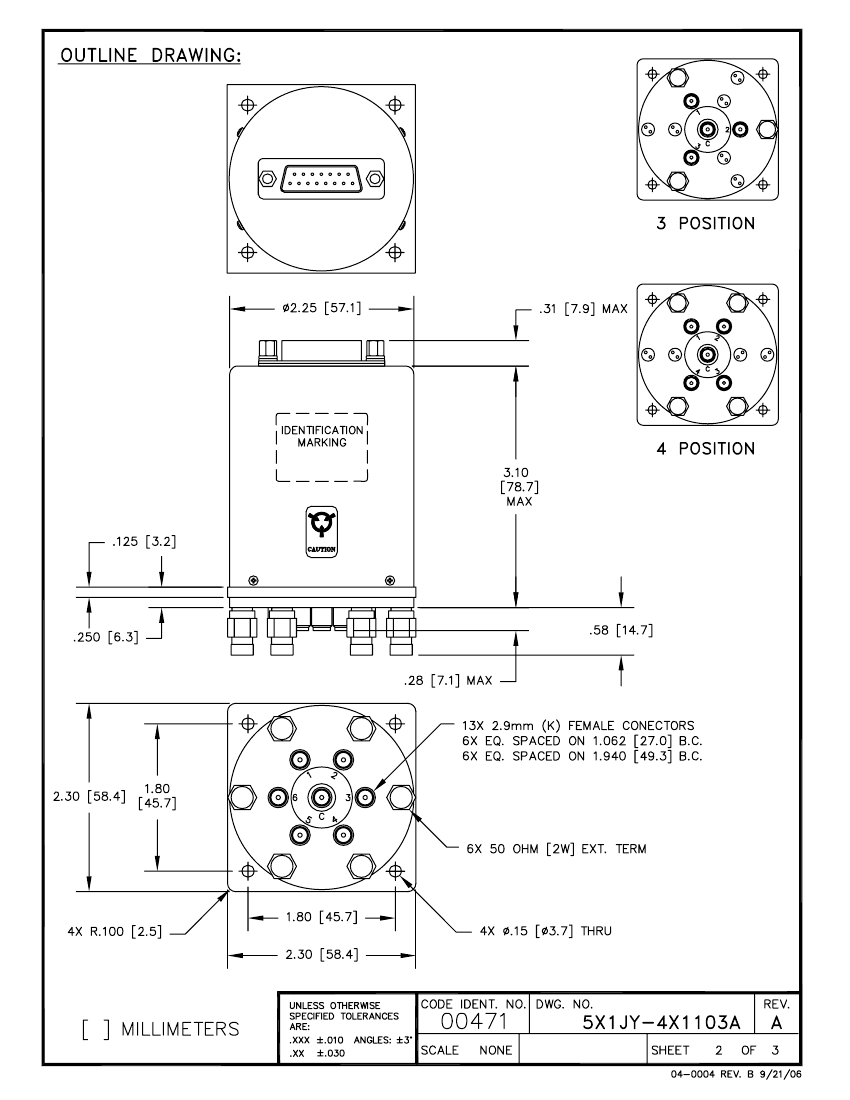

body height	78.7 mm
Body length or diameter	57.1 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.24 A
Coil power	5760 mW
Coil resistance	100 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Maximum input power	30 W
Maximum insertion loss	0.95 dB
Maximum isolation	50 dB
Installation features	PANEL MOUNT
Maximum operating frequency	40000 MHz
Minimum operating frequency
Maximum operating temperature	65 °C
Minimum operating temperature	-25 °C
Relay action	LATCHED
Relay function	SP4T
Relay type	RF COAXIAL RELAY
seal	DUST PROOF
surface mount	NO
switching time	15 ms
Termination type	CONNECTOR
voltage standing wave ratio	1.95

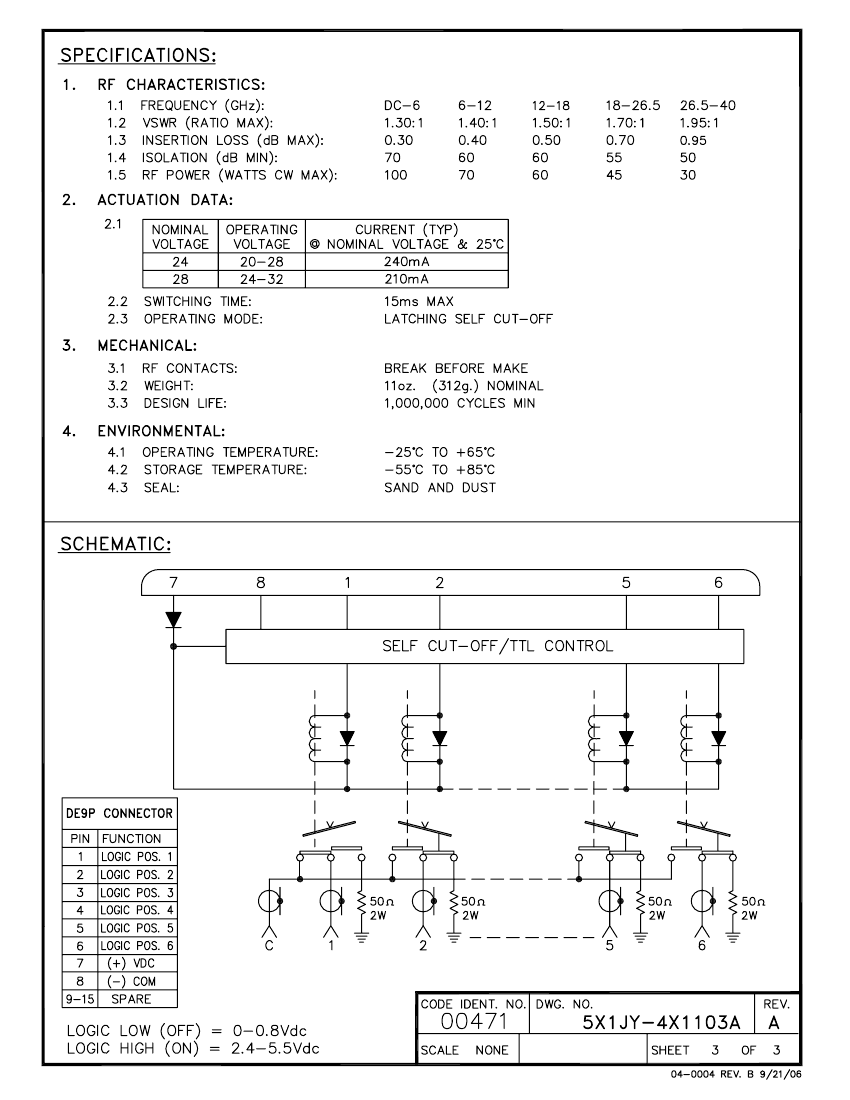

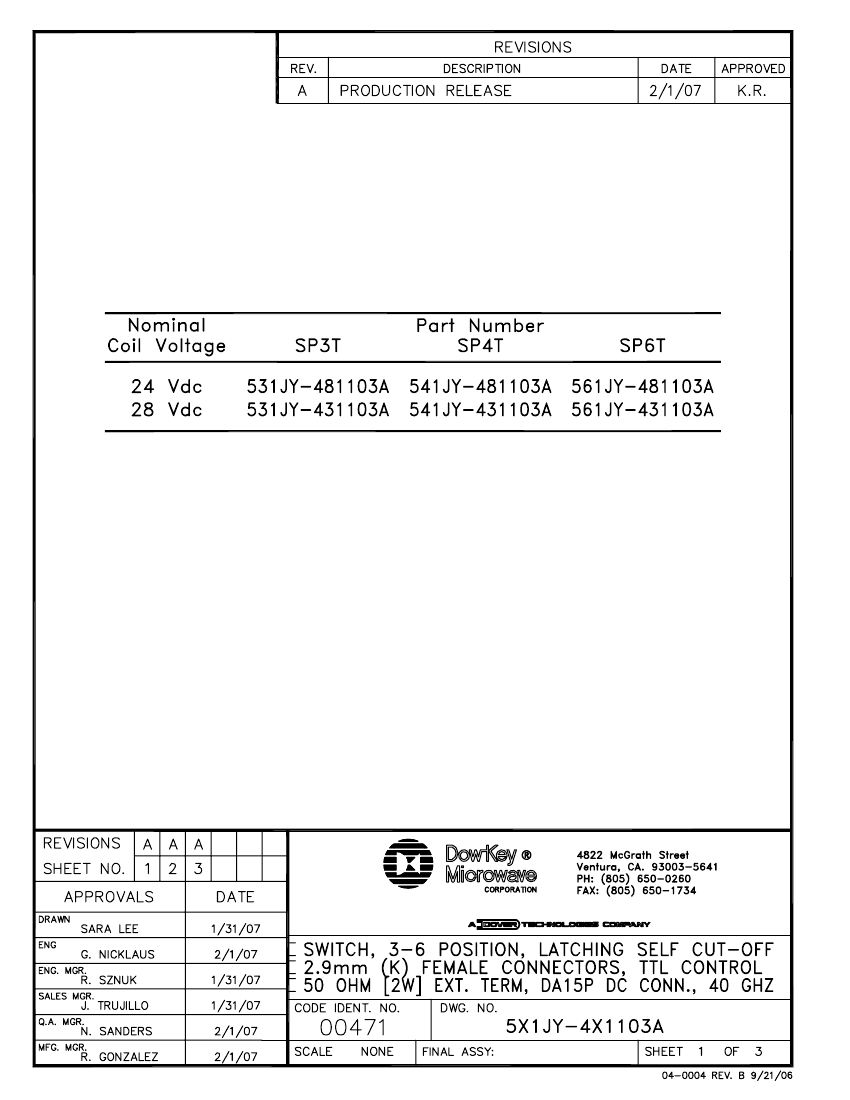

Preview

Download Datasheet

View All

541JY-481103A Related Products

	541JY-481103A	WBDDSS8-A-04-1961-B-	531JY-431103A	531JY-481103A	541JY-431103A	561JY-431103A
Description	RF Coaxial Relay, SP4T, Latched, 0.24A (Coil), 24VDC (Coil), 5760mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	Array/Network Resistor, Isolated, 0.1W, 1960ohm, 100V, 0.1% +/-Tol, -300,300ppm/Cel, 1408,	RF Coaxial Relay, SP3T, Latched, 0.21A (Coil), 28VDC (Coil), 5880mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	RF Coaxial Relay, SP3T, Latched, 0.24A (Coil), 24VDC (Coil), 5760mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	RF Coaxial Relay, SP4T, Latched, 0.21A (Coil), 28VDC (Coil), 5880mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	RF Coaxial Relay, SP6T, Latched, 0.21A (Coil), 28VDC (Coil), 5880mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown
Maximum operating temperature	65 °C	150 °C	65 °C	65 °C	65 °C	65 °C
Minimum operating temperature	-25 °C	-55 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maker	Dow-Key Microwave Corporation	-	Dow-Key Microwave Corporation	Dow-Key Microwave Corporation	Dow-Key Microwave Corporation	Dow-Key Microwave Corporation
body height	78.7 mm	-	78.7 mm	78.7 mm	78.7 mm	78.7 mm
Body length or diameter	57.1 mm	-	57.1 mm	57.1 mm	57.1 mm	57.1 mm
Characteristic impedance	50 Ω	-	50 Ω	50 Ω	50 Ω	50 Ω
Maximum coil current (DC)	0.24 A	-	0.21 A	0.24 A	0.21 A	0.21 A
Coil power	5760 mW	-	5880 mW	5760 mW	5880 mW	5880 mW
Coil resistance	100 Ω	-	133.33 Ω	100 Ω	133.33 Ω	133.33 Ω
Maximum coil voltage (DC)	24 V	-	28 V	24 V	28 V	28 V
Coil/Input Power Type	DC	-	DC	DC	DC	DC
Maximum input power	30 W	-	30 W	30 W	30 W	30 W
Maximum insertion loss	0.95 dB	-	0.95 dB	0.95 dB	0.95 dB	0.95 dB
Maximum isolation	50 dB	-	50 dB	50 dB	50 dB	50 dB
Installation features	PANEL MOUNT	-	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating frequency	40000 MHz	-	40000 MHz	40000 MHz	40000 MHz	40000 MHz
Relay action	LATCHED	-	LATCHED	LATCHED	LATCHED	LATCHED
Relay function	SP4T	-	SP3T	SP3T	SP4T	SP6T
Relay type	RF COAXIAL RELAY	-	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY
seal	DUST PROOF	-	DUST PROOF	DUST PROOF	DUST PROOF	DUST PROOF
surface mount	NO	-	NO	NO	NO	NO
switching time	15 ms	-	15 ms	15 ms	15 ms	15 ms
Termination type	CONNECTOR	-	CONNECTOR	CONNECTOR	CONNECTOR	CONNECTOR
voltage standing wave ratio	1.95	-	1.95	1.95	1.95	1.95
