541Y-4811 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 541Y-4811

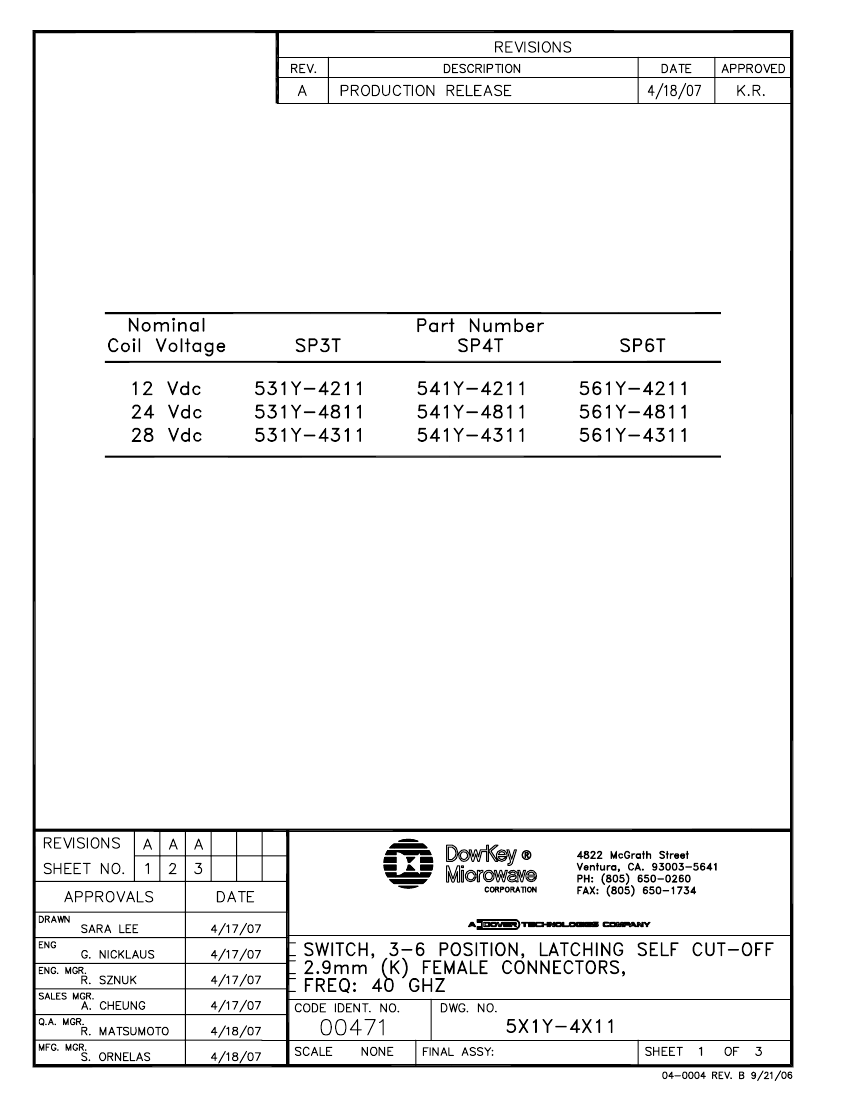

Preview

541Y-4811: DescriptionRF Coaxial Relay, SP4T, Latched, 0.24A (Coil), 24VDC (Coil), 5760mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,; CategoryMechanical and electronic products relay; File Size150KB，3 Pages; ManufacturerDow-Key Microwave Corporation

Download Datasheet Parametric Compare View All

541Y-4811 Overview

RF Coaxial Relay, SP4T, Latched, 0.24A (Coil), 24VDC (Coil), 5760mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,

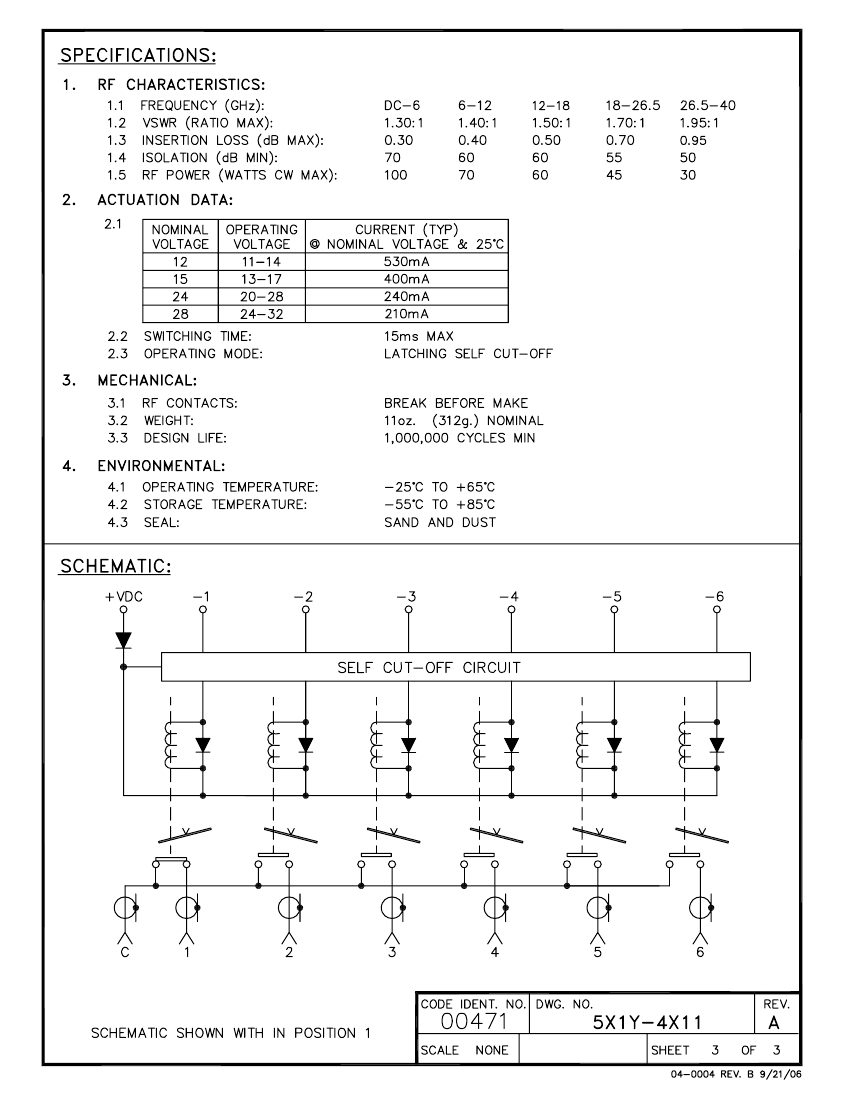

541Y-4811 Parametric

Parameter Name	Attribute value
Maker	Dow-Key Microwave Corporation
Reach Compliance Code	unknown

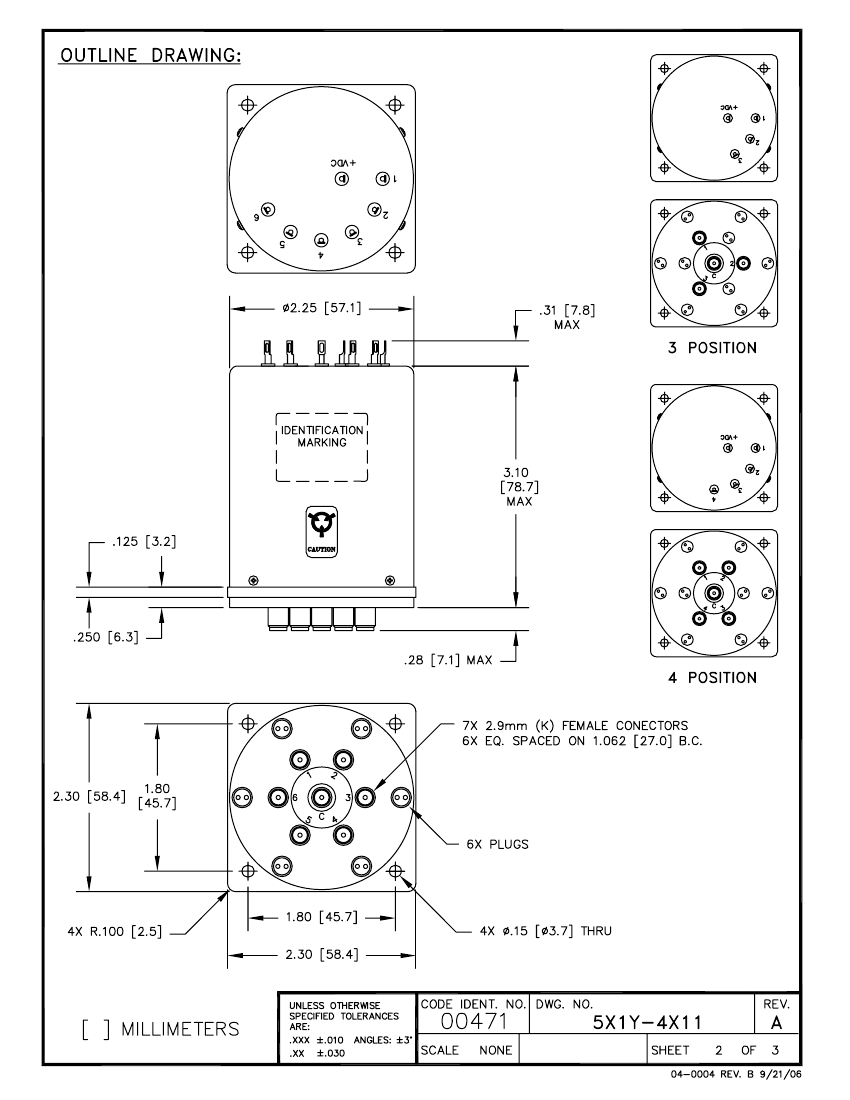

body height	78.7 mm
Body length or diameter	57.1 mm
Maximum coil current (DC)	0.24 A
Coil power	5760 mW
Coil resistance	100 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Maximum input power	30 W
Maximum insertion loss	0.95 dB
Maximum isolation	50 dB
Installation features	PANEL MOUNT
Maximum operating frequency	40000 MHz
Minimum operating frequency
Maximum operating temperature	65 °C
Minimum operating temperature	-25 °C
Relay action	LATCHED
Relay function	SP4T
Relay type	RF COAXIAL RELAY
seal	DUST PROOF
surface mount	NO
switching time	15 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	1.95

Preview

Download Datasheet

View All

541Y-4811 Related Products

	541Y-4811	561Y-4311	561Y-4811	561Y-4211	531Y-4211	541Y-4311	531Y-4311	531Y-4811	541Y-4211
Description	RF Coaxial Relay, SP4T, Latched, 0.24A (Coil), 24VDC (Coil), 5760mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	RF Coaxial Relay, SP6T, Latched, 0.21A (Coil), 28VDC (Coil), 5880mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	RF Coaxial Relay, SP6T, Latched, 0.24A (Coil), 24VDC (Coil), 5760mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	RF Coaxial Relay, SP6T, Latched, 0.53A (Coil), 12VDC (Coil), 6360mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	RF Coaxial Relay, SP3T, Latched, 0.53A (Coil), 12VDC (Coil), 6360mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	RF Coaxial Relay, SP4T, Latched, 0.21A (Coil), 28VDC (Coil), 5880mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	RF Coaxial Relay, SP3T, Latched, 0.21A (Coil), 28VDC (Coil), 5880mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	RF Coaxial Relay, SP3T, Latched, 0.24A (Coil), 24VDC (Coil), 5760mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	RF Coaxial Relay, SP4T, Latched, 0.53A (Coil), 12VDC (Coil), 6360mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,
Maker	Dow-Key Microwave Corporation	Dow-Key Microwave Corporation	Dow-Key Microwave Corporation	Dow-Key Microwave Corporation	Dow-Key Microwave Corporation	Dow-Key Microwave Corporation	Dow-Key Microwave Corporation	Dow-Key Microwave Corporation	Dow-Key Microwave Corporation
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body height	78.7 mm	78.7 mm	78.7 mm	78.7 mm	78.7 mm	78.7 mm	77.4 mm	78.7 mm	78.7 mm
Body length or diameter	57.1 mm	57.1 mm	57.1 mm	57.1 mm	57.1 mm	57.1 mm	58.4 mm	57.1 mm	57.1 mm
Maximum coil current (DC)	0.24 A	0.21 A	0.24 A	0.53 A	0.53 A	0.21 A	0.21 A	0.24 A	0.53 A
Coil power	5760 mW	5880 mW	5760 mW	6360 mW	6360 mW	5880 mW	5880 mW	5760 mW	6360 mW
Coil resistance	100 Ω	133.33 Ω	100 Ω	22.64 Ω	22.64 Ω	133.33 Ω	133.33 Ω	100 Ω	22.64 Ω
Maximum coil voltage (DC)	24 V	28 V	24 V	12 V	12 V	28 V	28 V	24 V	12 V
Coil/Input Power Type	DC	DC	DC	DC	DC	DC	DC	DC	DC
Maximum input power	30 W	30 W	30 W	30 W	30 W	30 W	8 W	30 W	30 W
Maximum insertion loss	0.95 dB	0.95 dB	0.95 dB	0.95 dB	0.95 dB	0.95 dB	0.95 dB	0.95 dB	0.95 dB
Maximum isolation	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating frequency	40000 MHz	40000 MHz	40000 MHz	40000 MHz	40000 MHz	40000 MHz	40000 MHz	40000 MHz	40000 MHz
Maximum operating temperature	65 °C	65 °C	65 °C	65 °C	65 °C	65 °C	65 °C	65 °C	65 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Relay action	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
Relay function	SP4T	SP6T	SP6T	SP6T	SP3T	SP4T	SP3T	SP3T	SP4T
Relay type	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY
seal	DUST PROOF	DUST PROOF	DUST PROOF	DUST PROOF	DUST PROOF	DUST PROOF	DUST PROOF	DUST PROOF	DUST PROOF
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
switching time	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms
Termination type	SOLDER/CONNECTOR	SOLDER/CONNECTOR	SOLDER/CONNECTOR	SOLDER/CONNECTOR	SOLDER/CONNECTOR	SOLDER/CONNECTOR	CONNECTOR	SOLDER/CONNECTOR	SOLDER/CONNECTOR
voltage standing wave ratio	1.95	1.95	1.95	1.95	1.95	1.95	1.95	1.95	1.95
