5XBX46H3-12VAC: DescriptionPower/Signal Relay, DPDT, Latched, 15000mW (Coil), 30A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size132KB，3 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

5XBX46H3-12VAC Overview

Power/Signal Relay, DPDT, Latched, 15000mW (Coil), 30A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount

5XBX46H3-12VAC Parametric

Parameter Name	Attribute value
Maker	Struthers-Dunn
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RELAY FUNCTION 4PST ALSO AVAILABLE, COIL OPERATE VOLTAGE(AC): 10.2 V, COIL RELEASE VOLTAGE(AC): 1.2 V
body width	102.4 mm
body height	68.4 mm
Body length or diameter	178.2 mm
Coil current (AC) maximum value	1.25 A
Coil power	15000 mW
Coil resistance	9 Ω
Maximum coil voltage (AC)	12 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	30A@240VAC
Maximum contact current (AC)	30 A
Maximum contact current (DC)	30 A
Contact (DC) maximum rated R load	30A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	5
Installation features	PANEL MOUNT
operating hours	50 ms
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
physical size	178.2mm X 102.4mm X 68.4mm
Relay action	LATCHED
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	50 ms
surface mount	NO
Termination type	SCREW

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

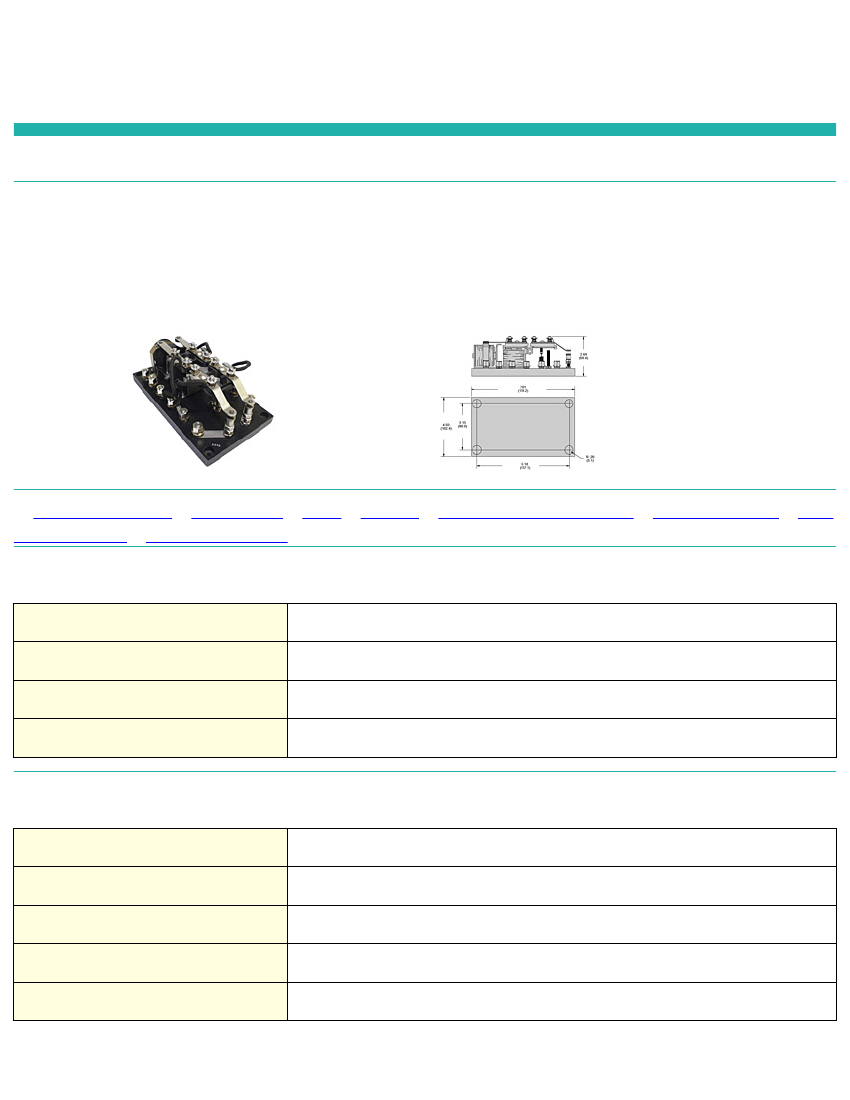

Item # 5XBX46H3-12VAC, 5 Series - Mechanical Latch Electrical Reset Power Relays

5 Series - Mechanical Latch Electrical Reset Power Relays

The 5 series is a 2 coil mechanical latch electrical reset power relay. It is panel mounted with screw terminals, and has 600 volt spacing. The 5 series is supplied with

continuous duty coils, and is suitable for applications ranging from supervisory and interlocking functions to control of small motors, heaters, solenoids or for

transferring power from a main auxiliary supply or load.

For Additional Configuration please contact the manufacturer.

·

SPECIFICATIONS

·

CONTACTS

·

COIL

·

TIMING

·

DIELECTRIC STRENGTH

·

TEMPERATURE

·

LIFE

EXPECTANCY

·

MISCELLANEOUS

SPECIFICATIONS

Series

5

Contact Arrangement

XBX (DPDT)

Optional Features

Open style construction

Coil Voltage

12 VAC

CONTACTS

Contact Configuration

Up to 2PDT or 4PST

Contact Material

Silver Alloy Gold Diffused

Contact Rating

30 A

Contact Rating 120 / 240VAC Resistive

30 A

Contact Rating 28VDC Resistive

30 A

1/12/2012 | Page 1 of 3
