FT200XD: DescriptionFT200XD USB I2C SLAVE IC Datasheet Version 1.3; File Size1MB，42 Pages; ManufacturerFTDI

Download Datasheet View All

FT200XD Overview

FT200XD USB I2C SLAVE IC Datasheet Version 1.3

Preview

Download Datasheet

View All

FT200XD USB I2C SLAVE IC Datasheet

Document No.: FT_000628 Clearance No.: FTDI# 265

Version 1.3

Future Technology Devices

International Ltd

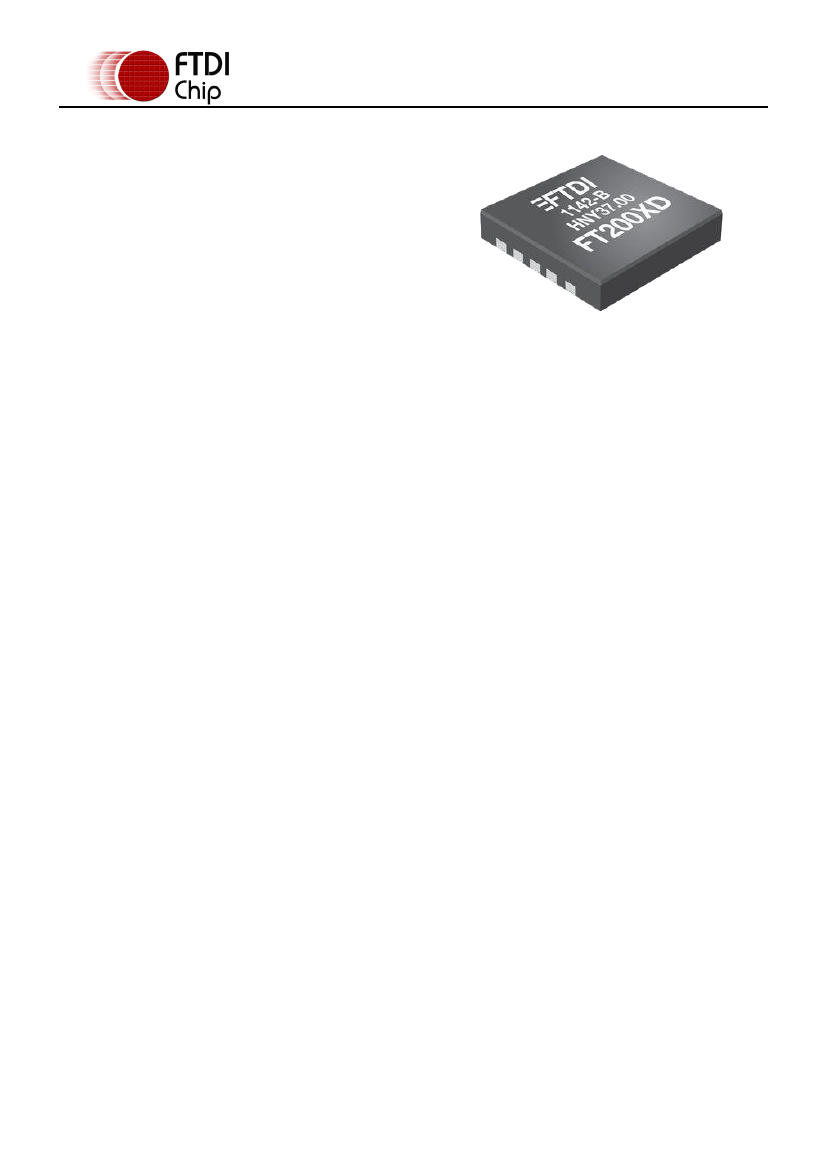

FT200XD

(USB I2C SLAVE IC)

The FT200XD is a USB to I

C interface

with the following advanced features:



Single chip USB to I

C interface.

Up to 3.4MHz, high speed mode, I C supported

Entire USB protocol handled on the chip. No

USB specific firmware programming required.

Fully

integrated

2048

byte

multi-time-

programmable (MTP) memory storing device

descriptors and CBUS I/O configuration.

Fully integrated clock generation with no

external crystal required plus optional clock

output selection enabling a glue-less interface

to external MCU or FPGA.

512 byte receive buffer and 512 byte transmit

buffer utilising buffer smoothing technology to

allow for high data throughput.

FTDI’s royalty-free Virtual Com Port (VCP) and

Direct

(D2XX)

drivers

eliminate

the

requirement for USB driver development in

most cases.

Unique USB FTDIChip-ID™ feature.

Configurable CBUS I/O pin.

Transmit and receive LED drive signals.

USB Battery Charger Detection. Allows for USB

peripheral devices to detect the presence of a

higher power source to enable improved

charging.

Device supplied pre-programmed with unique

USB serial number.



USB Power Configurations; supports bus-

powered, self-powered and bus-powered with

power switching.

Integrated +3.3V level converter for USB I/O.

True 3.3VCMOS drive output and TTL input;

Operates down to 1V8 with external pull-ups.

Tolerant of 5V input.

Configurable I/O pin output drive strength; 4

mA(min) and 16 mA(max).

Integrated power-on-reset circuit.

Fully integrated AVCC supply filtering - no

external filtering required.

+ 5V Single Supply Operation.

Internal 3V3/1V8 LDO regulators

Low operating and USB suspend current; 8mA

(active-typ) and 125uA (suspend-typ).

UHCI/OHCI/EHCI host controller compatible.

USB 2.0 Full Speed compatible.

Extended operating temperature range; -40⁰C

to +85⁰C.

Available in compact Pb-free 10 Pin DFN

package (3mmx3mm) (RoHS compliant).



Neither the whole nor any part of the information contained in, or the product described in this manual, may be adapted or reproduced

in any material or electronic form without the prior written consent of the copyright holder. This product and its documentation are

supplied on an as-is basis and no warranty as to their suitability for any particular purpose is either made or implied. Future Technology

Devices International Ltd will not accept any claim for damages howsoever arising as a result of use or failure of this product. Your

statutory rights are not affected. This product or any variant of it is not intended for use in any medical appliance, device or system in

which the failure of the product might reasonably be expected to result in personal injury. This document provides preliminar y

information that may be subject to change without notice. No freedom to use patents or other intellectual property rights is implied by

the publication of this document. Future Technology Devices International Ltd,

Unit 1, 2 Seaward Place, Centurion Business Park, Glasgow

G41 1HH

United Kingdom. Scotland Registered Company Number: SC136640

FT200XD USB I2C SLAVE IC Datasheet

Document No.: FT_000628 Clearance No.: FTDI# 265

Version 1.3

Table of Contents

1.1

1.2

1.3

Typical Applications ...................................................................... 2

Driver Support .................................................................................... 2

Part Numbers...................................................................................... 2

USB Compliant .................................................................................... 3

3.1

FT200XD Block Diagram ............................................................... 4

Device Pin Out and Signal Description .......................................... 7

10-LD DFN Package ............................................................................ 7

DFN Package Pin Out Description ................................................................................... 7

3.1.1

3.2

CBUS Signal Options ........................................................................... 9

4.1

4.2

Function Description................................................................... 10

Key Features ..................................................................................... 10

Functional Block Descriptions ........................................................... 10

6.1

6.2

6.3

6.4

6.5

C Interface Description ............................................................ 12

Devices Characteristics and Ratings ........................................... 13

Absolute Maximum Ratings............................................................... 13

ESD and Latch-up Specifications ....................................................... 13

DC Characteristics............................................................................. 14

MTP Memory Reliability Characteristics ............................................ 18

Internal Clock Characteristics ........................................................... 18

7.1

7.2

7.3

USB Power Configurations .......................................................... 19

USB Bus Powered Configuration ...................................................... 19

Self Powered Configuration .............................................................. 20

USB Bus Powered with Power Switching Configuration .................... 21

8.1

8.2

Application Examples ................................................................. 22

USB to I

C Converter......................................................................... 22

USB Battery Charging Detection ....................................................... 23

9.1

USB and I

C Interfacing ............................................................. 25

Host Interface (USB) ........................................................................ 25

VCP and D2xx Interfaces ............................................................................................ 25

Reading and Writing Data ........................................................................................... 26

9.1.1

9.1.2

9.2

9.2.1

9.2.2

C Interface ..................................................................................... 27

Addressing ................................................................................................................ 27

Data Transfers .......................................................................................................... 27

9.3

Other I

C Commands ........................................................................ 29

Internal MTP Memory Configuration ........................................... 31
