Part Number

Search

5962-9313901MPA

Description
Buffer/Inverter Based MOSFET Driver, CDIP8, CERAMIC, DIP-8
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size410KB,11 Pages
ManufacturerMicrel ( Microchip )
Websitehttps://www.microchip.com
Download Datasheet Parametric Compare View All

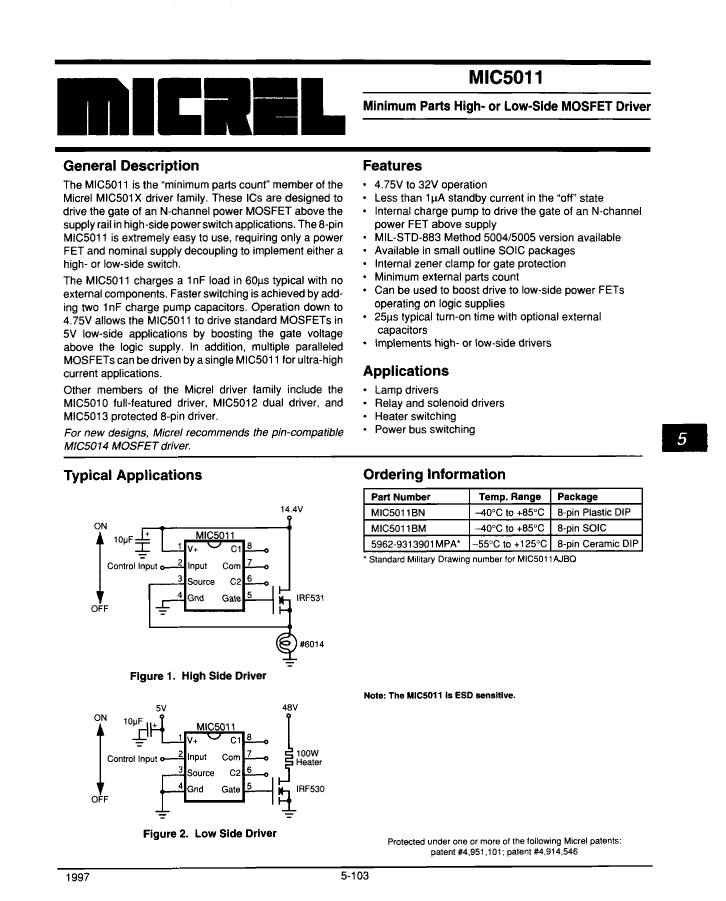

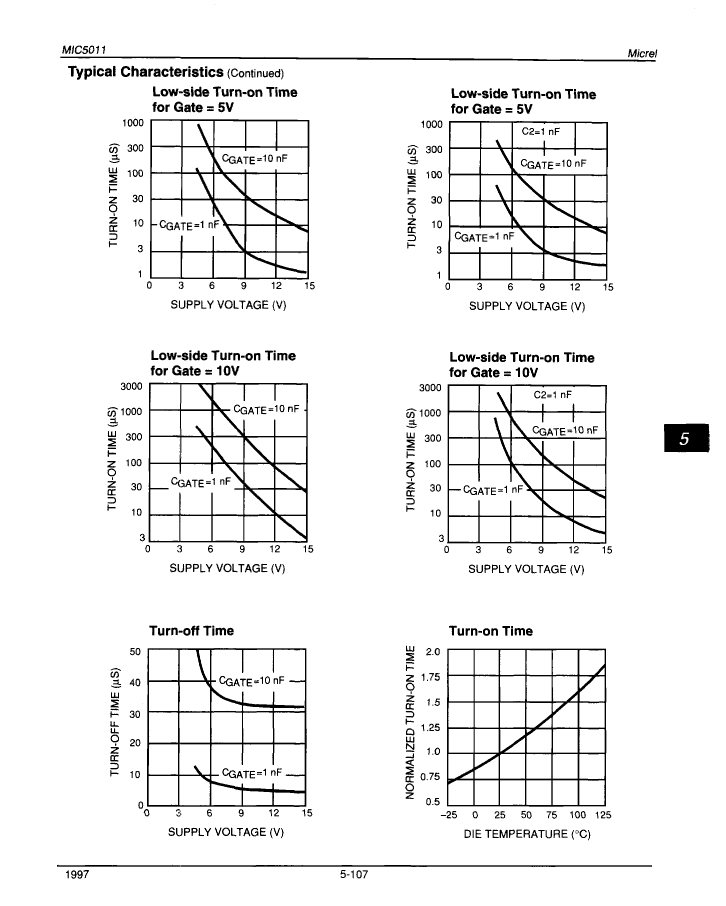

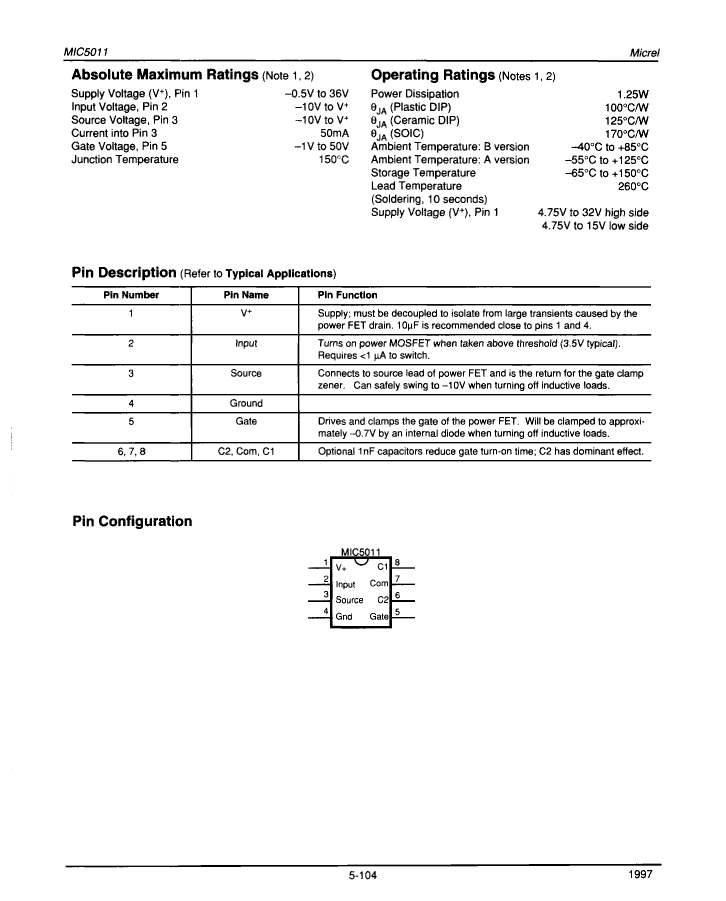

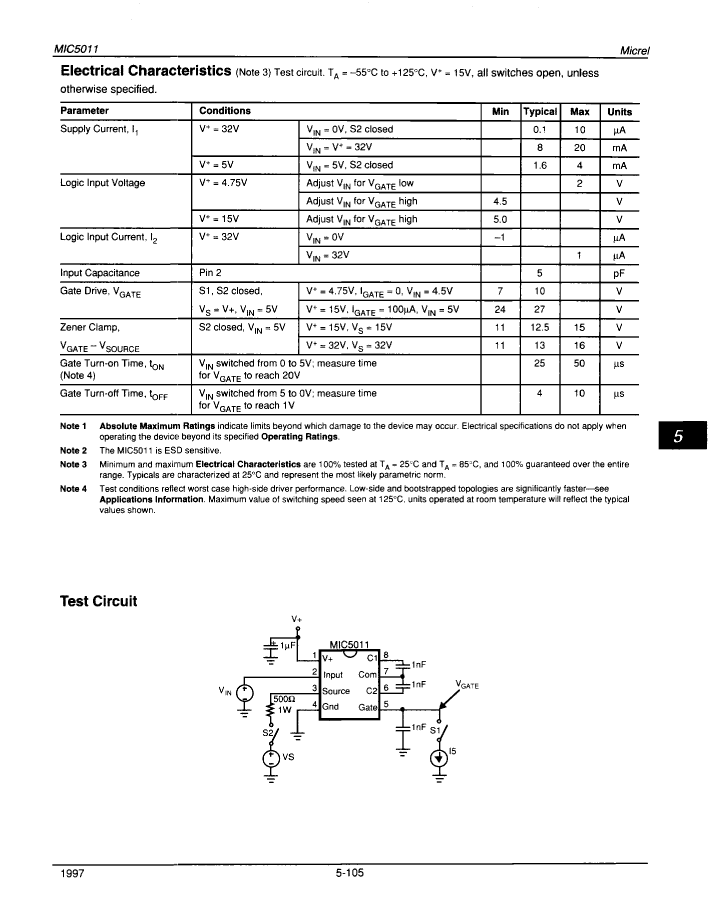

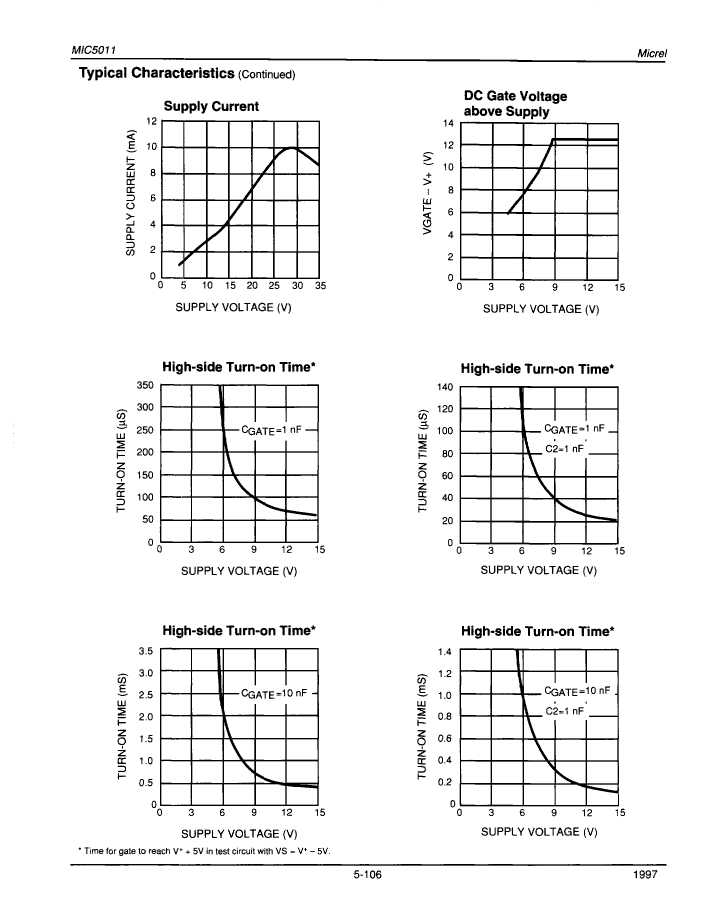

5962-9313901MPA Overview

Buffer/Inverter Based MOSFET Driver, CDIP8, CERAMIC, DIP-8

5962-9313901MPA Parametric

Parameter NameAttribute value
MakerMicrel ( Microchip )
Parts packaging codeDIP
package instructionDIP,
Contacts8
Reach Compliance Codeunknown
ECCN codeEAR99
high side driverYES
Input propertiesSTANDARD
Interface integrated circuit typeBUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 codeR-GDIP-T8
JESD-609 codee0
Number of functions1
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output polarityTRUE
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Certification statusNot Qualified
Filter levelMIL-STD-883
Maximum slew rate20 mA
Maximum supply voltage32 V
Minimum supply voltage4.75 V
Nominal supply voltage15 V
surface mountNO
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal locationDUAL
Disconnect time10 µs
connection time50 µs

5962-9313901MPA Related Products

5962-9313901MPA MIC5011AJBQ
Description Buffer/Inverter Based MOSFET Driver, CDIP8, CERAMIC, DIP-8 Buffer/Inverter Based MOSFET Driver, CMOS, CDIP8, CERAMIC, DIP-8
Parts packaging code DIP DIP
package instruction DIP, DIP,
Contacts 8 8
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
high side driver YES YES
Input properties STANDARD STANDARD
Interface integrated circuit type BUFFER OR INVERTER BASED MOSFET DRIVER BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code R-GDIP-T8 R-GDIP-T8
Number of functions 1 1
Number of terminals 8 8
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Output polarity TRUE TRUE
Package body material CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED
encapsulated code DIP DIP
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE
Certification status Not Qualified Not Qualified
Maximum slew rate 20 mA 20 mA
Maximum supply voltage 32 V 32 V
Minimum supply voltage 4.75 V 4.75 V
Nominal supply voltage 15 V 15 V
surface mount NO NO
Temperature level MILITARY MILITARY
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location DUAL DUAL
Disconnect time 10 µs 10 µs
connection time 50 µs 50 µs
