lV-PEcl 7x5mm 3.3V Oscillator
F4600 sERiEs
Page 1 of 2
RoHs compliant / Pb Free
OPtiOns
2.5V Version - XpressO
®
Equivalent FXO-PC72
• Pin 2 E/D (A Series)
•
Rev. 1/22/2009
http://www.foxonline.com/need_a_sample.htm
FEAtuREs
•
3.3V Operation
•
•
•
•
LV-PECL Output
Complementary Outputs
Standby Function
Tape and Reel
(2,000 pcs. STD)
Why XpressO?
Lower Cost, Faster Delivery, Low Jitter!
XpressO
®
Equivalent
FXO-PC73
• PARt nuMbER sElEctiOn
Learn More - Internet Required
Part Number
535-Frequency-xxxxx
536-Frequency-xxxxx
537-Frequency-xxxxx
538-Frequency-xxxxx
539-Frequency-xxxxx
540-Frequency-xxxxx
541-Frequency-xxxxx
Model
Number
F4600
F4600R
F4605
F4605R
F4606
F4606R
F4608
Operating
Frequency
Stability
1
Temperature (ºC)
-10 ~ +70
±100PPM
-40 ~ +85
±100PPM
-10 ~ +70
±50PPM
-40 ~ +85
±50PPM
-10 ~ +70
±25PPM*
-40 ~ +85
±25PPM*
-10 ~ +70
±20PPM*
Frequency
Range (MHz)
40.000 ~ 280.000
40.000 ~ 280.000
40.000 ~ 280.000
40.000 ~ 280.000
40.000 ~ 280.000
40.000 ~ 170.000
40.000 ~ 170.000
• ElEctRicAl cHARActERistics
PARAMETERS
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
Output Symmetry (50% Vp-p Level)
40.000 MHz ~ 170.000 MHz
170.000* Mhz ~ 280.000 MHz
Rise Time (T
r
) (20% ~ 80% Vp-p)
Fall Time (T
f
)(80% ~ 20% Vp-p)
Output Voltage
(V
ol
)
(V
oh
)
Standby Current
Output Load
Start-up Time
(T
s
)
Output Disable Time
2
Output Enable Time
2
Jitter
12kHz ~ 20MHz
RMS Period
Cycle-to-Cycle
1
MAX
(unless otherwise noted)
40.000 ~ 280.000 MHz
-55ºC ~ +125ºC
3.3V ± 5%
88mA
45% ~ 55%
40% ~ 60%
1nS
1nS
1.7V
2.2V Min
30µA
See Recommended Circuit
10mS
100nS
10mS
0.3pS Typ.
2.5pS Typ.
20pS Typ.
Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,
shock, and vibration. (*Excludes shock and vibration)
2
An internal pullup resistor from pin 1 to pin 6 allows active output if pin 1 is left open.
Note: A 0.01µF bypass capacitor should be placed between
V
dd
(Pin 6) and GND (Pin 3) to
minimize power supply line noise.

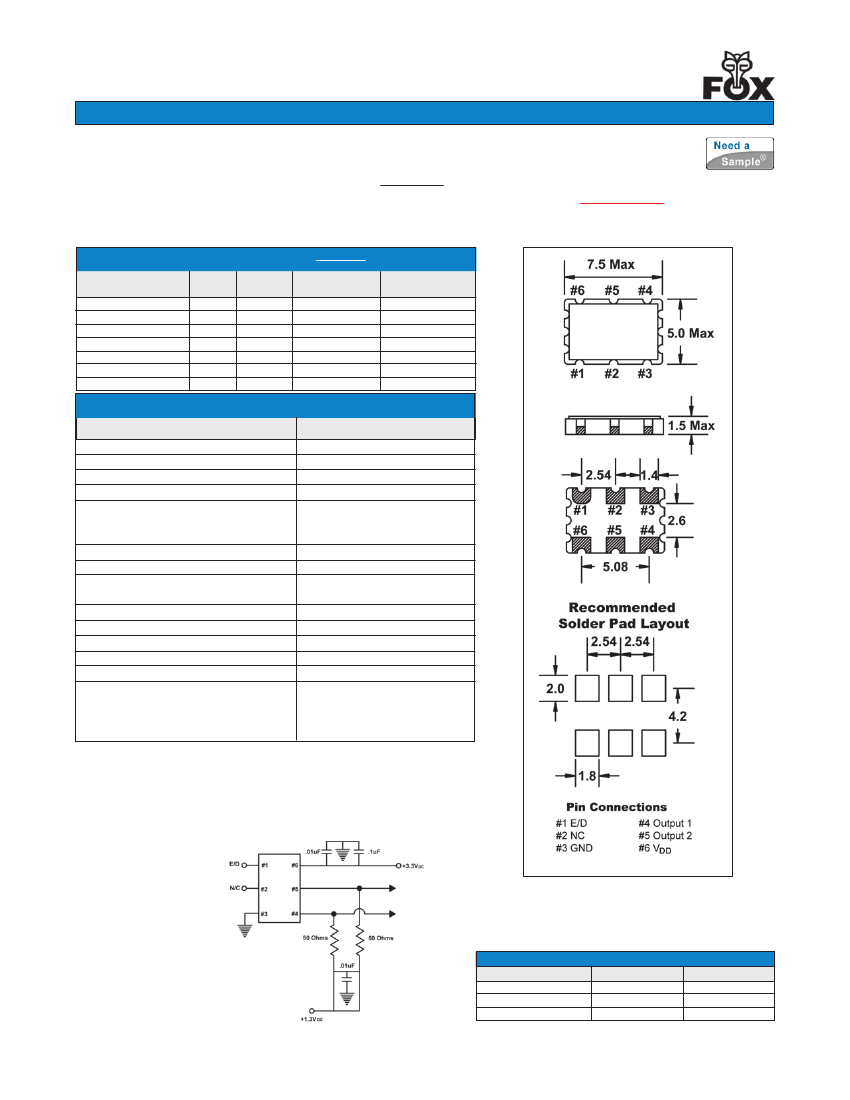

Drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may vary.
All specifications subject to change without notice.
All dimensions are in millimeters.
• EnAblE / DisAblE FunctiOn
3
OUTPUT (Pin 4)
(Pin 1)
ACTIVE
OPEN
'1' Level V
ih
≥
70% V
dd
ACTIVE
'0' Level V
il
≤
30% V
dd
High Z
OUTPUT (Pin 5)
ACTIVE
ACTIVE
High Z
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2009 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282
|
Japan
Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
75
lV-PEcl 7x5mm 3.3V Oscillator
F4600 sERiEs
Page 2 of 2
RoHs compliant / Pb Free
Rev. 1/22/2009
http://www.foxonline.com/need_a_sample.htm

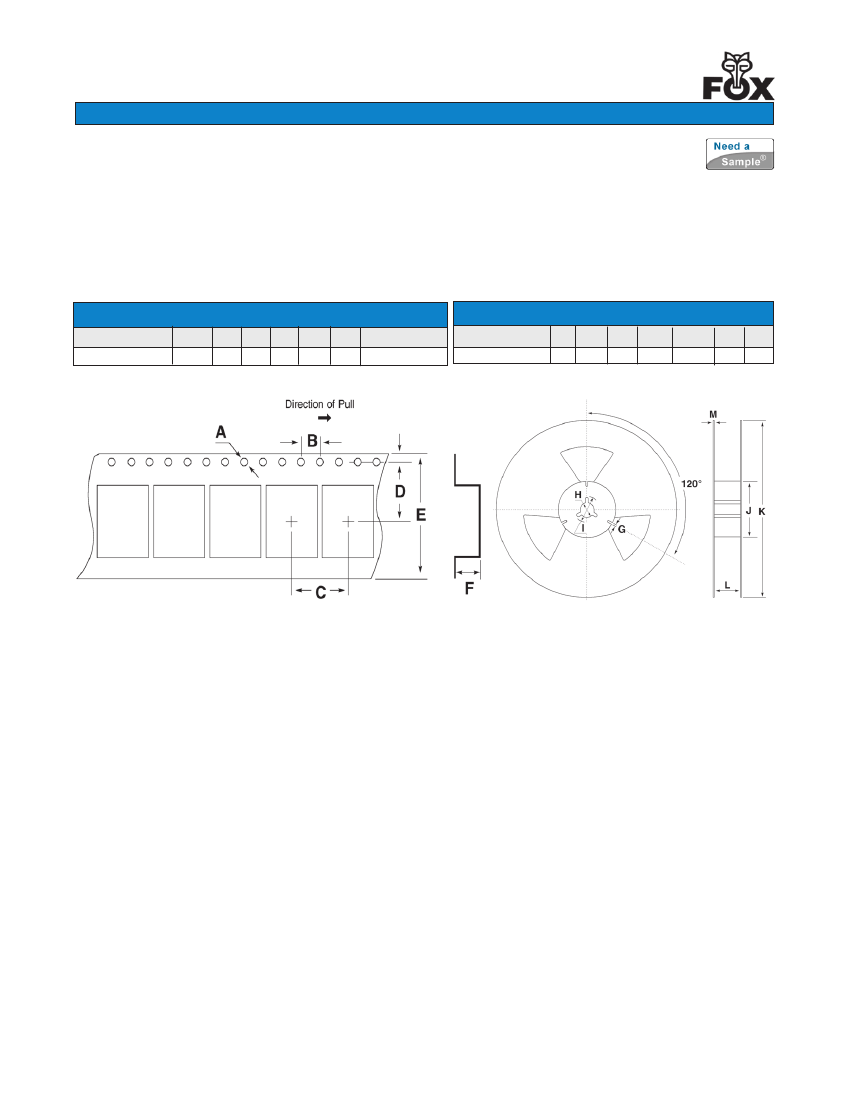

• tAPE sPEciFicAtiOns
(millimeters)
MODEl
F4600 Series
• REEl sPEciFicAtiOns
(millimeters)
G H
i
J
K
l M
2.0
∅13 ∅21 ∅80 ∅255
17.5 2.0
b
c D E
F
STD Reel QTY
MODEl
A
F4600 Series
2,000
∅1.5
4.0 8.0 7.5 16.0 2.15
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2009 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282
|
Japan
Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
