FT4222H Programmer Module
UMFT4222PROG
FT4222
Programmer
Module
1
Introduction
1.1
Features
USB2.0 Full Speed compatible
USB bus powered
USB Type B micro connector for
connecting to a PC
USB Type A connector for connecting to a
UMFT4222EV or a device with a FT4222H
On board FTDI chip provides USB hub
function
Visual indicator for 6.5V programming
voltage and USB bus power using LEDs

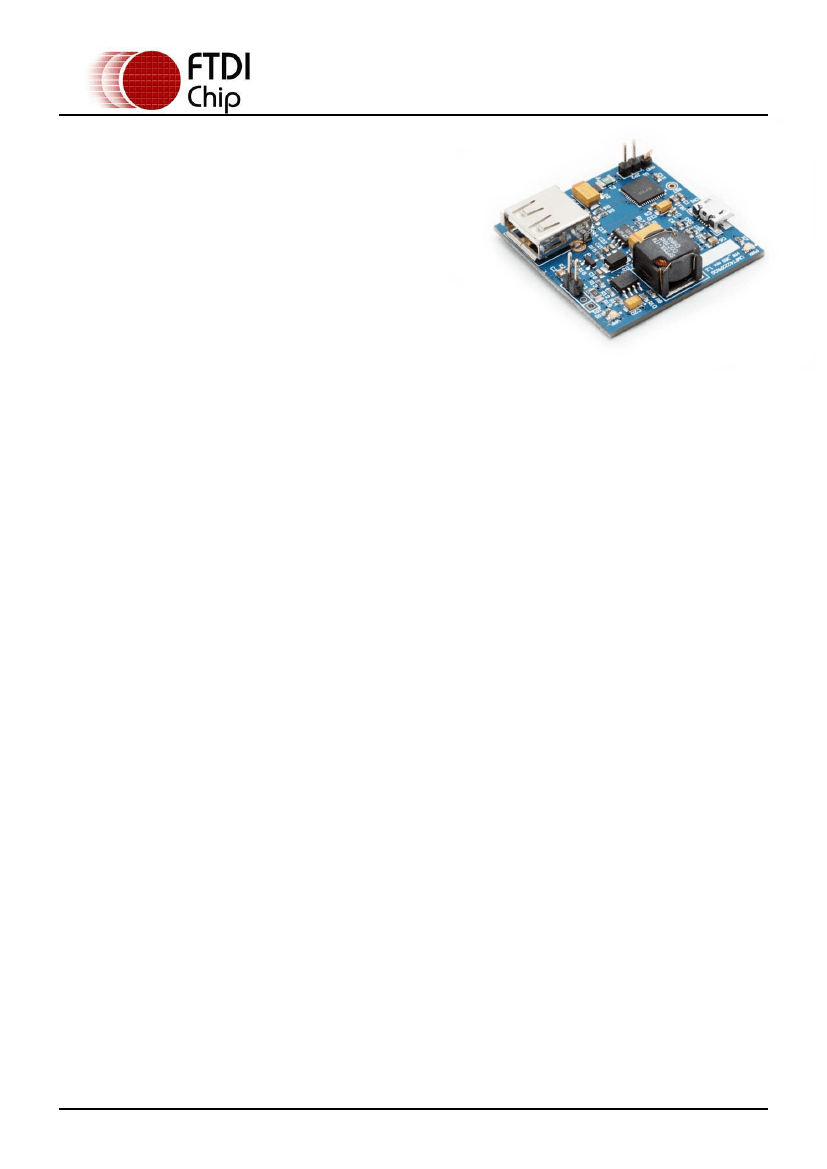

The UMFT4222PROG FT4222H Programmer
Module is used to program OTP memory on a
UMFT4222EV or devices with a FT4222H.
The internal OTP memory in the FT4222H is used
to store USB Vendor ID (VID), Product ID (PID),
device serial number, product description string
and various other USB configuration descriptors.
With this embedded OTP memory, the device can
store vendor specific information and save the
cost on BOM.
The 4 pin connector on the module connects
directly to the FTDI UMFT4222EV. The
UMFT4222PROG allows the user to program the
UMFT4222EV OTP memory from a USB host
controller.
Copyright © 2014 Future Technology Devices International Limited
10
Version 1.0
Document Reference No.: FT_001058. Clearance No.: FTDI #408
FT4222H Programmer Module
2
Applications
UMFT4222EV OTP Memory programming
OTP Memory programming on custom device with FT4222H
2.1
Driver Support
Microsoft Windows 8 and 8 - 64-bit
Microsoft Windows 7 and Windows 7 64-bit
The drivers listed above are all available to download for free from
http://www.ftdichip.com/Drivers/D2XX.htm
2.2
Ordering Information
The following Table 2-1 gives details of the available UMFT4222PROG.
Part Number
UMFT4222PROG
Description
FT4222H OTP memory programming module
Table 2-1 UMFT4222PROG Descriptions and Part Numbers
Copyright © 2014 Future Technology Devices International Limited
10
Version 1.0
Document Reference No.: FT_001058. Clearance No.: FTDI #408
FT4222H Programmer Module
Table of Contents
1
Introduction ....................................................................................................... 1
1.1 Features.............................................................................................................. 1
2
Applications.................................................................................... 2
2.1 Driver Support .................................................................................................... 2
2.2 Ordering Information .......................................................................................... 2
3
Function Description....................................................................... 4
3.1 Connection with UMFT4222EV ............................................................................ 5
3.2 Connection with Custom FT4222H design ........................................................... 5
4
5
6
UMFT4222PROG module connection and Mechanical Details .......... 6
Module PCB Circuit Schematic ........................................................ 7
Contact Information ....................................................................... 8
Appendix A - List of Figures and Tables ............................................... 9
Appendix B – Revision History ........................................................... 10
Copyright © 2014 Future Technology Devices International Limited
10
Version 1.0
Document Reference No.: FT_001058. Clearance No.: FTDI #408
FT4222H Programmer Module
3
Function Description
The FT4222H Programmer Module (UMFT4222PROG) is designed to control VPP power output (+6.5V) for
programming the FT4222H OTP memory on the UMFT4222EV module or custom device with a FT4222H.
This module is USB bus-powered and includes a USB 2.0 compliant full speed hub device. The VPP power is
provided from the USB upstream port.
VPP power is supplied through 2 pins of the 2.54mm pitch header, JP1. There are two USB connectors: 1)
CN1: USB Type B micro receptacle to a PC, 2) CN2: USB Type A receptacle to a UMFT4222EV or custom
FT4222H device.

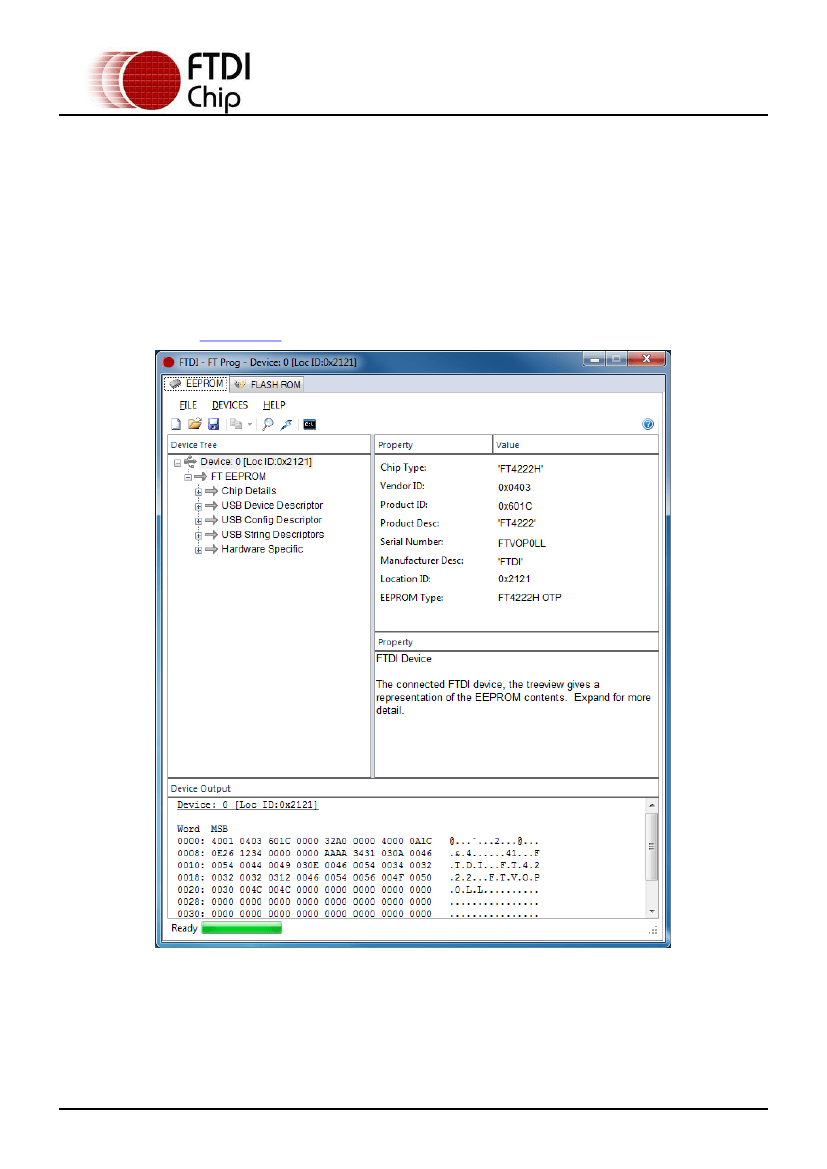

Having connected the UMFT4222PROG module, the user can perform the OTP memory programming with
FT_PROG software. FT_PROG is a free programming utility for use with FTDI devices. For more details,
please refer to the
FTDI website.
Figure 3-1 UMFT4222PROG connection example
Copyright © 2014 Future Technology Devices International Limited
10
Version 1.0
Document Reference No.: FT_001058. Clearance No.: FTDI #408
FT4222H Programmer Module
3.1
Connection with UMFT4222EV
The UMFT4222EV module has a 4-pin ( populated at pin 3 and 4 positions), 2.54mm pitch male connector
JP1 for connecting to the UMFT4222PROG JP1. The details of connect configuration are listed below.
1.
2.
3.
4.
UMFT4222PROG
UMFT4222PROG
UMFT4222PROG
UMFT4222PROG
JP1 Pin3 to UMFT4222PROG JP1 Pin3
JP1 Pin4 to UMFT4222PROG JP1 Pin4
CN2 to UMFT4222EV CN1
CN1 to PC
To
PC
CN1
JP1
GND
VPP
1234
4321
CN2
UMFT4222PROG
CN1
JP1
USB
Cable
Figure 3-2 Example connection of UMFT4222PROG to UMFT4222EV
UMFT4222EV
3.2
Connection with Custom FT4222H design
Custom designs using the FT4222H hardware, should expose a VPP and GND pin on the design PCB for OTP
memory programming if required. The details of connect configuration are listed below.
1.
2.
3.
4.
UMFT4222PROG
UMFT4222PROG
UMFT4222PROG
UMFT4222PROG
JP1 Pin3 to FT4222H GND Pin
JP1 Pin4 to FT4222H VPP Pin
CN2 to FT4222H USB D+/D-
CN1 to PC
To
PC
CN1
JP1
GND
VPP
1234
CN2
UMFT4222PROG
VPP
FT4222H
USB
Cable
GND
Custom Device
Figure 3-3 UMFT4222PROG to FT4222H Custom Device
