54796-0601 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54796-0601

54796-0601: DescriptionBoard Stacking Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size440KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

54796-0601 Overview

Board Stacking Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle,

54796-0601 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SLIMSTACK, BLADE ON BEAM CONTACT
body width	0.165 inch
subject depth	0.045 inch
body length	0.571 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.8062 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	54796
Plug contact pitch	0.016 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.699 mm
Plating thickness	10u inch
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
UL Flammability Code	94V-0
Evacuation force-minimum value	.0834 N

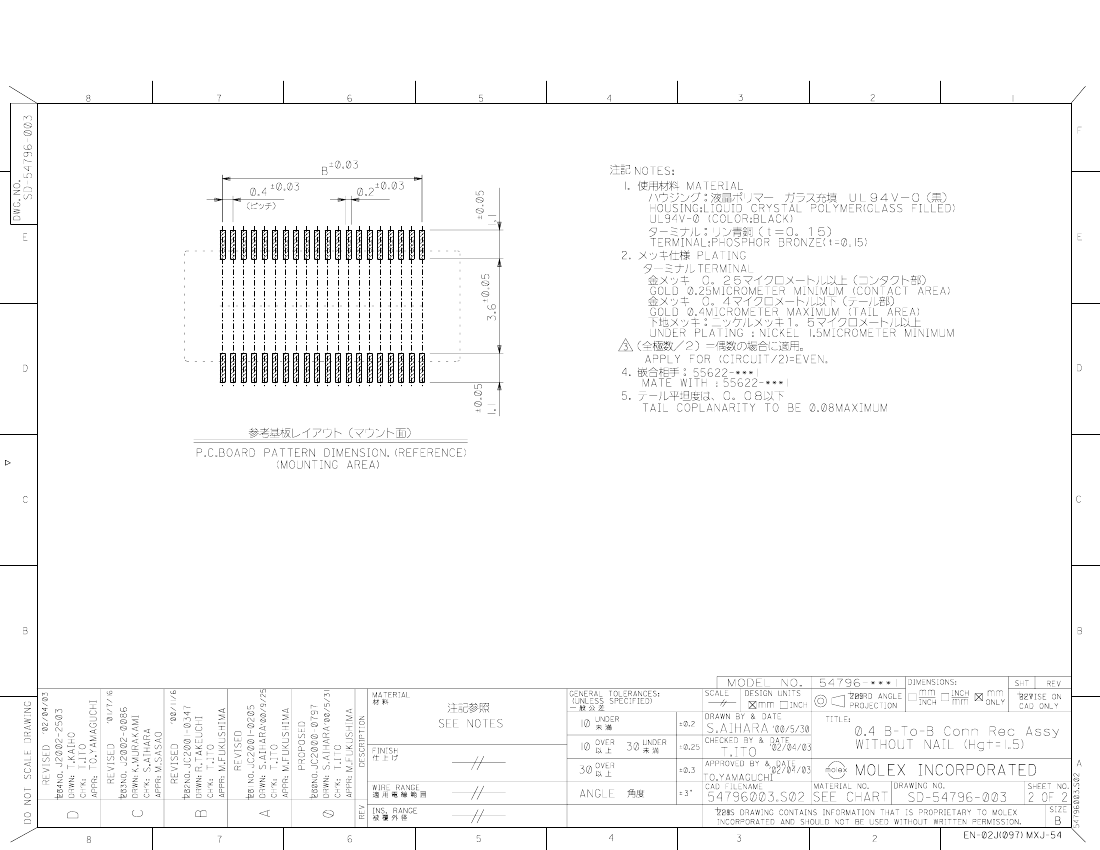

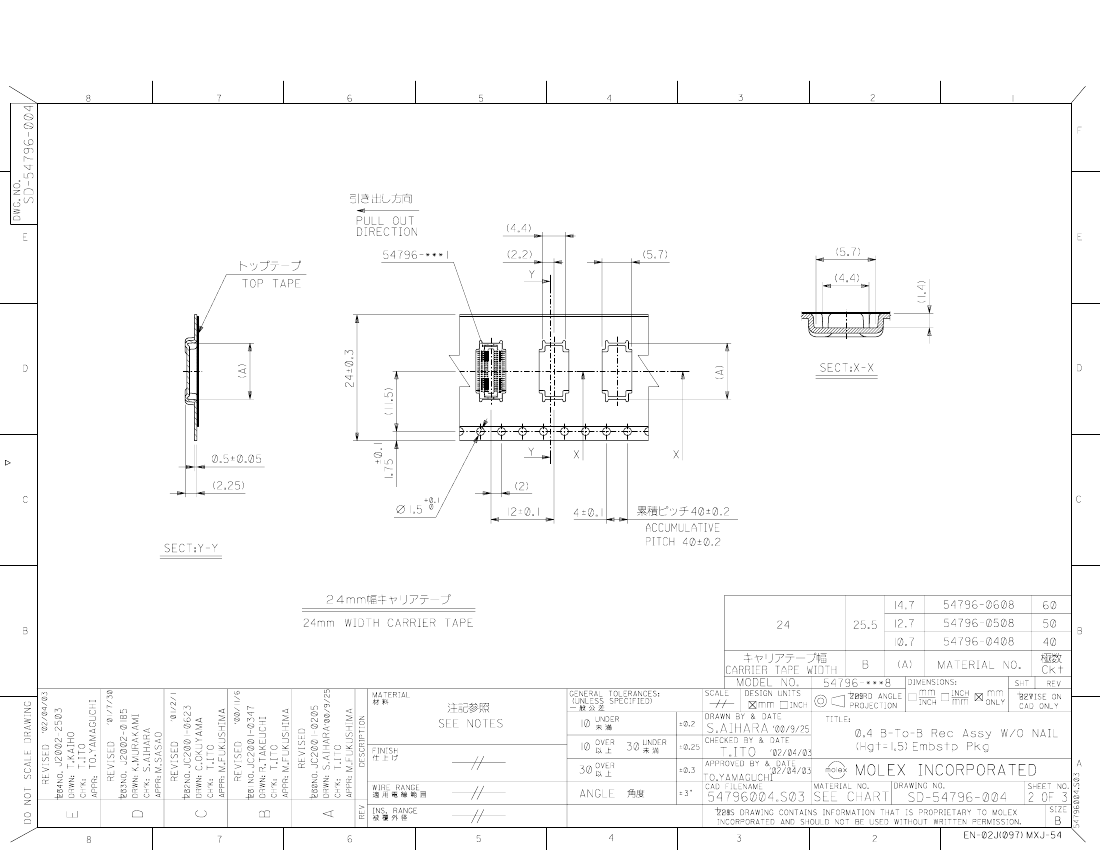

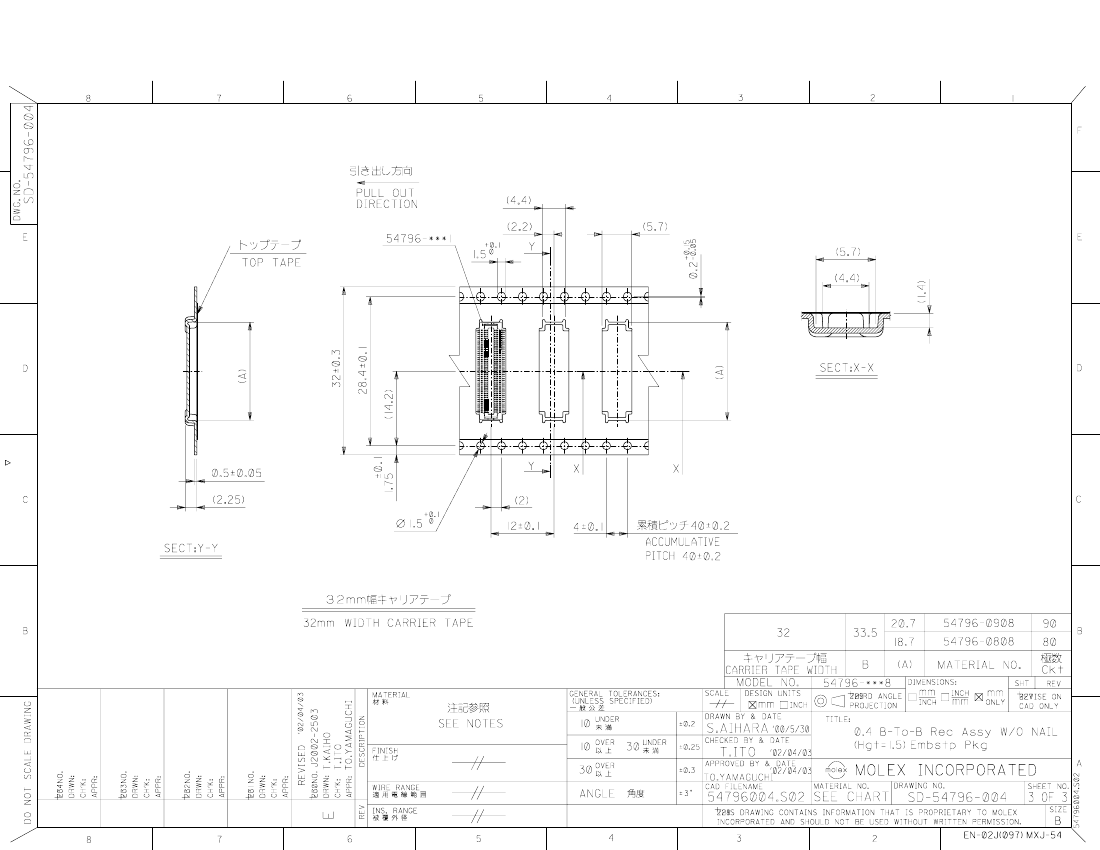

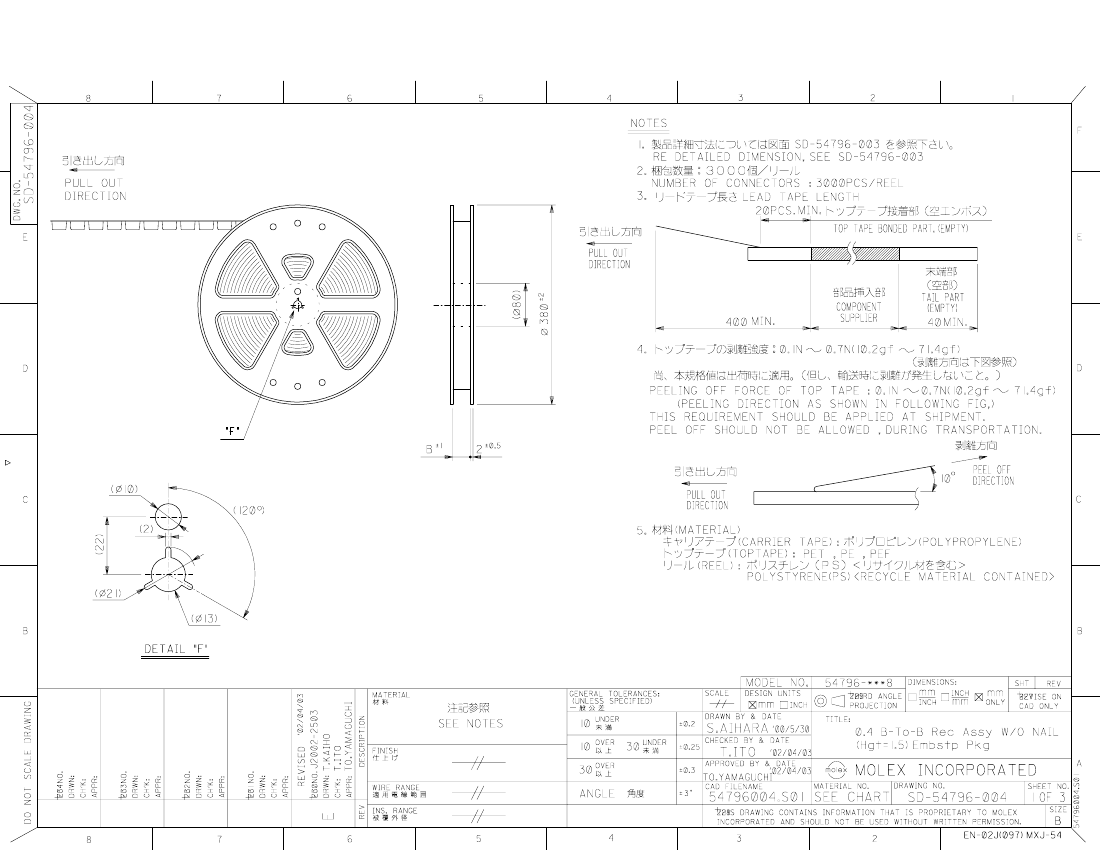

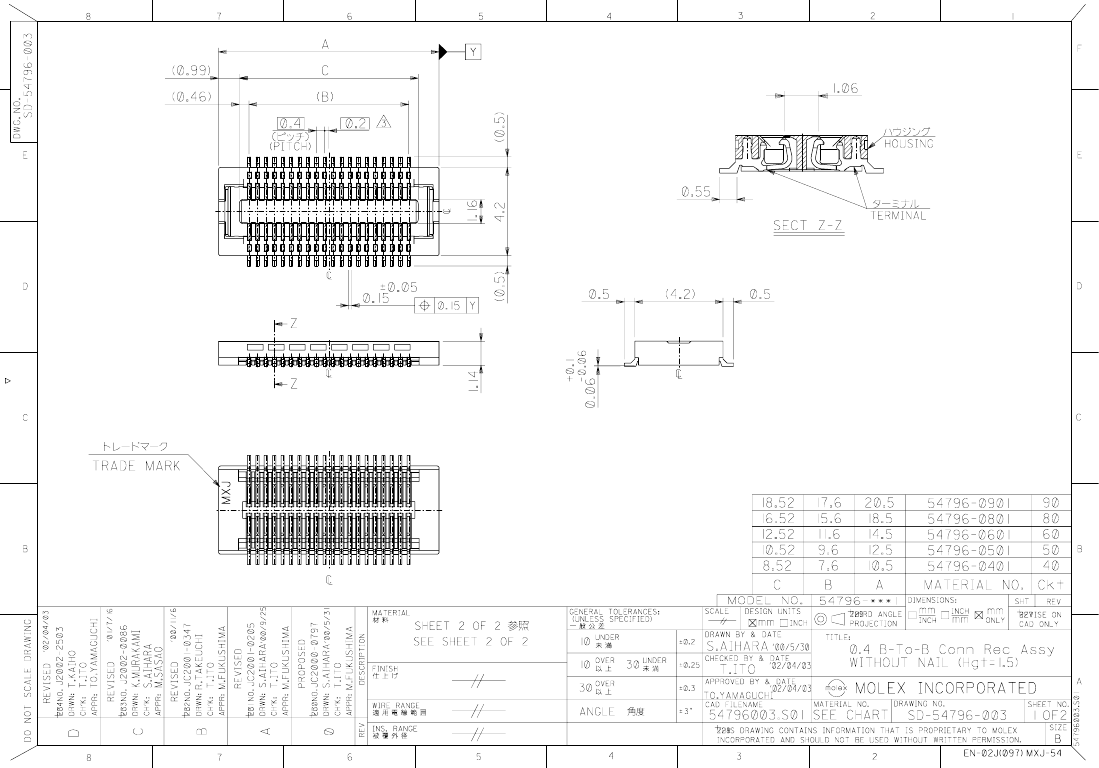

Preview

Download Datasheet

View All

54796-0601 Related Products

	54796-0601	54796-0408	54796-0908	54796-0508	54796-0401	54796-0501	54796-0801	54796-0901
Description	Board Stacking Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle,	Board Stacking Connector, 40 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle	Board Stacking Connector, 90 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle	Board Stacking Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle	Board Stacking Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle,	Board Stacking Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle,	Board Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle,	Board Stacking Connector, 90 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle,
Reach Compliance Code	unknown	compliant	compliant	compliant	unknown	unknown	unknown	unknown
Other features	SLIMSTACK, BLADE ON BEAM CONTACT	SLIMSTACK, BLADE ON BEAM CONTACT	SLIMSTACK, BLADE ON BEAM CONTACT	SLIMSTACK, BLADE ON BEAM CONTACT	SLIMSTACK, BLADE ON BEAM CONTACT	SLIMSTACK, BLADE ON BEAM CONTACT	SLIMSTACK, BLADE ON BEAM CONTACT	SLIMSTACK, BLADE ON BEAM CONTACT
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	54796	54796	54796	54796	54796	54796	54796	54796
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.4 mm	0.4 mm	0.4 mm	0.4 mm	0.4 mm	0.4 mm	0.4 mm	0.4 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	60	40	90	50	40	50	80	90
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Molex	Molex	Molex	-	Molex	Molex	Molex	Molex
ECCN code	EAR99	-	-	-	EAR99	EAR99	EAR99	EAR99
body width	0.165 inch	-	-	-	0.165 inch	0.165 inch	0.165 inch	0.165 inch
subject depth	0.045 inch	-	-	-	0.045 inch	0.045 inch	0.045 inch	0.045 inch
body length	0.571 inch	-	-	-	0.413 inch	0.492 inch	0.728 inch	0.807 inch
Contact to complete cooperation	AU ON NI	GOLD OVER NICKEL	-	GOLD OVER NICKEL	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	-	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	-	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	-	-	-	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Contact style	BELLOWED TYPE	-	-	-	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	250VAC V	-	-	-	250VAC V	250VAC V	250VAC V	250VAC V
Durability	30 Cycles	-	-	-	30 Cycles	30 Cycles	30 Cycles	30 Cycles
maximum insertion force	.8062 N	-	-	-	1.2232 N	.973 N	.6116 N	.6672 N
Insulation resistance	100000000 Ω	-	-	-	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	-	-	-	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	-	-	-	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.016 inch	-	-	-	0.016 inch	0.016 inch	0.016 inch	0.016 inch
Installation option 1	LOCKING MECH	-	-	-	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH
Number of connectors	ONE	-	-	-	ONE	ONE	ONE	ONE
PCB row number	2	-	-	-	2	2	2	2
Maximum operating temperature	85 °C	-	-	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-	-	-	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	-	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.699 mm	-	-	-	4.699 mm	4.699 mm	4.699 mm	4.699 mm
Plating thickness	10u inch	-	-	-	10u inch	10u inch	10u inch	10u inch
Rated current (signal)	0.3 A	-	-	-	0.3 A	0.3 A	0.3 A	0.3 A
Guideline	UL	-	-	-	UL	UL	UL	UL
reliability	COMMERCIAL	-	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Evacuation force-minimum value	.0834 N	-	-	-	.1112 N	.1112 N	.0556 N	.0556 N
