533287-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 533287-6

533287-6: Description135 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER; CategoryThe connector The connector; File Size219KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

533287-6 Overview

135 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER

533287-6 Parametric

Parameter Name	Attribute value
Objectid	1876982430
Reach Compliance Code	unknown
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	135

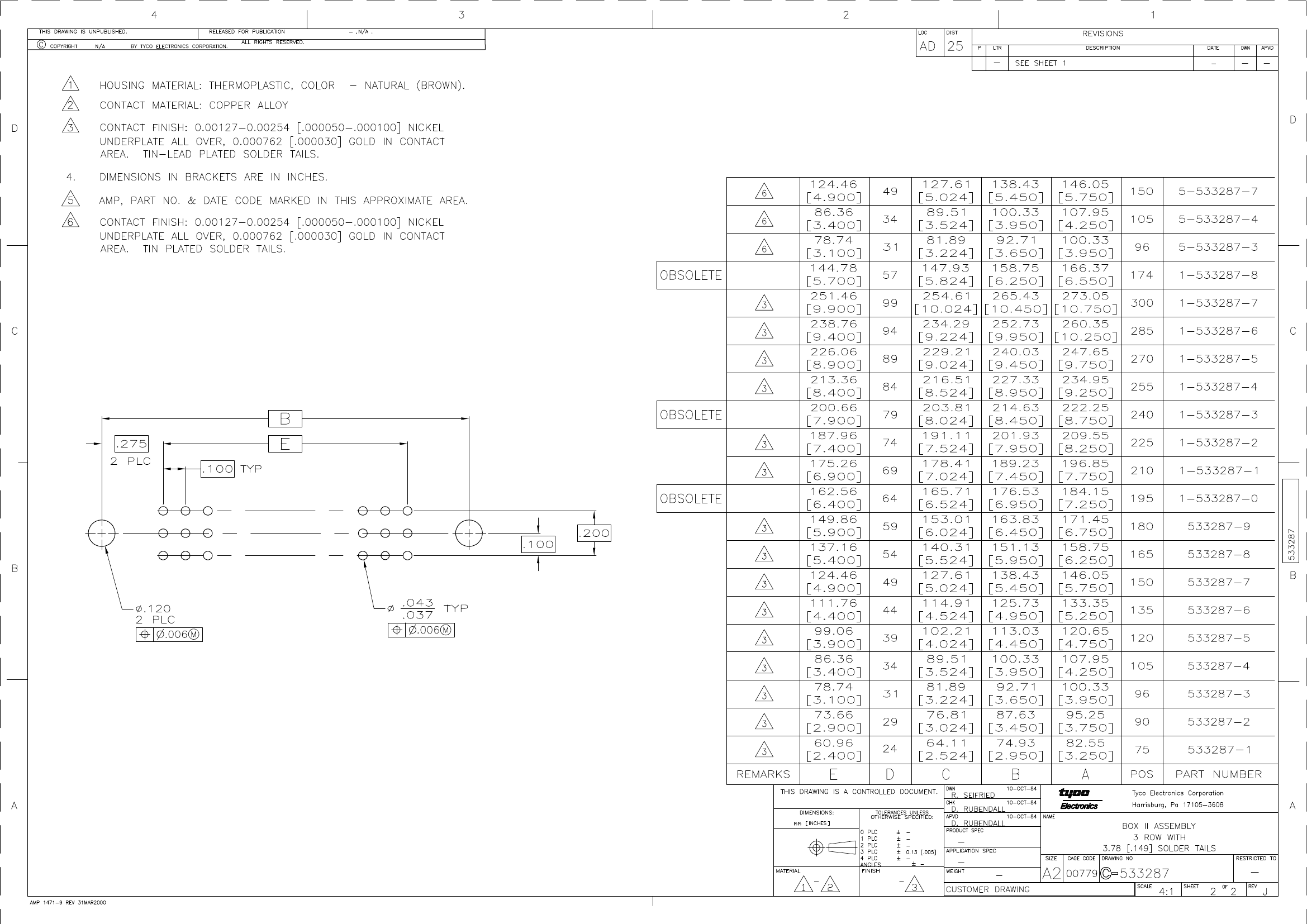

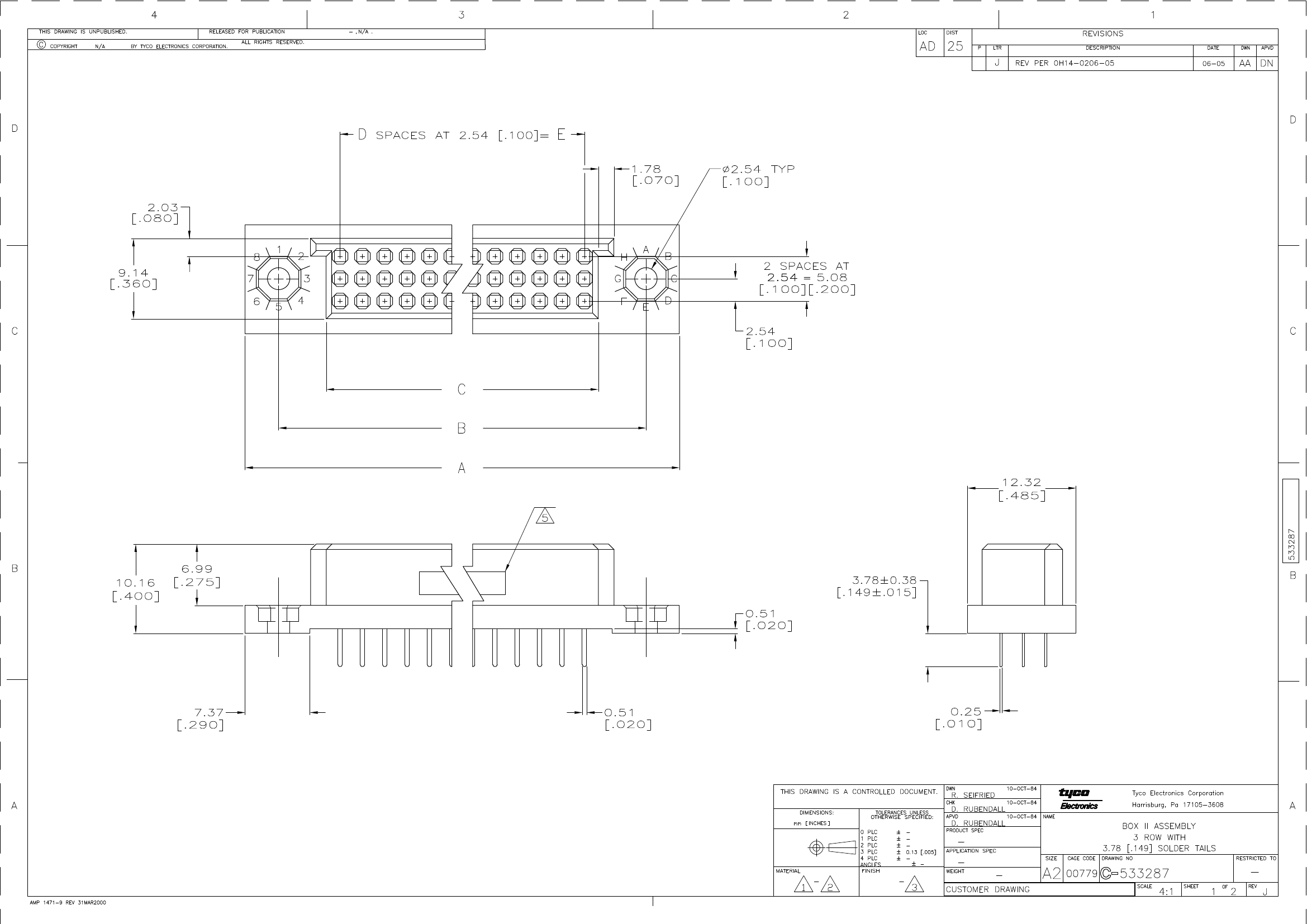

Preview

Download Datasheet

View All

533287-6 Related Products

	533287-6	1-533287-2	1-533287-4	1-533287-5	1-533287-6	1-533287-7	1-533287-0	1-533287-3	1-533287-8	533287-2
Description	135 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER	225 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER	255 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER	270 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER	285 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER	300 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER	195 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER	CONNECTOR, 240 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER	174 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER	90 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER
Objectid	1876982430	1876982359	1876982361	1876982362	1876982363	1876982364	1876982358	1876982360	1876982365	1876982429
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	3	3	3	3	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	135	225	255	270	285	300	195	240	174	90
