52609-1070 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52609-1070

52609-1070: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.098 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug, LEAD FREE; CategoryThe connector The connector; File Size273KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52609-1070 Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.098 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug, LEAD FREE

52609-1070 Parametric

Parameter Name	Attribute value
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT & T/R PACKAGE
Board mount options	FITTING NAIL
body width	0.205 inch
subject depth	0.315 inch
body length	0.648 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	40 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	POLYPHTHALAMIDE
MIL compliance	NO
Manufacturer's serial number	52609
Plug contact pitch	0.098 inch
Match contact row spacing	0.028 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	5.1054 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
UL Flammability Code	94V-0

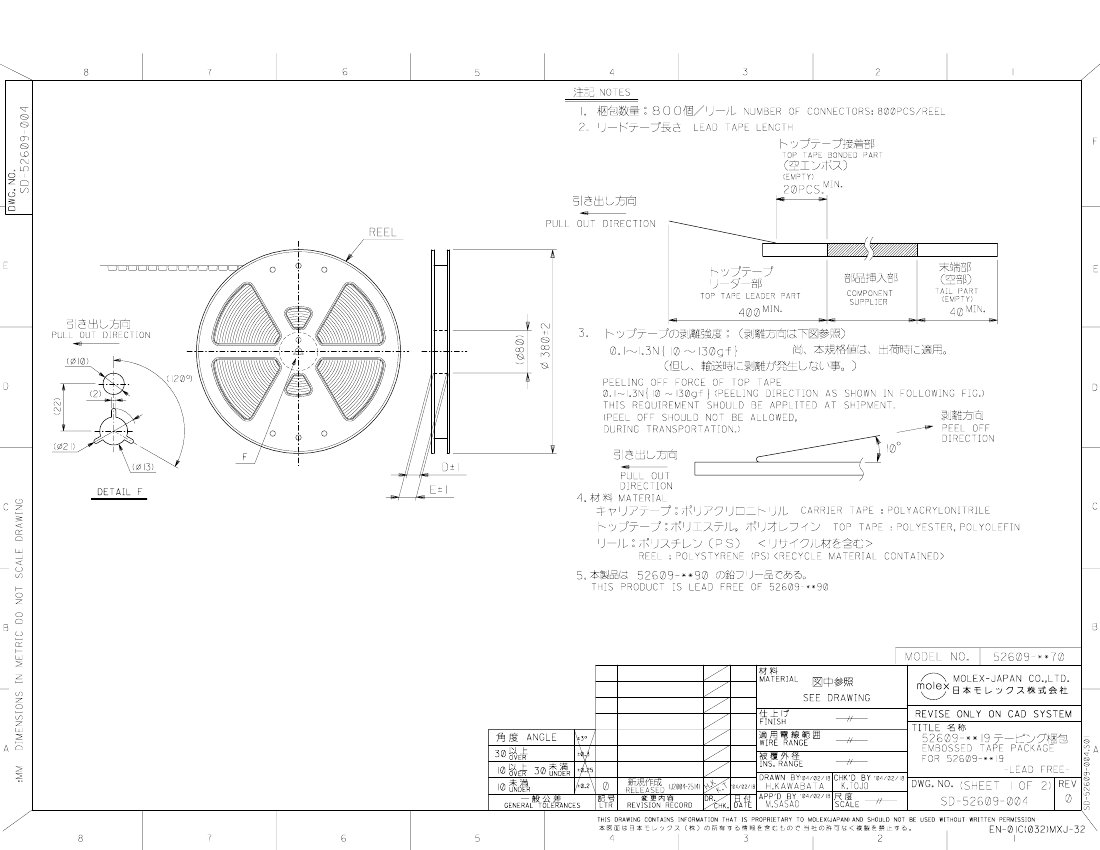

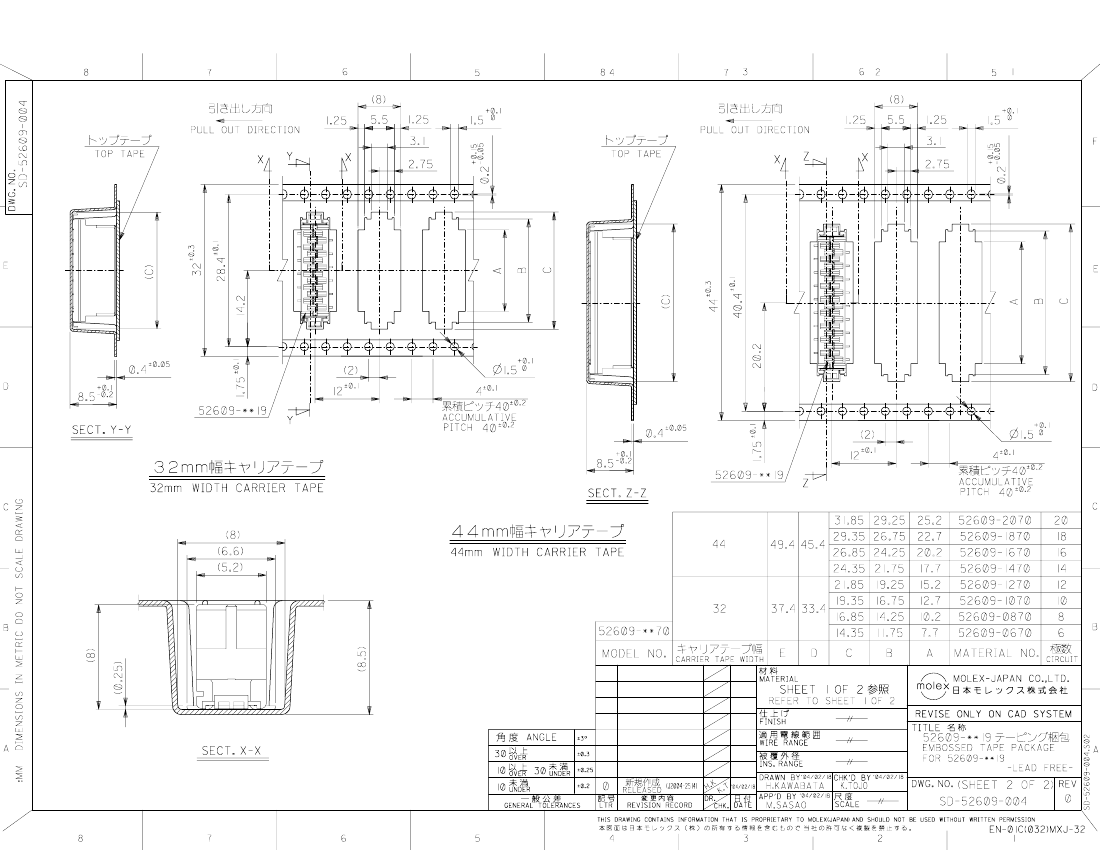

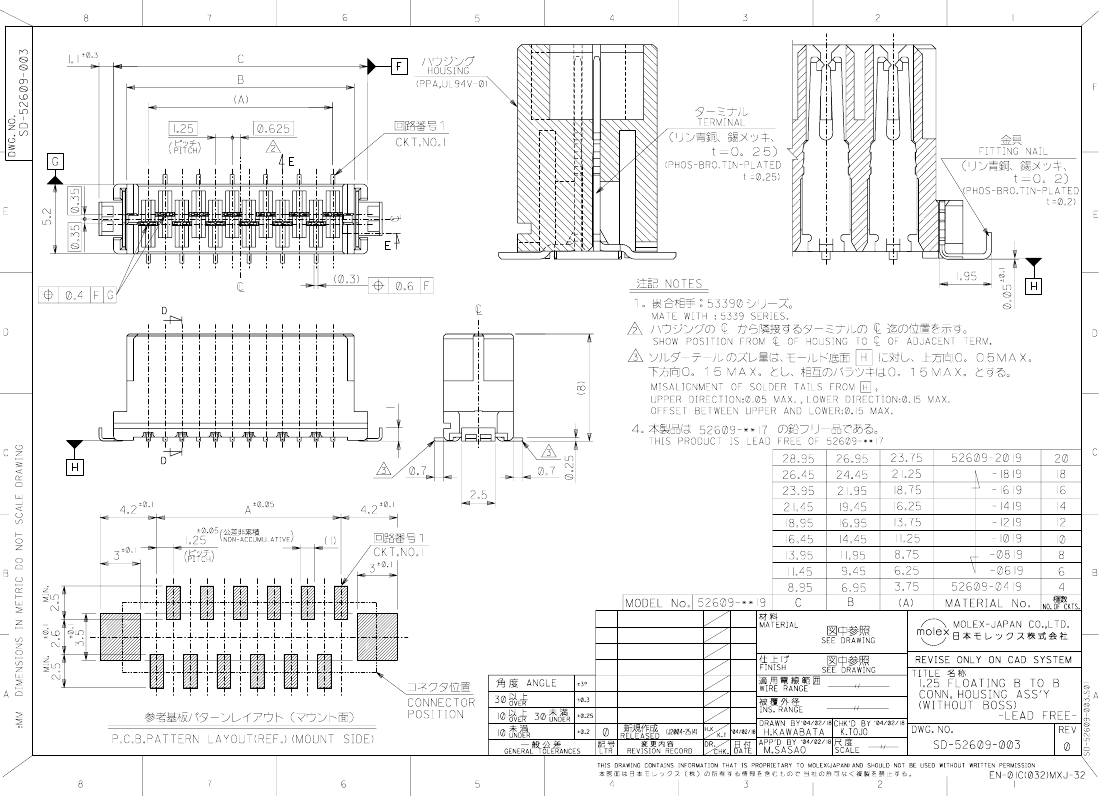

Preview

Download Datasheet

View All

52609-1070 Related Products

	52609-1070	52609-1670	52609-0670	52609-1270	52609-2070	52609-0870	52609-1470	52609-1870
Description	Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.098 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug, LEAD FREE	Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.098 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug, LEAD FREE	Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.098 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug, LEAD FREE	Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.098 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug, LEAD FREE	Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.098 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug, LEAD FREE	Board Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.098 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug, LEAD FREE	Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.098 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug, LEAD FREE	Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.098 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug, LEAD FREE
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT & T/R PACKAGE	ROHS COMPLIANT & T/R PACKAGE	ROHS COMPLIANT & T/R PACKAGE	ROHS COMPLIANT & T/R PACKAGE	ROHS COMPLIANT & T/R PACKAGE	ROHS COMPLIANT & T/R PACKAGE	ROHS COMPLIANT & T/R PACKAGE	ROHS COMPLIANT & T/R PACKAGE
Board mount options	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	0.205 inch	0.205 inch	0.205 inch	0.205 inch	0.205 inch	0.205 inch	0.205 inch	0.205 inch
subject depth	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch
body length	0.648 inch	0.943 inch	0.451 inch	0.746 inch	1.14 inch	0.549 inch	0.844 inch	1.041 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	SN ON NI	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Contact style	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	POLYPHTHALAMIDE	POLYPHTHALAMIDE	POLYPHTHALAMIDE	POLYPHTHALAMIDE	POLYPHTHALAMIDE	POLYPHTHALAMIDE	POLYPHTHALAMIDE	POLYPHTHALAMIDE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	52609	52609	52609	52609	52609	52609	52609	52609
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Match contact row spacing	0.028 inch	0.028 inch	0.028 inch	0.028 inch	0.028 inch	0.028 inch	0.028 inch	0.028 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	5.1054 mm	5.1054 mm	5.1054 mm	5.1054 mm	5.1054 mm	5.1054 mm	5.1054 mm	5.1054 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	10	16	6	12	20	8	14	18
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Molex	-	Molex	Molex	Molex	Molex	Molex	Molex
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	-	conform to	conform to
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
