52011-1110 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52011-1110

52011-1110: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.098 inch Pitch, Wire Trap Terminal,; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

52011-1110 Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.098 inch Pitch, Wire Trap Terminal,

52011-1110 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PUSH-COVER STYLE
body width	0.276 inch
subject depth	0.394 inch
body length	1.204 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.098 inch
Plug information	RIBBON CABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.5 mm
Termination type	WIRE TRAP
Total number of contacts	11
UL Flammability Code	94V-0

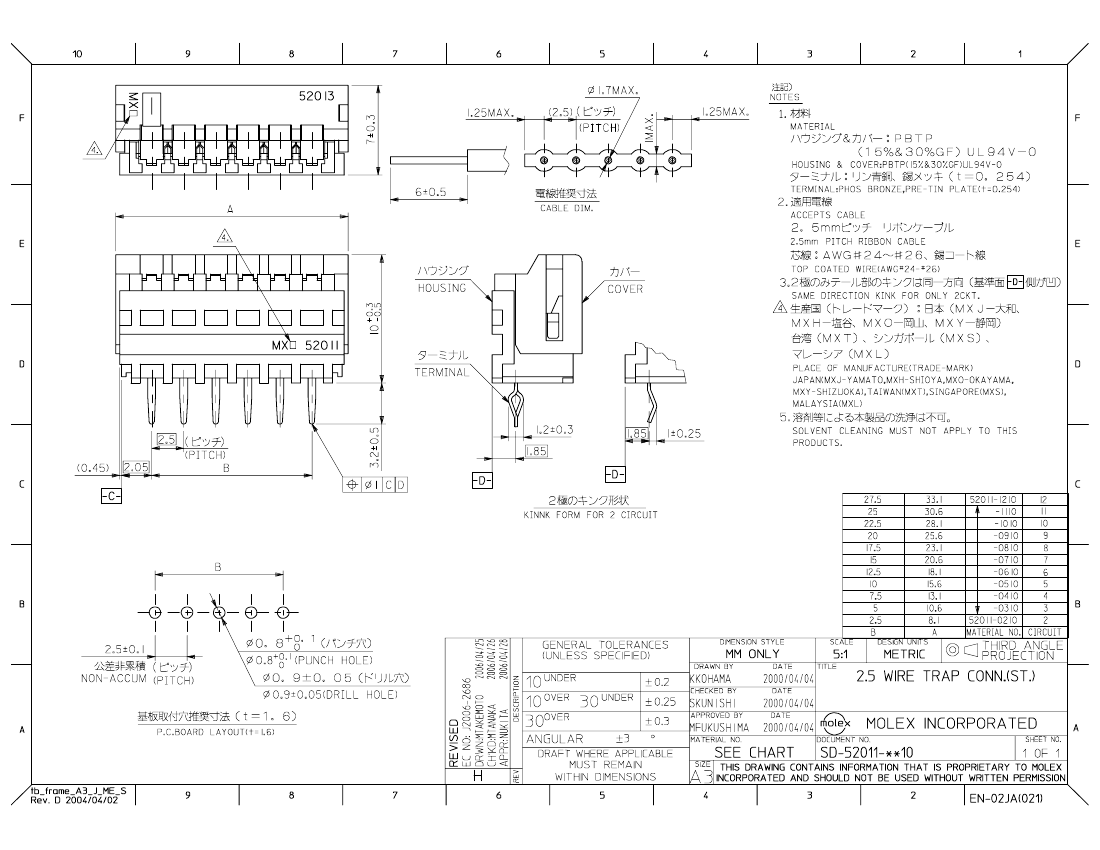

Preview

Download Datasheet

View All

52011-1110 Related Products

	52011-1110	52011-0310	52011-0410	52011-0510	52011-0810	52011-0910
Description	Board Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.098 inch Pitch, Wire Trap Terminal,	Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.098 inch Pitch, Wire Trap Terminal	Board Connector, 4 Contact(s), 1 Row(s), Female, Straight, 0.098 inch Pitch, Wire Trap Terminal,	Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.098 inch Pitch, Wire Trap Terminal,	Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.098 inch Pitch, Wire Trap Terminal,	Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.098 inch Pitch, Wire Trap Terminal
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	PUSH-COVER STYLE	PUSH-COVER STYLE	PUSH-COVER STYLE	PUSH-COVER STYLE	PUSH-COVER STYLE	PUSH-COVER STYLE
body width	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch
subject depth	0.394 inch	0.394 inch	0.394 inch	0.394 inch	0.394 inch	0.394 inch
body length	1.204 inch	0.417 inch	0.516 inch	0.614 inch	0.909 inch	1.008 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Plug information	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Termination type	WIRE TRAP	WIRE TRAP	WIRE TRAP	WIRE TRAP	WIRE TRAP	WIRE TRAP
Total number of contacts	11	3	4	5	8	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Rated current (signal)	3 A	3 A	-	3 A	-	3 A
