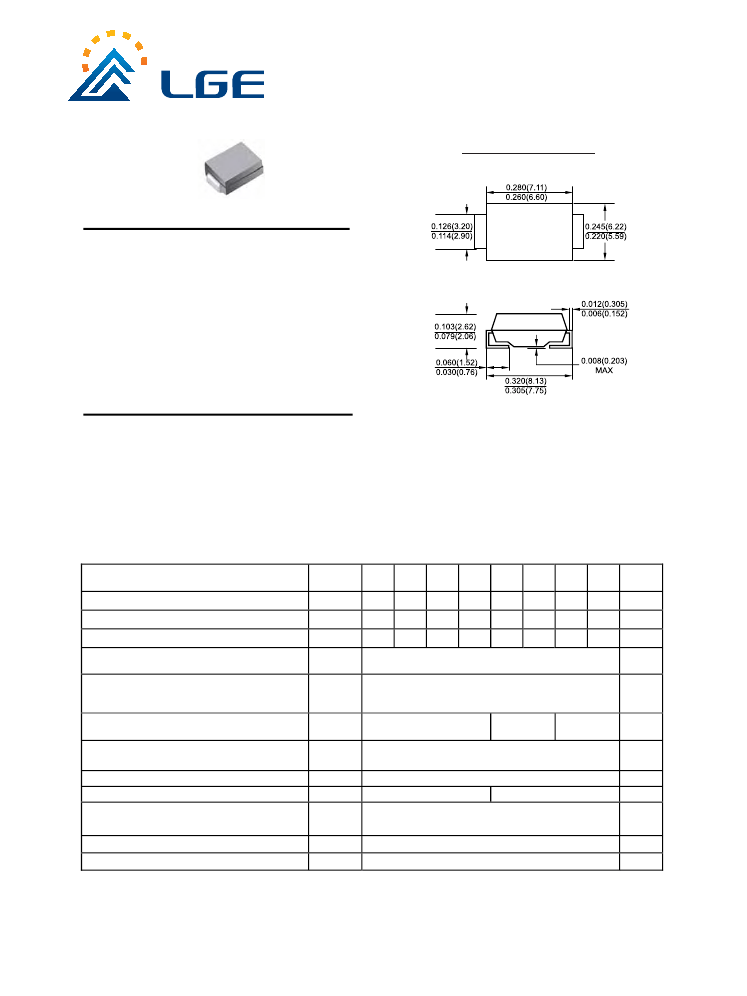

ES3A-ES3J
3.0AMPS Surface Mount Super Fast Rectifiers
SMC/DO-214AB
Features
Glass passivated junction chip
For surface mounted applications
Low profile package
Built-in strain relief
Ideal for automated placement
Easy pick and place
Super fast recovery time for high efficiency
Glass passivated chip junction
High temperature soldering:
260
o
C/10 seconds at terminals
Plastic material used carries Underwriters
Laboratory Classification 94V-0
Mechanical Data
Cases: Molded plastic
Terminals: Pure tin plated, lead free.
Polarity: Indicated by cathode band
Weight: 0.21 gram
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Symbol
ES ES ES ES
Type Number
3A
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
See Fig. 1
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated
Load (JEDEC method ) @T
L
= 100
o
C
Maximum Instantaneous Forward Voltage
@ 3.0A
Maximum DC Reverse Current @ T
A
=25
o
C
at Rated DC Blocking Voltage @ T
A
=100
o
C
Maximum Reverse Recovery Time ( Note 1 )
Typical Junction Capacitance ( Note 2 )
Typical Thermal Resistance (Note 3)
Operating Temperature Range
Storage Temperature Range
Notes:
3B
3C
3D
ES
3F
ES
3G
ES
3H
ES
3J
Units
V
V
V
A
A
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJA
R
θJL
T
J
50
35
50
100 150 200 300 400 500 600
70
105 140 210 280 350 420
100 150 200 300 400 500 600
3.0
100
0.95
10
500
35
45
47
12
-55 to +150
-55 to +150
30
o
1.3
1.7
V
uA
uA
nS
pF
C
/W
o
o
T
STG
1. Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
2. Measured at 1 MHz and Applied V
R
=4.0 Volts
3. Units Mounted on P.C.B. with 0.6” x 0.6”(16mm x 16mm) Copper Pad Areas
C
C
http://www.luguang.cn
- 184
mail:lge@luguang.cn
ES3A-ES3J
3.0AMPS Surface Mount Super Fast Rectifiers

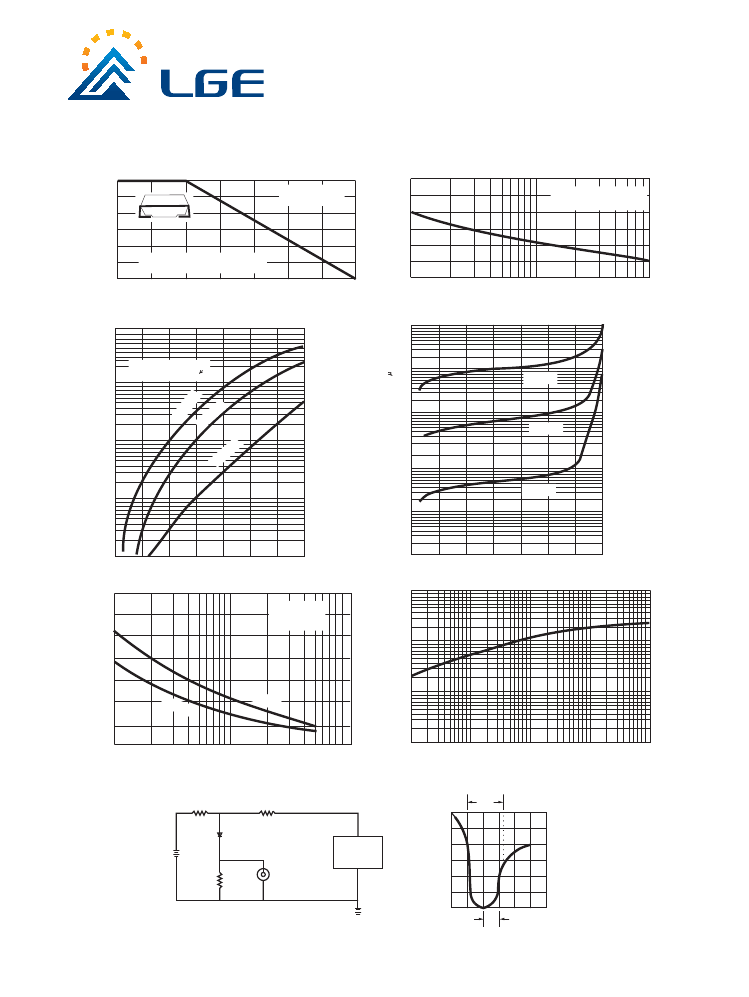

RATINGS AND CHARACTERISTIC CURVES (ES3A THRU ES3J)
AVERAGE FORWARD CURRENT. (A)
FIG.1- MAXIMUM FORWARD CURRENT DERATING
CURVE
3
RESISTIVE OR
INDUCTIVE LOAD
2
150
PEAK FORWARD SURGE
CURRENT. (A)
125
100
75
50
25
0
80
90
100
110
120
130
o
LEAD TEMPERATURE. ( C)
140
150
FIG.2- MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
8.3ms Single Half Sine Wave
o
(JEDEC Method) at T
L
=120 C
1
P.C.B. MOUNTED ON
0.6X0.6"(16X16mm) COPPER PADS
0
1
10
NUMBER OF CYCLES AT 60Hz
100
100
FIG.3- TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
FIG.4- TYPICAL REVERSE CHARACTERISTICS
1000
INSTANTANEOUS REVERSE CURRENT. ( A)
INSTANTANEOUS FORWARD CURRENT. (A)
10
Tj=25 C
PULSE WIDTH-300 S
1% DUTY CYCLE
0
100
Tj=100
0
C
3A
-D
ES
-G
E
S
3F
10
Tj=75
0
C
1
E
S
3H
-J
1
Tj=25
0
C
0.1
0.1
0.01
0.4
0.6
0.8
1.0
1.2
1.4
FORWARD VOLT
AGE. (V)
1.6
1.8
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLT
AGE. (%)
100
TRANSIENT THERMAL IMPEDANCE (
O
C/W)
105
JUNCTION CAPACITANCE.(pF)
90
75
60
45
30
FIG.5- TYPICAL JUNCTION CAPACIT
ANCE
Tj=25
0
C
f=1.0MHz
Vsig=50mVp-p
FIG.6- TYPICAL TRANSIENT THERMAL IMPEDANCE
10
ES3
ES3
F-J
1
A-
D
15
0
1
10
REVERSE VOLTAGE. (V)
100
0.1
0.01
0.1
1
T, HEATING TIME (sec.)
10
100
FIG.7- REVERSE RECOVERY TIME CHARACTERISTIC AND TEST CIRCUIT DIAGRAM
50W
NONINDUCTIVE
10W
NONINDUCTIVE
+0.5A
(-)
DUT
(+)
50Vdc
(approx)
(-)
PULSE
GENERATOR
(NOTE 2)
1W
NON
INDUCTIVE
OSCILLOSCOPE
(NOTE 1)
(+)
0
-0.25A
trr
NOTES: 1. Rise Time=7ns max. Input Impedance=
1 megohm 22pf
2. Rise Time=10ns max. Sourse Impedance=
50 ohms
-1.0A
1cm
SET TIME BASE FOR
5/ 10ns/ cm
http://www.luguang.cn
mail:lge@luguang.cn
