SILICON Z-DIODES AND TRANSIENT VOLTAGE SUPPRESSORS
BZT03C6V2 THRU BZT03C270
FEATURES
PLASTIC PACKAGE HAS UNDERWRITERS LABORATORY
FLAMMABILITY CLASSIFICATION 94V-0
EXCELLENT CLAMPING CAPABILITY
LOW ZENER IMPEDANCE
FAST RESPONSE TIME: TYPICALLY LESS THAN 1.0 ps FROM
0 VOLTS TO BV MIN
HIGH TEMPERATURE SOLDERING GUARANTEED:260°C/10S
/.375” (9.5mm) LEAD LENGTH/5LBS., (2.3KG) TENSION
MECHANICAL DATA
CASE: MOLDED PLASTIC, DO15, DIMENSIONS
IN INCHES AND (MILLIMETERS)
TERMINALS: AXIAL LEADS, SOLDERABLE PER MIL-STD-202,
METHOD 208
POLARITY: COLOR BAND DENOTED CATHODE EXCEPT
BIPOLAR
WEIGHT: 0.4 GRAMS
1.0(25.4)
MIN
.034(0.9)
.028(0.7)
.300(7.6)
.230(5.8)
.140(3.6)
.104(2.6)
1.0(25.4)
MIN
ABSOLUTE MAXIMUM RATINGS
Tj = 25℃
RATINGS
POWER DISSIPATION
TEST CONDITIONS
l=10mm；T
L
=25℃
Tamb=25℃
REPETITIVE PEAK REVERSE POWER DISSIPATION
NON REPETITIVE PEAK SURGE POWER DISSIPATION
JUNCTION TEMPERATURE
STORAGE TEMPERATURE RANGE
MAXIMUM THERMAL RESISTANCE
Tj = 25℃
RATINGS
JUNCTION AMBIENT
TEST CONDITIONS
l=10mm；T
L
=CONSTANT
ON PC BOARD WITH SPACING 25mm
SYMBOL
R
th
JA
VALUE
46
100
UNITS
K/W
P
ZRM
Tp=100us；Tj=25℃
P
ZSM
T
J
T
STG
SYMBOL
P
V
VALUE
3.25
1.30
10
600
175
- 55 TO + 175
UNITS
W
W
W
W
℃
℃
ELECTRICAL CHARACTERISTICS
Tj = 25℃
RATINGS
FORWARD VOLTAGE
I
F
=0.5A
TEST CONDITIONS
SYMBOL
V
F
VALUE
1.2
UNITS
V
BZT03C6V2 THRU BZT03C270
Page: 1
RATINGS AND CHARACTERISTIC CURVE BZT03C6V2 THRU BZT03C270
CHARACTERISTICS（T
J
=25℃ unless otherwise specified）

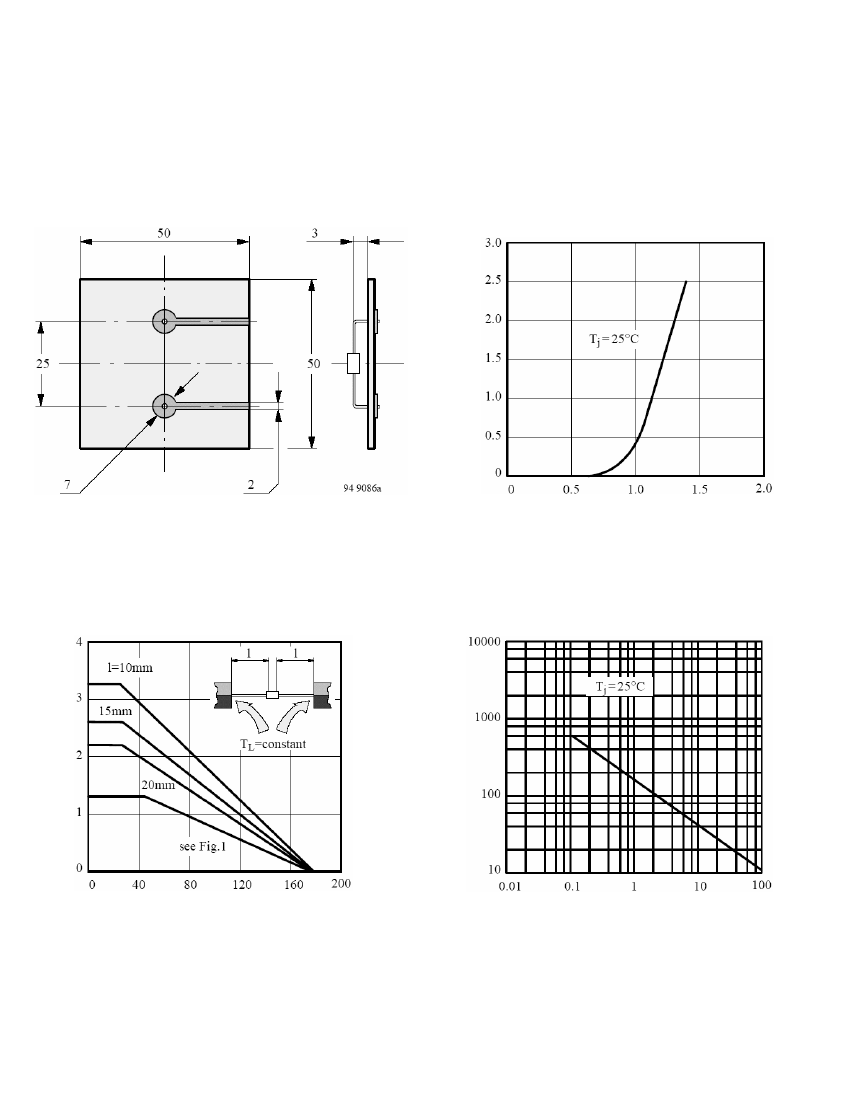

FIG. 1 –EPOXY GLASS HARD TISSUE ,
BOARD THICKNESS 1.5mm ,
R
th
JA
≦
100K/W
FIG. 2 – FORWARD CURRENT VS. FORWARD
VOLTAGE
I
F
– FORWARD CURRENT（A）
VF – FORWARD VOLTAGE（V）
FIG. 3 –TOTAL POWER DISSIPATION VS.
AMBIENT TEMPERATURE
P
tot
– TOTAL POWER DISSIPATION（W）
P
ZSM
– NON-REPETITIVE SURGE POWER
DISSIPATION（W）
REPETITIVE SURGE POWER
IPATION VS. PULS LENGTH
Tamb – AMBIENT TEMPERATURE（℃）
Tp – PULSE LENGTH（ms）
BZT03C6V2 THRU BZT03C270
Page: 4
