TECHNICAL DATA SHEET
N 50
Ω

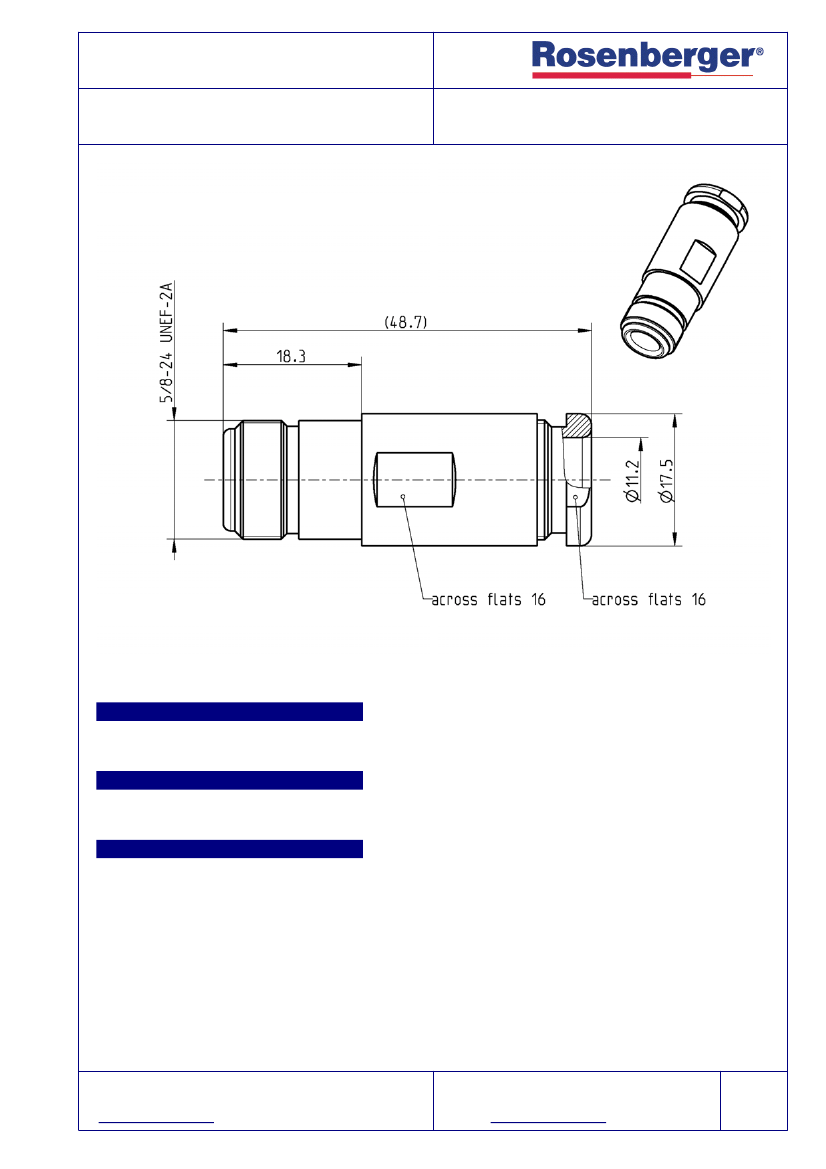

STRAIGHT JACK
53K102-015N5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-16, MIL-PRF-39012, CECC 22210
Documents
Assembly instruction
53 B
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Material
Beryllium copper
Brass
Brass
PTFE
Silicone
Plating
AuroDur, gold plated
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
N 50
Ω
STRAIGHT JACK
53K102-015N5
50
Ω
DC to 11 GHz
≥
35 dB, DC to 2.5 GHz
≥
25 dB, 2.5 to 4 GHz
≥
18 dB, 4 to 6 GHz
≤
0.05 dB, DC to 4 GHz
≥
5 x10
3
MΩ
≤
1 mΩ
≤
0.25 mΩ
2500 V rms
1400 V rms
1000 W @ 1 GHz
700 W @ 2 GHz
≥
128 dB up to 1 GHz
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Center contact captivation: axial
Coupling test torque
Recommended torque
min. 500
≥
28 N
max. 1.7 Nm
0.7 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
Degree of protection (mated pair)
2002/95/EC (RoHS)
-55°C to +155°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
IEC 60529, IP67
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
B
I
Tooling
N/A
Suitable cables
RG 213 /U, RG 214 /U, RG 393 /U
Packing
Standard
Weight
1 pce in bag
51.8 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
22/06/04
Approved
A. Fellner
Date
23/05/07
Rev.
e00
Engineering change number
07-0154
Name
S. Huber-Siegl
Date
23/05/07
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
