3A FAST EFFICIENT RECTIFIER
FE30-005 THRU FE30-08
FEATURES
LOW POWER LOSS, HIGH EFFICIENCY
LOW LEAKAGE
LOW FORWARD VOLTAGE DROP
HIGH CURRENT CAPABILITY
HIGH SPEED SWITCHING
HIGH RELIABILITY
HIGH CURRENT SURGE
GLASS PASSIVATED CHIP JUNCTION
MECHANICAL DATA
CASE: MOLDED PLASTIC, DO201AD, DIMENSIONS
IN INCHES AND (MILLIMETERS)
EPOXY: UL 94V-0 RATE FLAME RETARDANT
LEAD: MIL-STD-202E METHOD 208C GUARANTEED
MOUNTING POSITION: ANY
WEIGHT: 1.20 GRAMS
1.0(25.4)
MIN
.052(1.3)
.048(1.2)
.375(9.5)
.335(8.5)
.220(5.6)
.197(5.0)
1.0(25.4)
MIN
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED
SINGLE PHASE, HALF WAVE, 60 HZ, RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%
FE30 FE30 FE30 FE30 FE30 FE30 FE30 FE30 FE30
UNITS
RATINGS
SYMBOL
-005
-01
-015
-02
-03
-04
-05
-06
-08
MAXIMUM RECURRENT PEAK REVERSE VOLTAGE
V
RRM
50
100
150
200
300
400
500
600
800
V
MAXIMUM RMS VOLTAGE
V
RMS
35
70
105
140
210
280
350
420
560
V
MAXIMUM DC BLOCKING VOLTAGE
V
DC
50
100
150
200
300
400
500
600
800
V
MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT
I
O
3.0
A
0.375”(9.5mm) LEAD LENGTH AT TA=55°C
PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF
I
FSM
60
A
SINE-WAVE SUPERIMPOSED ON RATED LOAD
TYPICAL JUNCTION CAPACITANCE (NOTE 1)
C
J
70
PF
TYPICAL THERMAL RESISTANCE (NOTE 2)
STORAGE TEMPERATURE RANGE
OPERATING TEMPERATURE RANGE
R
θja
T
STG
T
OP
30
- 55 TO + 150
- 55 TO + 150
℃/W
℃
℃
ELECTRICAL CHARACTERISTICS (A
T
T
A
=25°C UNLESS OTHERWISE NOTED)
CHARACTERISTICS
MAXIMUM FORWARD VOLTAGE AT I
O
DC
MAXIMUM REVERSE CURRENT AT 25℃
MAXIMUM REVERSE CURRENT AT 100℃
SYMBOL
V
F
I
R
I
R
FE30
-005
FE30 FE30
-01
-015
0.98
FE30
-02
FE30 FE30
-03
-04
1.25
10
50
25
FE30 FE30
-05
-06
1.85
FE30
UNITS
-08
2.60
V
μA
μA
nS
MAXIMUM REVERSE RECOVERY TIME (NOTE 3)
T
RR
NOTE: 1. MEASURED AT 1 MHZ AND APPLIED REVERSE VOLTAGE 0F 4.0 VOLTS
3. REVERSE RECOVERY TEST CONDITIONS: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
2. BOTH LEADS ATTACHED TO HEAT SINK 20×20×1t(mm) COPPER PLATE AT LEAD LENGTH 5mm
FE30-005 THRU FE30-08
Page: 1

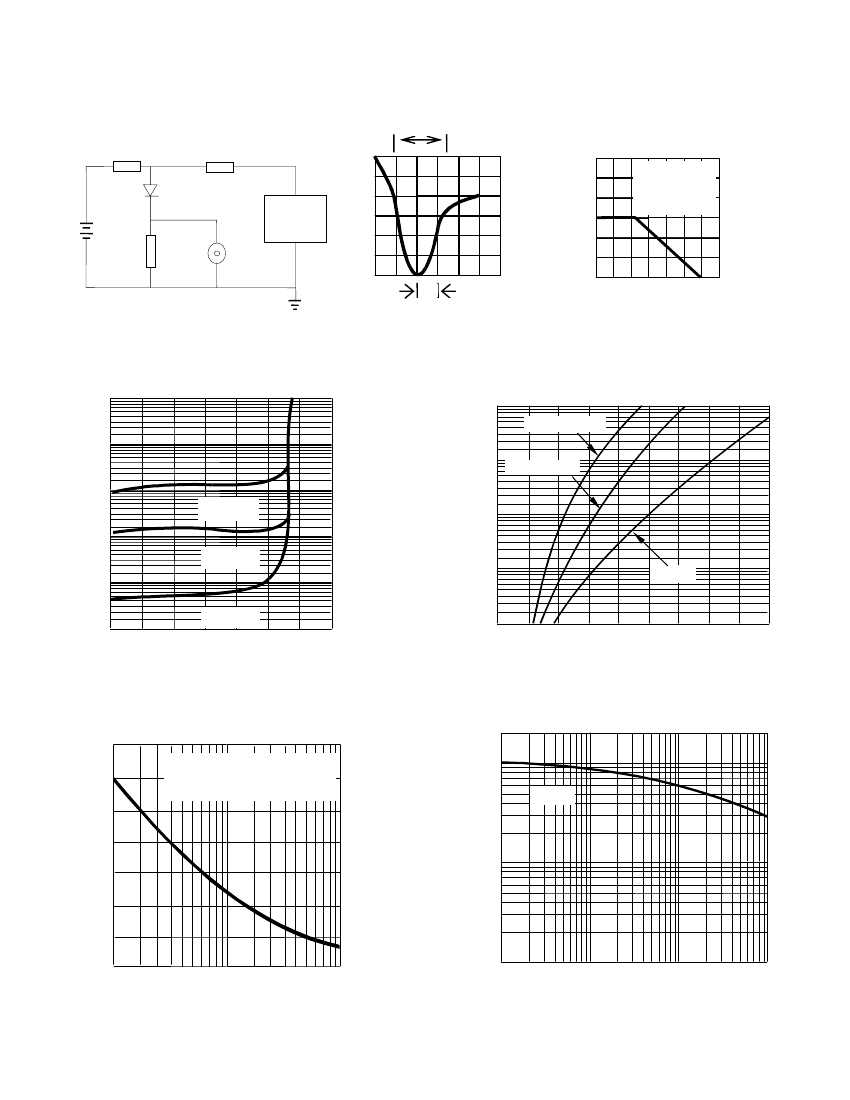

RATINGS AND CHARACTERISTIC CURVE FE30-005 THRU FE30-08
FIG. 1-TEST CIRCUIT DIAGRAM AND REVERSE
RECOVERY TIME CHARACTERISTIC
Trr
50Ω
NO INDUCTIVE
100Ω
NO INDUCTIVE
FIG. 2-TYPICAL FORWARD
CURRENT DERATING CURVE
+0.5A
(-)
D.U.T.
(+)
25 V
dc
(approx)
PULSE
GENERATOR
( NOTE 2 )
1Ω
NON
INDUCTIVE
OSCILLOSCOPE
( NOTE 1 )
0
-0.25A
(-)
(+)
-1.0A
1cm
6
5
4
3
2
1
0
AVERAGE FORWARD
CURRENT (A)
Single Phase Half
Wave 60 Hz
Resistive or
Inductive Load
NOTE: 1. RISE TIME=7ns MAX. INPUT
IMPEDANCE=1 MOhms 22PF
2. RISE TIME =10ns MAX. SOURCE
IMPEDANCE=50 OHMS
FIG. 3-TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT (uA)
SET TIME BASE
FOR 10/20 ns/cm
25 50 75 100 125 150 175
AMBIENT TEMPERATURE (
o
C)
FIG. 4-TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
INSTANTANEOUS FORWARD CURRENT (A)
1000
1000
100
100
10
10
1
1.0
0.1
0.1
T
J
=25
o
C
.01
0.01
20
40
60 80 100 120 140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
10.0
FE30-005~30-02
1.0
FE30-03~30-04
T
J
=125
o
C
T
J
=80
o
C
.1
.01
FE30-06
.001
.4
.6
.8 1.0 1.2 1.4 1.6 1.8 2.0
INSTANTANEOUS FORWARD VOLTAGE (V)
FIG. 5-MAXIMUN NON-REPETITIVE
FORWARD SURGE CURRENT
FIG. 6-TYPICAL JUNCTION CAPACITANCE
200
100
JUNCTION CAPACITANCE (pF)
70
PEAK FORWARD SURGE CURRENT (A)
60
8.3 ms Single Half Sine Wave
(JEDEC Method)
50
40
30
20
10
0
1
5
10 20
50
100
NUMBER OF CYCLES AT 60 Hz
40
20
10
6
4
2
1
T
J
=25
o
C
.1 .2
.4
1.0 2
4
10 20 40 100
REVERSE VOLTAGE (V)
FE30-005 THRU FE30-08
Page: 2
