8A FAST EFFICIENT GLASS PASSIVATED RECTIFIER
FEF80-02-LFR THRU FEF80-06-LFR
CASE : ITO-220AC ( FEF80-XX ) , FULLY INSULATED PACKAGE
O
B
C
D
1
2
J
K
B
C
D
E
F
G
H
I
J
K
L
M
O
MILLIMETERS
MIN
MAX
9.72
10.27
6.30
6.90
14.50
15.50
13.00
13.80
-
4.1
4.95
5.20
-
1.52
-
0.9
-
4.8
-
3.1
2.5
2.9
-
0.8
Ø 3.4
F
H
I
G
PIN 1
PIN 2
CASE
E
M
L
FEATURES
GLASS PASSIVATED CHIP JUNCTION
LOW FORWARD VOLTAGE
LOW THERMAL RESISTANCE
HIGH CURRENT CAPABILITY
HIGH VOLTAGE
ROHS
MECHANICAL DATA
CASE: TRANSFER MOLDED
TERMINAL: MIL-STD-202F METHOD 2026
POLARITY: AS MARKED
EPOXY: UL94V-0 FLAME RETARDANT MOLDING COMPOUND
MOUNTING POSITION: ANY
WEIGHT 1.81 GRAMS
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED
SINGLE PHASE, HALF WAVE, 60 HZ, RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%
RATINGS
MAXIMUM RECURRENT PEAK REVERSE VOLTAGE
MAXIMUM RMS VOLTAGE
MAXIMUM DC BLOCKING VOLTAGE
MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT SEE FIG.1
PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF
SINE-WAVE SUPERIMPOSED ON RATED LOAD
TYPICAL JUNCTION CAPACITANCE (NOTE 1)
TYPICAL THERMAL RESISTANCE (NOTE 2)
STORAGE TEMPERATURE RANGE
OPERATING TEMPERATURE RANGE
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
C
J
R
θjc
T
STG
T
OP
FEF80-02-LFR
200
140
200
FEF80-04-LFR
400
280
400
8.0
60
60
2.2
- 55 TO + 150
- 55 TO + 150
FEF80-06-LFR
600
420
600
UNITS
V
V
V
A
A
PF
℃/W
℃
℃
ELECTRICAL CHARACTERISTICS (A
T
T
A
=25°C UNLESS OTHERWISE NOTED)
CHARACTERISTICS
SYMBOL
FEF80-02-LFR
FEF80-04-LFR
1.25
10
100
25
FEF80-06-LFR
1.90
UNITS
V
μA
μA
nS
MAXIMUM FORWARD VOLTAGE AT I
O
PER LEG
V
F
0.98
MAXIMUM DC REVERSE CURRENT AT TA=25°C
I
R
MAXIMUM DC REVERSE CURRENT AT TA=100°C
I
R
MAXIMUM REVERSE RECOVERY TIME (NOTE 3)
T
RR
NOTES:
1. MEASURED AT 1 MHZ AND APPLIED REVERSE VOLTAGE 0F 4.0 VOLTS
2. THERMAL RESISTANCE JUNCTION TO CASE PER LEG MOUNTED ON HEAT SINK
3
. REVERSE RECOVERY TEST CONDITIONS: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
FEF80-02-LFR THRU FEF80-06-LFR
Page: 1

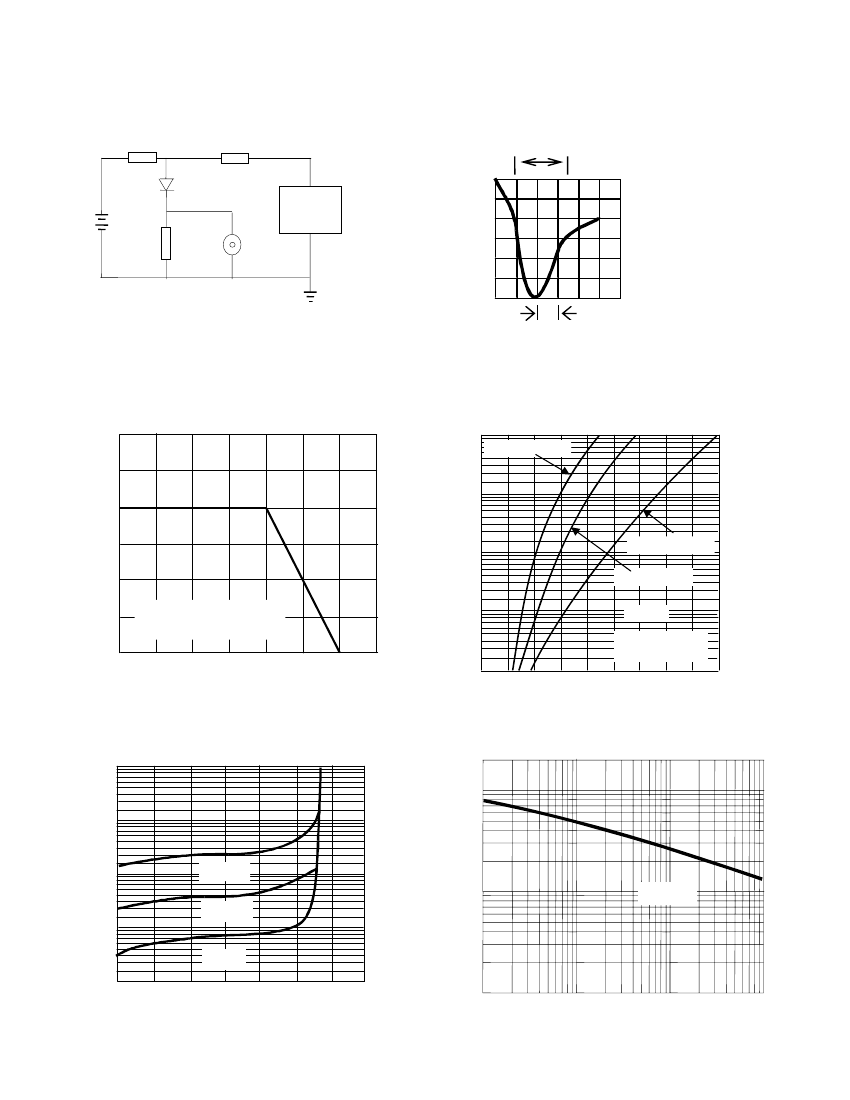

RATINGS AND CHARACTERISTIC CURVE FEF80-02-LFR THRU FEF80-06-LFR
FIG. 1 -TEST CIRCUIT DIAGRAM AND REVERSE
RECOVERY TIME CHARACTERISTIC
50Ω
NO INDUCTIVE
10Ω
NO INDUCTIVE
Trr
(-)
D.U.T.
(+)
25 V
dc
(approx)
PULSE
GENERATOR
( NOTE 2 )
1Ω
NON
INDUCTIVE
OSCILLOSCOPE
( NOTE 1 )
+0.5A
0
-0.25A
(-)
(+)
NOTE: 1. RISE TIME=7ns MAX. INPUT
IMPEDANCE=1 MOhms 22PF
2. RISE TIME =10 ns MAX. SOURCE
IMPEDANCE=50 OHMS
-1.0A
1cm
SET TIME BASE
FOR 10/20 ns/cm
FIG. 2 -MAXIMUM FORWARD
CURRENT DERATING CURVE
100.0
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 3-TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
FEF80-02-LF
AVERAGE FORWARD RECTIFIED
CURRENT (A)
10
8
6
4
2
0
25
50
75
100
125 150
175
AMBIENT TEMPERATURE (
o
C)
FIG. 4 -TYPICAL REVERSE CHARACTERISTICS
Single Phase Half Wave 60Hz
Resistive or Inductive Load
10.0
1.0
FEF80-06-LF
FEF80-04-LF
.1
T
J
=25
o
C
Pulse Width=300us
1% Duty Cycle
.01
.6 .8 1.0 1.2 1.4 1.6 1.8 2.0
INSTANTANEOUS FORWARD VOLTAGE (V)
2.2
FIG. 5 -TYPICAL JUNCTION CAPACITANCE
INSTANTANEOUS REVERSE CURRENT (uA)
1000
JUNCTION CAPACITANCE (pF)
200
100
40
20
10
6
4
2
1
.1 .2
.4
1.0
2
4
10
20 40
100
REVERSE VOLTAGE (V)
T
J
=25
o
C
100
10
T
J
=125
o
C
T
J
=80
o
C
1
T
J
=25
o
C
0.1
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FEF80-02-LFR THRU FEF80-06-LFR
Page: 2
