QMS-048-10-S-D-DP-RF1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> QMS-048-10-S-D-DP-RF1

QMS-048-10-S-D-DP-RF1: DescriptionBoard Connector, 96 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size5MB，6 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

QMS-048-10-S-D-DP-RF1 Overview

Board Connector, 96 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

QMS-048-10-S-D-DP-RF1 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	96

Preview

Download Datasheet

View All

LEAD STYLE

"H"

"J"

LEAD STYLE

"H"

"J"

-10

.212 [5.38] .2268 [5.761]

-11

.250 [6.35] .2650 [6.731]

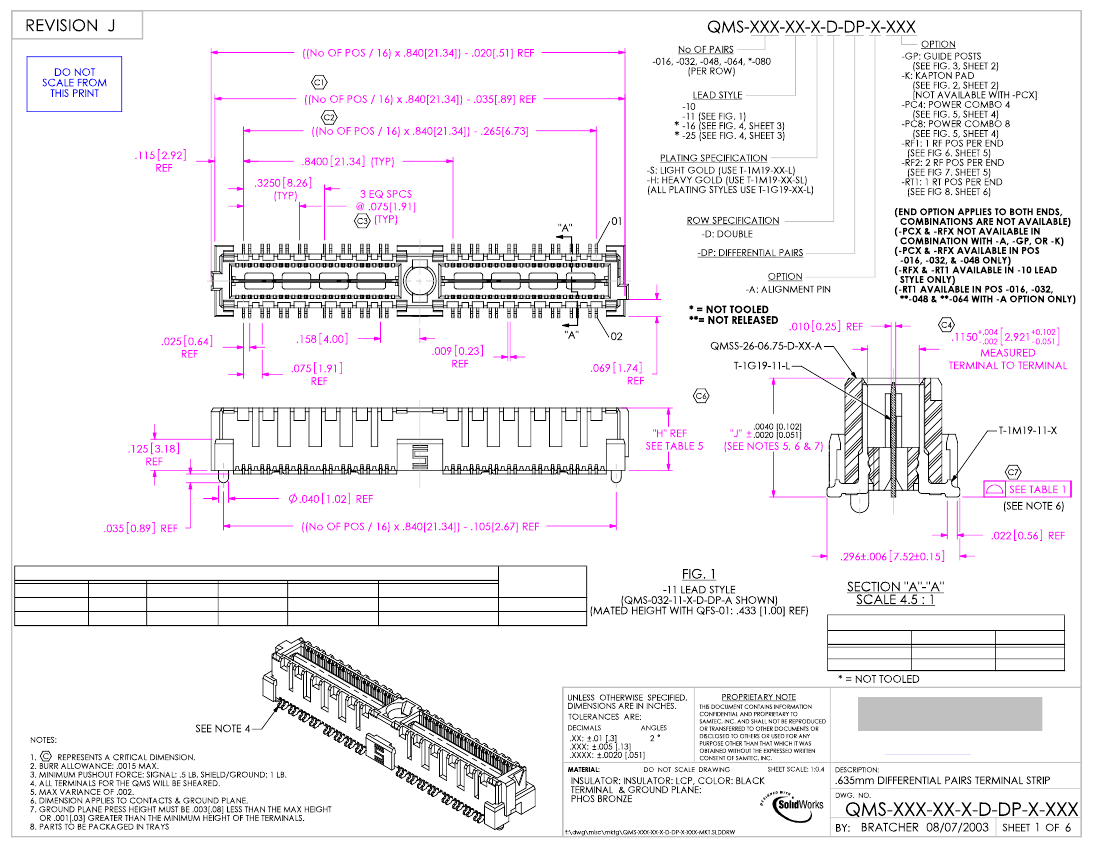

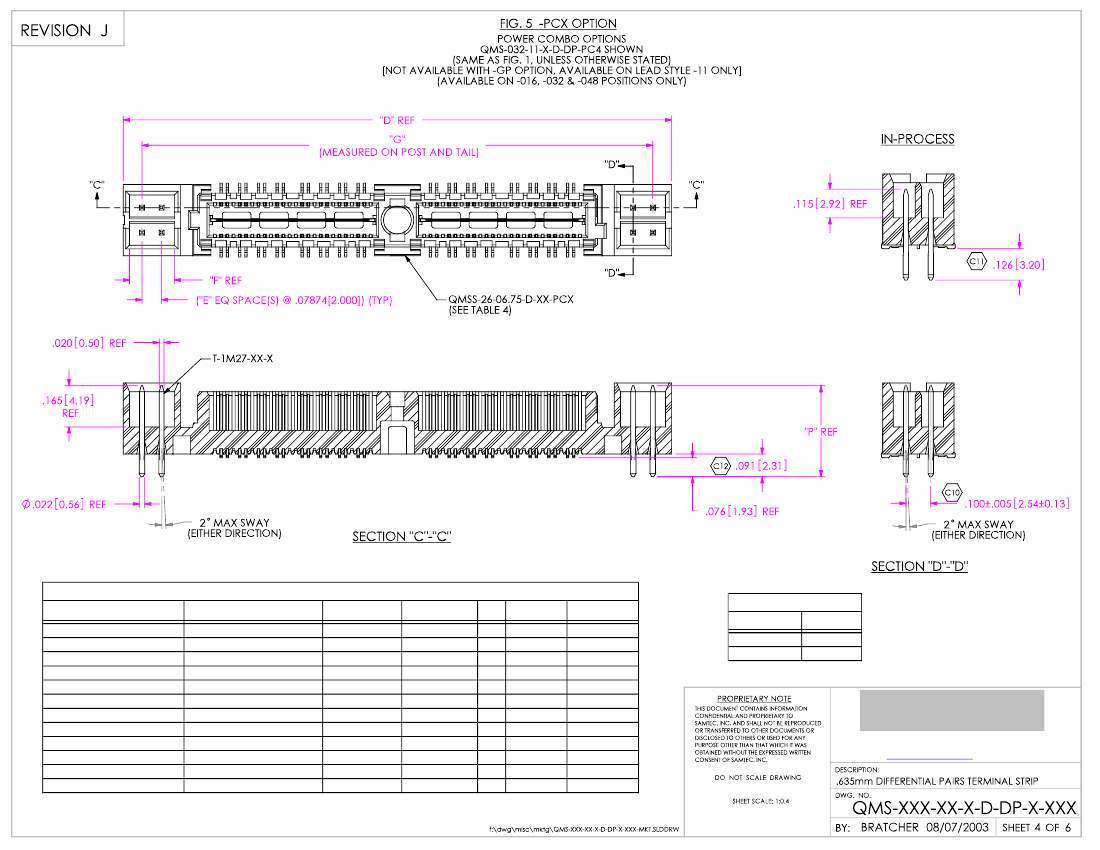

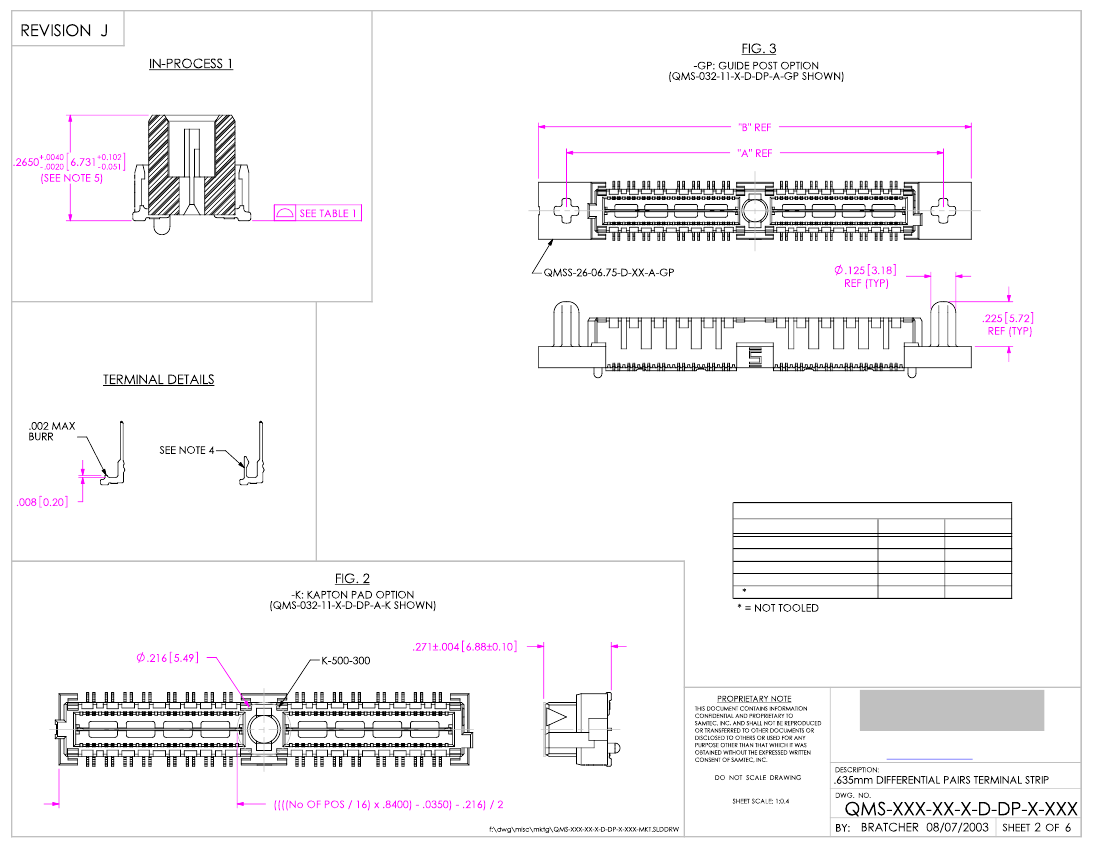

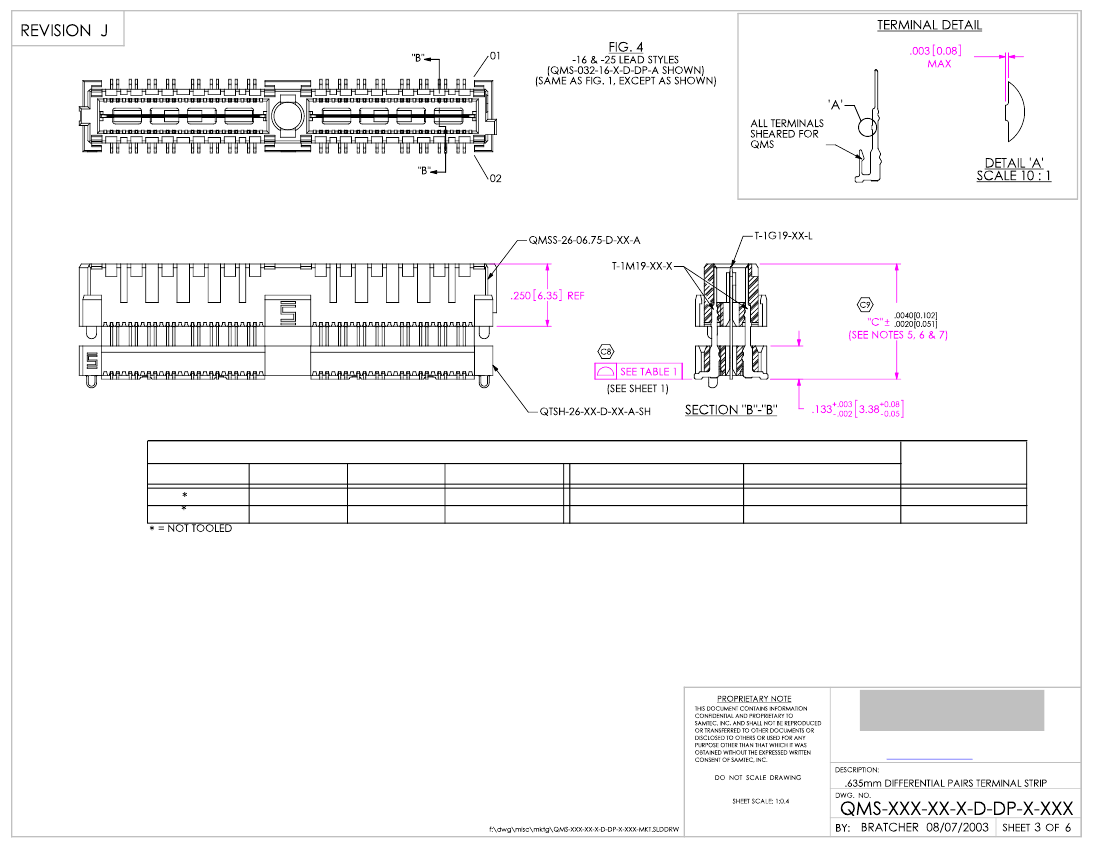

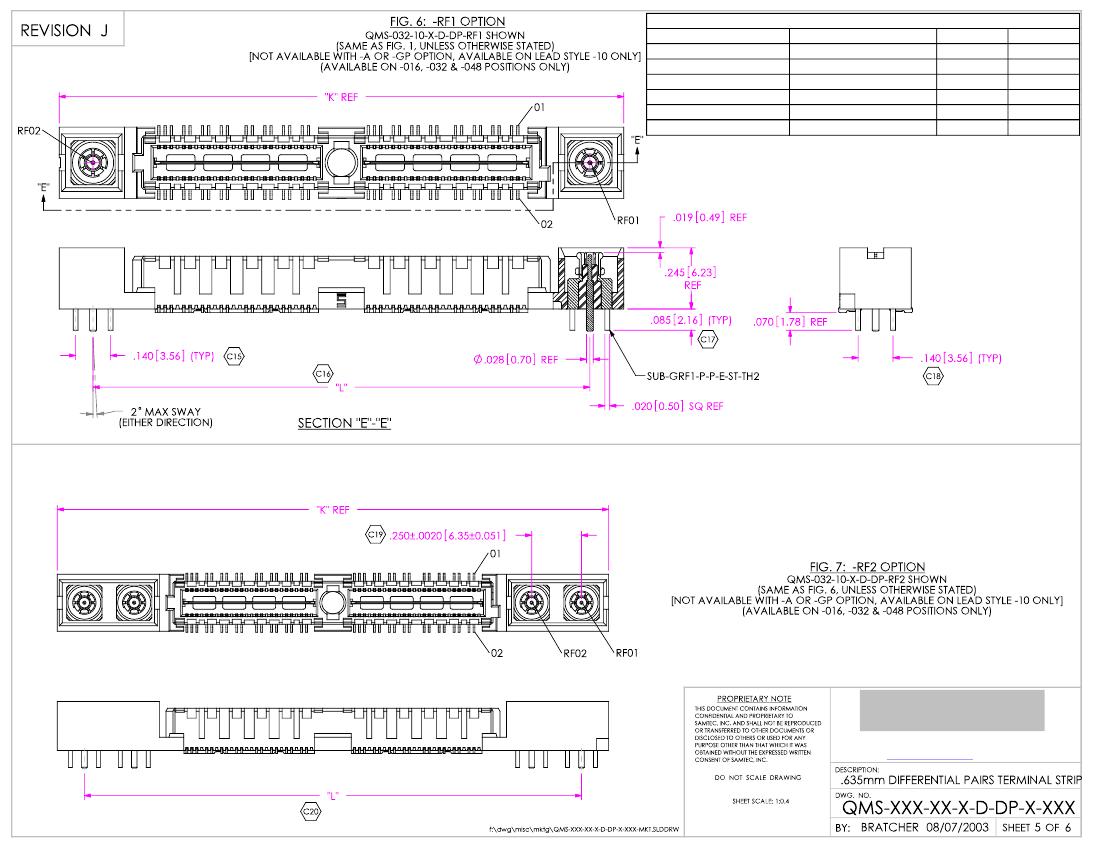

TABLE 5

TERMINAL GROUND PLANE

BODY

T-1M19-10-X

T-1G19-10-L

QMSS-26-05.75-D-XX-A .394[10.00] REF

T-1M19-11-X

T-1G19-11-L

QMSS-26-06.75-D-XX-A .433[11.00] REF

MATED HEIGHT

WITH QSS-01

TABLE 1

No OF POSITIONS

-016 THRU -048

-064 AND *-080

No OF BANKS

1 THRU 3

4 AND 5

COPLANARITY

.004[.10]

.006[.15]

S A M TE C

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

e-M a il:

IN F O @ S A M T E C .C O M

C O D E: 55322

QMS-048-10-S-D-DP-RF1 Related Products

	QMS-048-10-S-D-DP-RF1	QMS-080-01-H-D-DP-A-GP	QMS-048-10-S-D-DP-A-RT1	QMS-064-10-S-D-DP-A-RT1	QMS-080-01-S-D-DP-A-GP	QMS-032-11-S-D-DP-PC4	QMS-032-11-S-D-DP-PC8	QMS-048-01-S-D-DP-A-GP	QMS-048-10-S-D-DP-PC4	QMS-048-10-S-D-DP-PC8
Description	Board Connector, 96 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 160 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 96 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 128 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 160 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 64 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 64 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 96 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 96 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 96 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal
Reach Compliance Code	unknown	compliant	unknown	unknown	compliant	compliant	compliant	compliant	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	96	160	96	128	160	64	64	96	96	96
Maker	SAMTEC	-	-	-	-	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
