SMBJ5333A-SMBJ5362A
5000mW
ZENER DIODES
FEATURES :
* Complete Voltage Range 3.3 to 28 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current
MECHANICAL DATA
* Case : SMB (DO-214AA) Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Lead formed for Surface mount
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.093 gram
MAXIMUM RATINGS
Rating at 25
°
C ambient temperature unless otherwise specified
Rating
DC Power Dissipation at T
L
= 75
°C
(Note1)
Maximum Forward Voltage at I
F
= 200 mA
Junction Temperature Range
Storage Temperature Range
Symbol
P
D
V
F
T
J
Ts
Value
5.0
1.2
- 55 to + 150
- 55 to + 150
Unit
W
V
°C
°C
Note :
2
(1) T
L
= Lead temperature at 5.0 mm ( 0.013 mm thick ) copper land areas

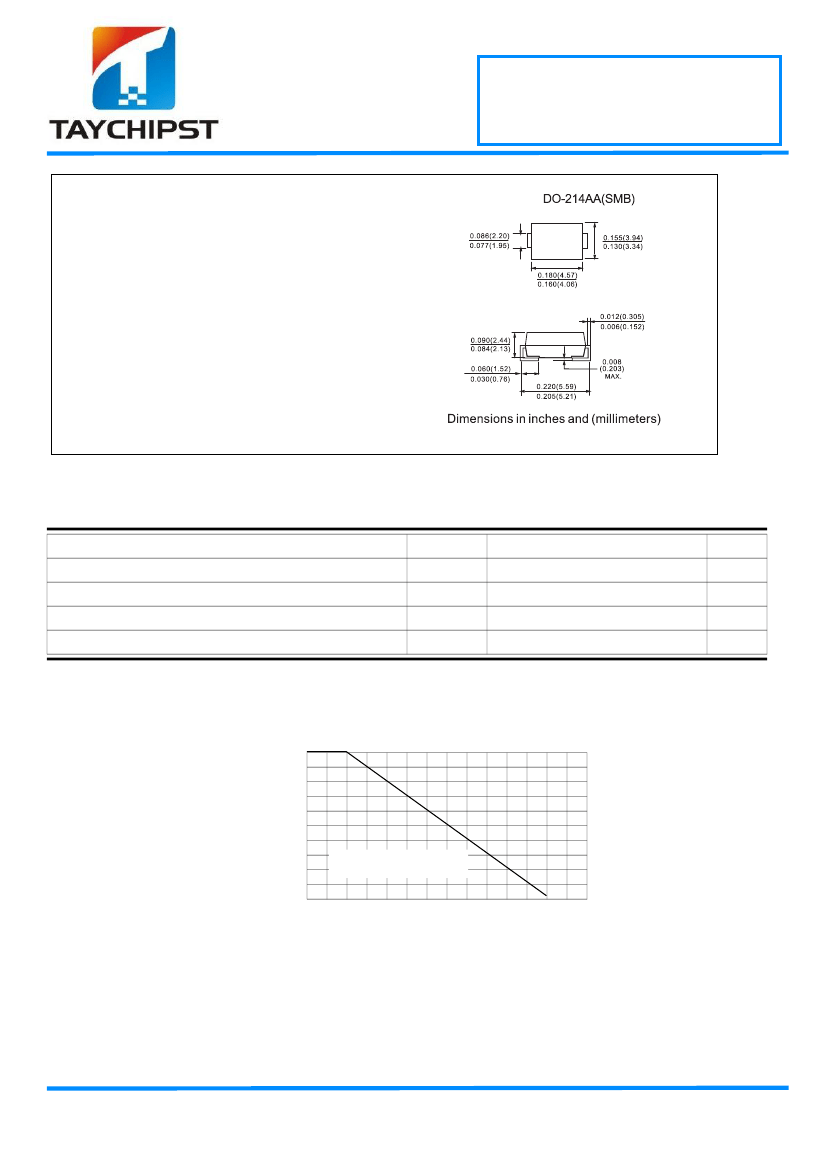

Fig. 1 POWER TEMPERATURE DERATING CURVE
P
D
, MAXIMUM DISSIPATION
(WATTS)
5.0
4.0
3.0
2.0
1.0
0
0
25
50
75
100
125
150
175
5.0 mm
2
( 0.013 mm thick )
copper land areas.
T
L,
LEAD TEMPERATURE (
°
C)
