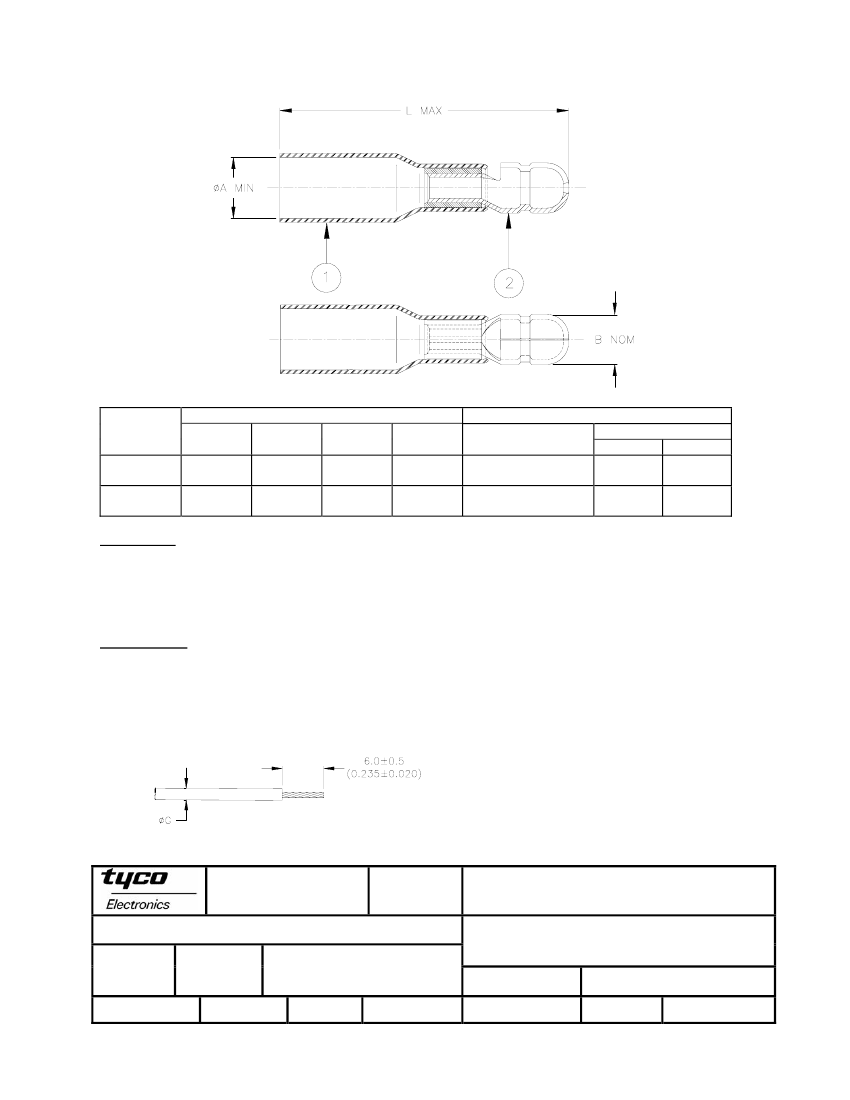

SPECIFICATION CONTROL DRAWING
Product
Name
B-106-7401
B-106-7502
øA
min
4.0
[0.160]
4.6
[0.180]
Product Dimensions
B
L
nom
max
4.0
33.0
[0.160]
[1.300]
5.0
34.0
[0.197]
[1.339]
Color (1)
Red
Blue
Wire Dimensions
Size Range
øG
2
mm (AWG)
min
max
0.5 - 1.0
1.4
4.0
(AWG 22-18)
[0.055)
[0.160]
1.5 - 2.5
2.0
4.6
(AWG 16-14)
[0.080)
[0.180]
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent color (1), radiation cross-linked modified polyamide with
thermoplastic adhesive coating inside.
2. BULLET TERMINAL: Tin-plated brass.
BASE METAL: C260 Brass.
PLATING: Tin-plated per ASTM B545, Class A.
APPLICATION
1. These controlled crimp devices are designed to terminate a tin-plated or bare copper stranded wire having an insulation rated
for at least 75°C to a bullet terminal. It will provide a splash proof and strain relief connection.
UL listed wire connector 91J4.
2. Temperature range: -55°C to +125°C.
3. For application tooling and installation, see RPIP-684-00.
For best results, prepare the wire as shown:
DuraSeal is a trademark of Tyco Electronics Corporation.
=
Tyco Electronics Corporation
300 Constitution Drive,
Menlo Park, CA. 94025, U.S.A.
Unless otherwise specified dimensions are in millimeters.
[Inches dimensions are shown in brackets]
TOLERANCES:
0.00 N/A
0.0 N/A
0 N/A
DRAWN BY:
ANGLES: N/A
ROUGHNESS IN
MICRON
CAGE CODE:
TITLE:
Raychem
DOCUMENT NO.:
DURASEAL BULLET
TERMINAL
B-106-7XXX
REV.:
DATE:
Tyco Electronics reserves the right to amend
this drawing at any time. Users should
evaluate the suitability of the product for their
application.
REPLACES:
DCR NUMBER:
A
SCALE:
SIZE:
17-Jul-06
SHEET:
M. FORONDA
06090
D030374
D060180
© 2006 Tyco Electronics Corporation. All rights reserved.
If this document is printed it becomes uncontrolled. Check for the latest revision.
---
A
1 of 1
