PT501-0UR-002F-W6 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PT501-0UR-002F-W6

Preview

PT501-0UR-002F-W6: DescriptionSingle Color LED, Ultra Red, Water Clear,; CategoryLED optoelectronic/LED photoelectric; File Size146KB，2 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

PT501-0UR-002F-W6 Overview

Single Color LED, Ultra Red, Water Clear,

PT501-0UR-002F-W6 Parametric

Parameter Name	Attribute value
Maker	LEDtronics
Reach Compliance Code	unknown
color	ULTRA RED
Configuration	SINGLE
Maximum forward current	0.02 A
Lens type	WATER CLEAR
Nominal luminous intensity	1800.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	18.6 mm
method of packing	BULK
peak wavelength	660 nm
shape	ROUND
surface mount	NO

Preview

Download Datasheet

View All

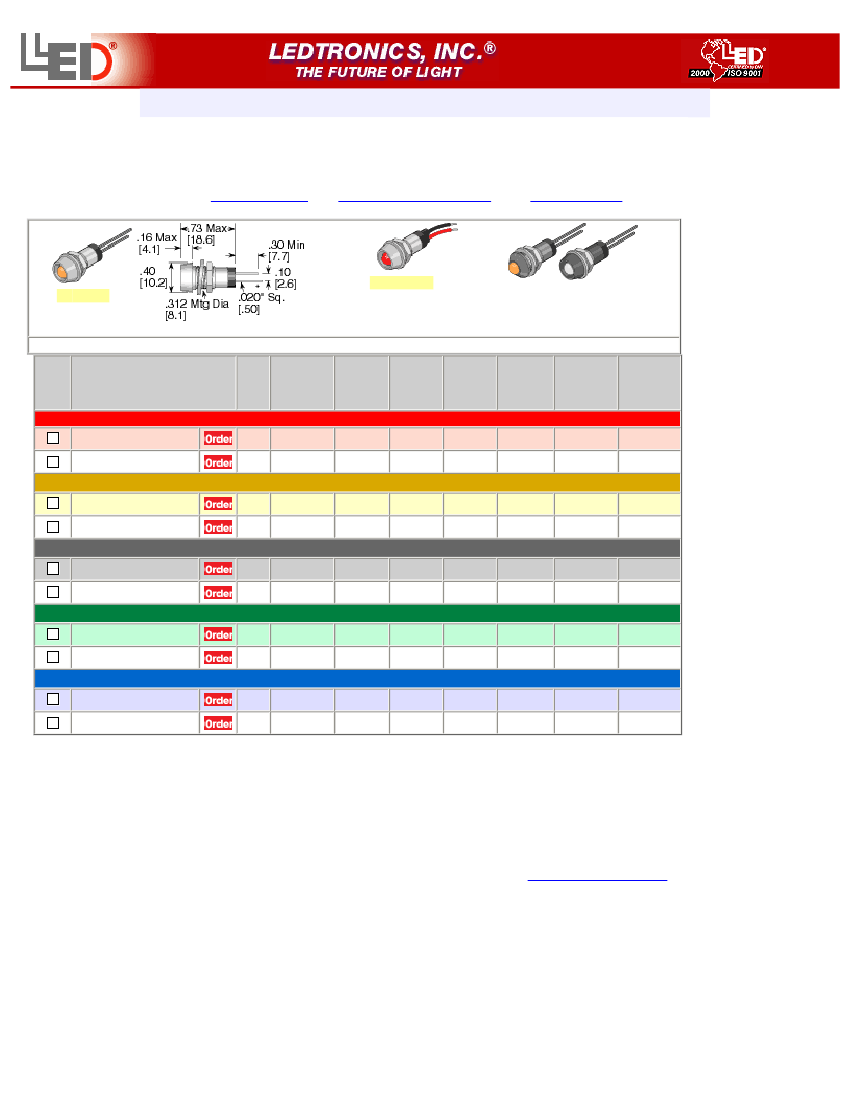

5/16" (8.0mm) Hardware Mount Panel LED Lamps; Series PT501; Waterclear, Sunlight-Visible; Page 1

View Cart ::

|

Checkout ::

Sunlight Visible Hardware Mount Panel LEDs

PT501 Series, Clear Dome Lens Chrome Bezel, 5/16"(8.0mm)

Page 1 (Waterclear)

All dimensions in inches [mm]

Page 2 (Diffused)

Page 3 (Low-Cost Diffused)

(See Special Notes)

(B)

(A)

PT501--T

Shrouded

(terminal type)

Thread size and pitch: M8x0.75

Retail Price

Min

(Volume

Order

Discount

Qty

Available)

Ι

f

Current

(mA)

typ

Panel thicknesses from 0.031 [0.8] to 0.187 [4.8]

Mark

Part

To

Number

Order

Input

Volts (V)

Ι

v

(mcd)

Wave

Length

(nm)

Full

Angle

PT501--W6

Shrouded

(with 6-inch wire leads)

Custom Optional

Black Housing

Fig.

Sunlight Visible Ultra Red (660nm) WaterClear with 6" Wire Leads

PT501-0UR-002F-W6

PT501-0UR-028V-W6

B

$6.00ea

$6.50ea

10

2Vf

24/28

1800

900

15-20

10-12

660

12-15°

Sunlight Visible Super Yellow (585nm) WaterClear with 6" Wire Leads

PT501-0UY-002F-W6

PT501-0UY-028V-W6

B

$6.00ea

$6.50ea

10

2Vf

24/28

3750

1800

15-20

10-12

595

12-15°

Sunlight Visible Super White (8000k) WaterClear with 6" Wire Leads

PT501-1CW-03.5F-W6

PT501-1CW-028V-W6

B

$7.00ea

$7.50ea

10

3.5Vf

24/28

1250

625

15-20

10-12

8000K

12-15°

Sunlight Visible Super A.Green (525nm) WaterClear with 6" Wire Leads

PT501-1AG-03.5F-W6

PT501-1AG-028V-W6

B

$7.00ea

$7.50ea

10

3.5Vf

24/28

3000

1500

15-20

10-12

525

12-15°

Sunlight Visible Super Blue (470nm) WaterClear with 6" Wire Leads

PT501-1PB-03.5F-W6

PT501-1PB-028V-W6

B

$7.00ea

$7.50ea

10

3.5Vf

24/28

1000

500

15-20

10-12

470

12-15°

Special Notes for Custom Configurations:

1) For custom OEM large quantity applications, other angles of illumination available.

2) For custom OEM large quantity applications, other voltages in AC or DC available

3) For custom OEM large quantity applications, Black housing available

4) For custom OEM large quantity applications for reducing battery drain, low-current versions available.

5) For custom OEM large quantity applications, longer lead lengths 12" (30.5cm), 24" (61cm) & 36" (91cm) available.

23105 Kashiwa Ct, Torrance, CA 90505 - PH: (800) 579-4875/(310) 534-1505 - FAX: (310) 534-1424

Webmaster@ledtronics.com

file:///E|/LEDT/PT501.htm [3/30/2005 1:52:36 AM]

PT501-0UR-002F-W6 Related Products

	PT501-0UR-002F-W6	PT501-1CW-03.5F-W6	PT501-1PB-028V-W6	PT501-1PB-03.5F-W6	PT501-1AG-03.5F-W6	PT501-1AG-028V-W6	PT501-1CW-028V-W6	PT501-0UY-002F-W6
Description	Single Color LED, Ultra Red, Water Clear,	Single Color LED, Super White, Water Clear,	Single Color LED, Super Blue, Water Clear,	Single Color LED, Super Blue, Water Clear,	Single Color LED, Super Aqua Green, Water Clear,	Single Color LED, Super Aqua Green, Water Clear,	Single Color LED, Super White, Water Clear,	Single Color LED, Super Yellow, Water Clear,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	ULTRA RED	SUPER WHITE	SUPER BLUE	SUPER BLUE	SUPER AQUA GREEN	SUPER AQUA GREEN	SUPER WHITE	SUPER YELLOW
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	0.02 A	0.012 A	0.02 A	0.02 A	0.012 A	0.012 A	0.02 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	1800.0 mcd	1250.0 mcd	500.0 mcd	1000.0 mcd	3000.0 mcd	1500.0 mcd	625.0 mcd	3750.0 mcd
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	18.6 mm	18.6 mm	18.6 mm	18.6 mm	18.6 mm	18.6 mm	18.6 mm	18.6 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
peak wavelength	660 nm	-	470 nm	470 nm	525 nm	525 nm	-	595 nm
