PPS251CW900-28V-W6 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PPS251CW900-28V-W6

PPS251CW900-28V-W6: DescriptionSingle Color LED, White, 4mm,; CategoryLED optoelectronic/LED photoelectric; File Size224KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric View All

PPS251CW900-28V-W6 Overview

Single Color LED, White, 4mm,

PPS251CW900-28V-W6 Parametric

Parameter Name	Attribute value
Maker	LEDtronics
Reach Compliance Code	unknown
color	WHITE
Configuration	SINGLE
Number of functions	1
Optoelectronic device types	SINGLE COLOR LED
shape	ROUND
size	4 mm

Preview

Download Datasheet

View All



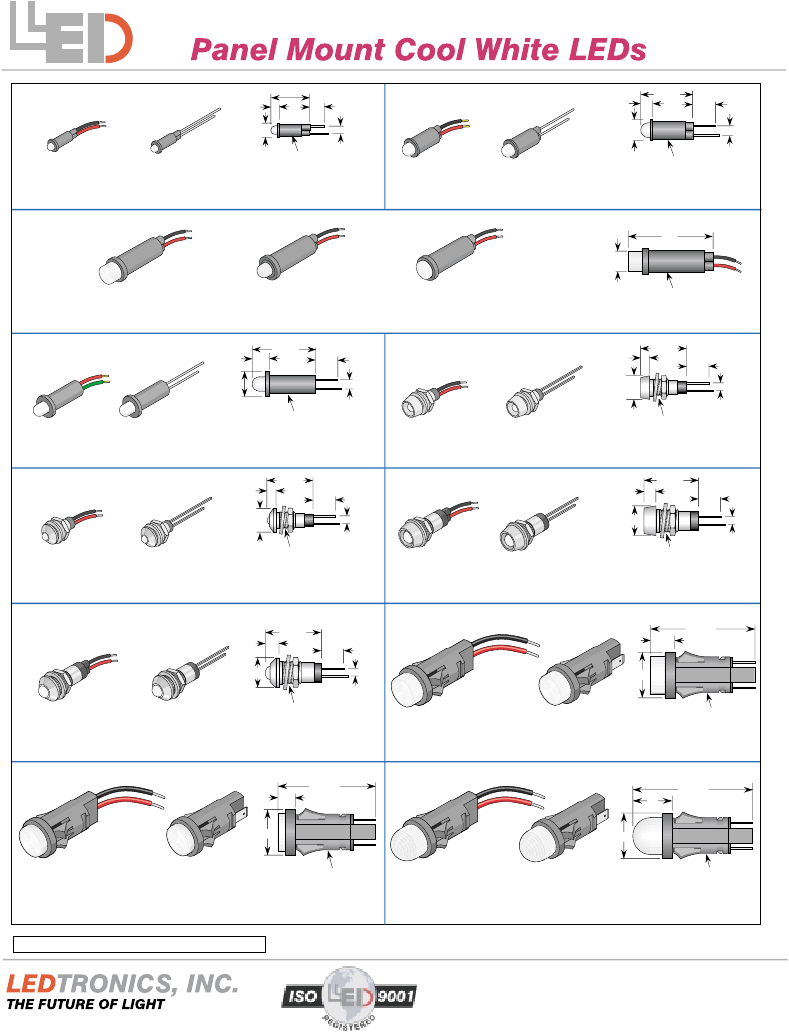

Panel Mount Cool White LEDs

Energy Efficient Low Cost Direct Mount

5/32" (4.0mm) Snap-in

Panel Mount LEDs

.56 MAX

.15 MAX

.20 MIN

1/4" (6.4mm) Snap-in

Panel Mount LEDs

.72 MAX

.16 MAX

.30 MIN

.19

.10

.28

.125

PP156-W

PP156-T

.156 Mtg Dia

PPS251-W

PPS251-T

.250 Mtg Dia

Available Voltages:

3.5Vf, 5/6V, 12/14V, 24V, 28V

Part No. Example:

PP156CW900-5V-T (Terminal Type)

PP156CW900-5V-W6 (Wire Leads Type)

Available Voltages:

3.5Vf, 5/6V, 12/14V, 24V, 28V

Part No. Example:

PPS251CW900-5V-T (Terminal Type)

PPS251CW900-5V-W6 (Wire Leads Type)

5/16" (8.0mm) Snap-In

Panel Mount LEDs

.29

1.20

PP312-W

(Top Hat Lens)

PPD312-W

(5mm Dome Lens)

PPS312-W

(Low Profile Lens)

.312 Mtg Dia

Available Voltages:

3.5Vf, 5/6V, 12/14V, 24V, 28V, 120VAC

Part No. Example:

PP312CW1K-5V-W6

3/16" (4.8mm) Panel Mount LEDs

with Hardware

.85 MAX

.23 MAX

.30 MIN

.125

1/4" (6.4mm) Panel Mount LEDs

with Hardware

.32

.61 MAX

.13 MAX

.30 MIN

.10

.33

P181-W

P181-T

.187 Mtg Dia

PT301-W

PT301-T

.250 Mtg Dia

Available Voltages:

3.5Vf, 5/6V, 12/14V, 24V, 28V

Part No. Example:

P181CW900-5V-T (Terminal Type)

P181CW900-5V-W6 (Wire Leads Type)

Available Voltages:

3.5Vf, 5/6V, 12/14V, 24V, 28V

Part No. Example:

PT301CW900-5V-T (Terminal Type)

PT301CW900-5V-W6 (Wire Leads Type)

1/4" (6.4mm) Panel Mount LEDs

with Hardware

.32

.63 MAX

.16 MAX

.30 MIN

.10

5/16" (8.0mm) Panel Mount LEDs

with Hardware

.40

.73 MAX

.16 MAX

.30 MIN

.10

PT302-W

PT302-T

.250 Mtg Dia

PT501-W

PT501-T

.312 Mtg Dia

Available Voltages:

3.5Vf, 5/6V, 12/14V, 24V, 28V

Part No. Example:

PT302CW900-5V-T (Terminal Type)

PT302CW900-5V-W6 (Wire Leads Type)

Available Voltages:

3.5Vf, 5/6V, 12/14V, 24V, 28V

Part No. Example:

PT501CW1K-5V-T (Terminal Type)

PT501CW1K-5V-W6 (Wire Leads Type)

5/16" (8.0mm) Panel Mount LEDs with Hardware

.79 MAX

.17 MAX

.30 MIN

.40

.10

1/2" (12.7mm) Top Hat Lens Snap-in Panel Mount LEDs

1.44 MAX

.36 MAX

PT502-W

PT502-T

.312 Mtg Dia

.62

PF50-W

PF50-T

.50 Mtg Dia

Available Voltages:

3.5Vf, 5/6V, 12/14V, 24V, 28V

Part No. Example:

PT502CW1K-5V-T (Terminal Type)

PT502CW1K-5V-W6 (Wire Leads Type)

Available Voltages:

3.5Vf, 5/6V, 12/14V, 24V, 28V, 120VAC

Part No. Example:

PF50CW1K-5V-T (Terminal Type)

PF50CW1K-5V-W6 (Wire Leads Type)

1/2" (12.7mm) Low Profile Lens Snap-in Panel Mount LEDs

1.30 MAX

.22 MAX

1/2" (12.7mm) Dome Lens Snap-in Panel Mount LEDs

1.62 MAX

.54

.62

PFS50-W

PFS50-T

.50 Mtg Dia

PD50-W

PD50-T

.50 Mtg Dia

Available Voltages:

3.5Vf, 5/6V, 12/14V, 24V, 28V, 120VAC

Part No. Example:

PFS50CW1K-5V-T (Terminal Type)

PFS50CW1K-5V-W6 (Wire Leads Type)

All dimensions in inches. For millimeters multiply by 25.4

Available Voltages:

3.5Vf, 5/6V, 12/14V, 24V, 28V, 120VAC

Part No. Example:

PD50CW1K-5V-T (Terminal Type)

PD50CW1K-5V-W6 (Wire Leads Type)

Caution

A white LED is sensitive to static electricity and care should be taken in handling it. When an overvoltage

is applied, which exceeds the absolute maximum rating of the white LED, its energy damages the LED.



23105 Kashiwa Court, Torrance, CA 90505

Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424

E-mail: webmaster@ledtronics.com

Website: http://www.ledtronics.com

Log # 078E Rev 2-99
