B120/B - B160/B
1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

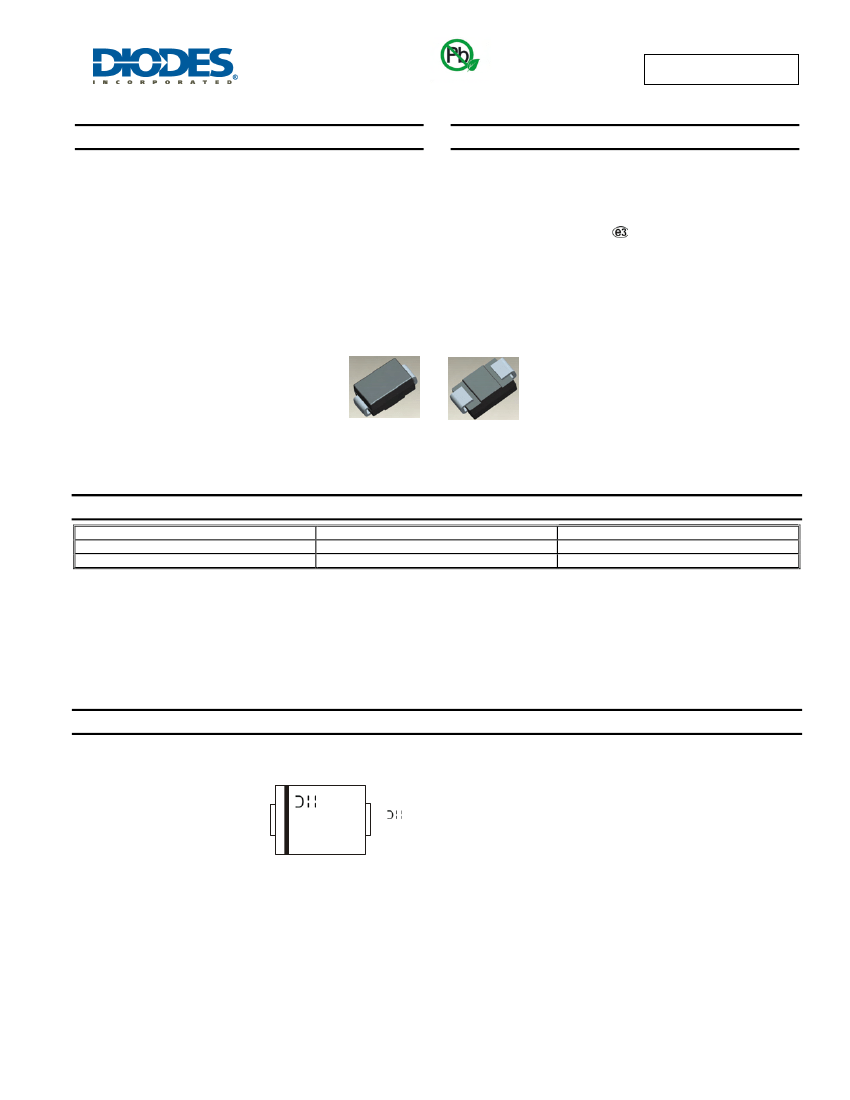

Features
•
•
•
•
•
•
•
Guard Ring Die Construction for Transient Protection
Ideally Suited for Automated Assembly
Low Power Loss, High Efficiency
Surge Overload Rating to 30A Peak
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
Lead Free Finish/RoHS Compliant (Note 1)
Green Molding Compound (No Halogen and Antimony)
(Note 2)
Mechanical Data
•
•
•
•
•
•
Case: SMA/SMB
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band or Cathode Notch
Weight: SMA 0.064 grams (approximate)
SMB 0.093 grams (approximate)
Top View
Bottom View
Ordering Information
(Note 3)
Part Number
B1XX-13-F
B1XXB-13-F
Notes:
Case
SMA
SMB
Packaging
5000/Tape & Reel
3000/Tape & Reel
*xx = Device Type, e.g. B120-13-F (SMA Package); B120B-13-F (SMB Package).
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes.
2. Product manufactured with Data Code 0924 (week 24, 2009) and newer are built with Green Molding Compound.
3. For packaging details, go to our website at http://www.diodes.com.
Marking Information
YWW
B1X0(B)
B1X0 = Product type marking code, ex: B120 (SMA package)
B1X0B = Product type marking code, ex: B160B (SMB package)
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year (ex: 2 for 2002)
WW = Week code (01 to 53)
B120/B - B160/B
Document number: DS13002 Rev. 16 - 2
1 of 5
www.diodes.com
September 2010
© Diodes Incorporated
B120/B - B160/B
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
@ T
T
= 130°C
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
B120/B
20
14
B130/B
30
21
B140/B
40
28
1.0
30
B150/B
50
35
B160/B
60
42
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Typical Thermal Resistance Junction to Terminal (Note 4)
Operating and Storage Temperature Range
Symbol
R
θ
JT
T
J,
T
STG
B120/B
B130/B
B140/B
B150/B
20
-65 to +150
B160/B
Unit
°C/W
°C

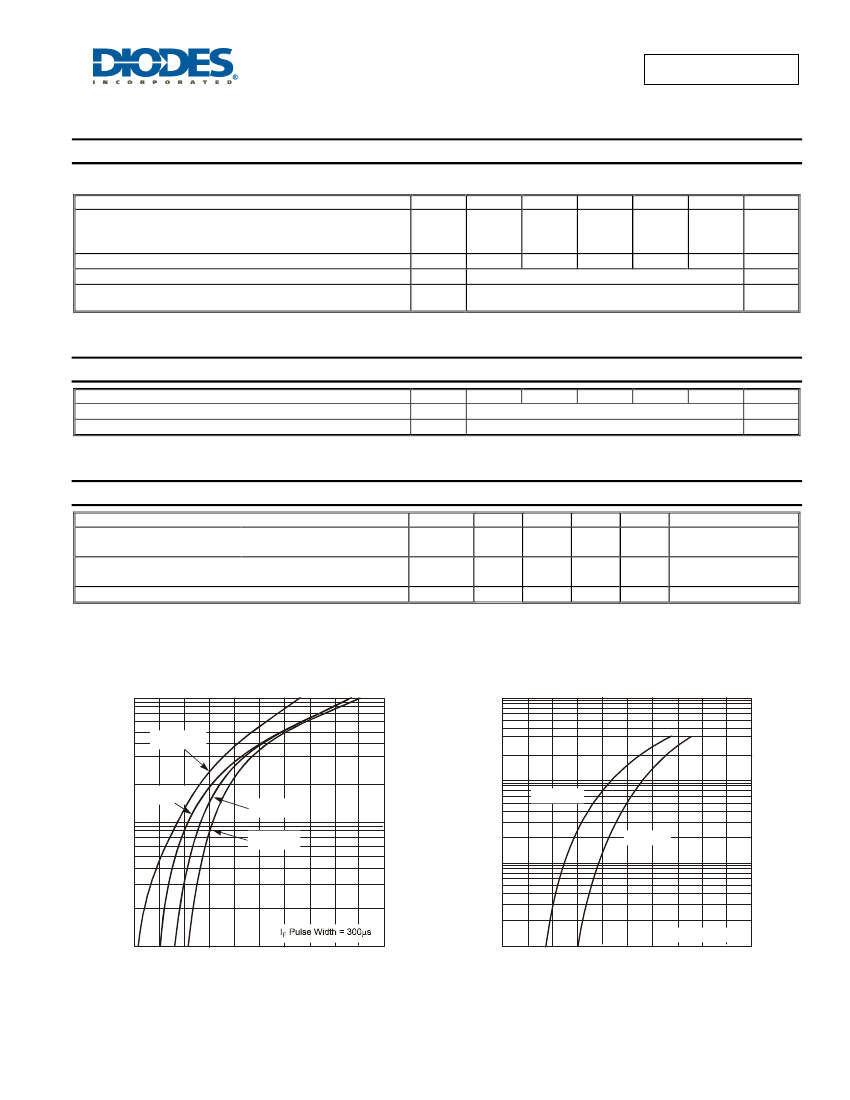

Electrical Characteristics
Characteristic
Forward Voltage Drop
Leakage Current (Note 5)
Total Capacitance
Notes:
@T
A
= 25°C unless otherwise specified
Symbol
B120/B, B130/B, B140/B
B150/B, B160/B
V
F
I
R
C
T
Min
-
-
Typ
-
-
Max
0.5
0.7
0.5
10
Unit
V
mA
pF
-
-
-
-
-
-
110
Test Condition
I
F
= 1.0A
I
F
= 1.0A
@ Rated V
R
,
T
A
= 25°C
@ Rated V
R
,
T
A
= 100°C
V
R
= 4V, f = 1MHz
4. Thermal Resistance: Junction to terminal, unit mounted on PC board with 5.0 mm
2
(0.013 mm thick) copper pads as heat sink.
5. Short duration pulse test used to minimize self-heating effect.
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
T
A
= +125
°
C
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
10
1.0
T
A
= 125ºC
T
A
= +75
°
C
T
A
= +25
°
C
1.0
T
A
= -25
°
C
T
A
= 25ºC
0.1
0.4
0.6
0.8
1.0
1.2
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

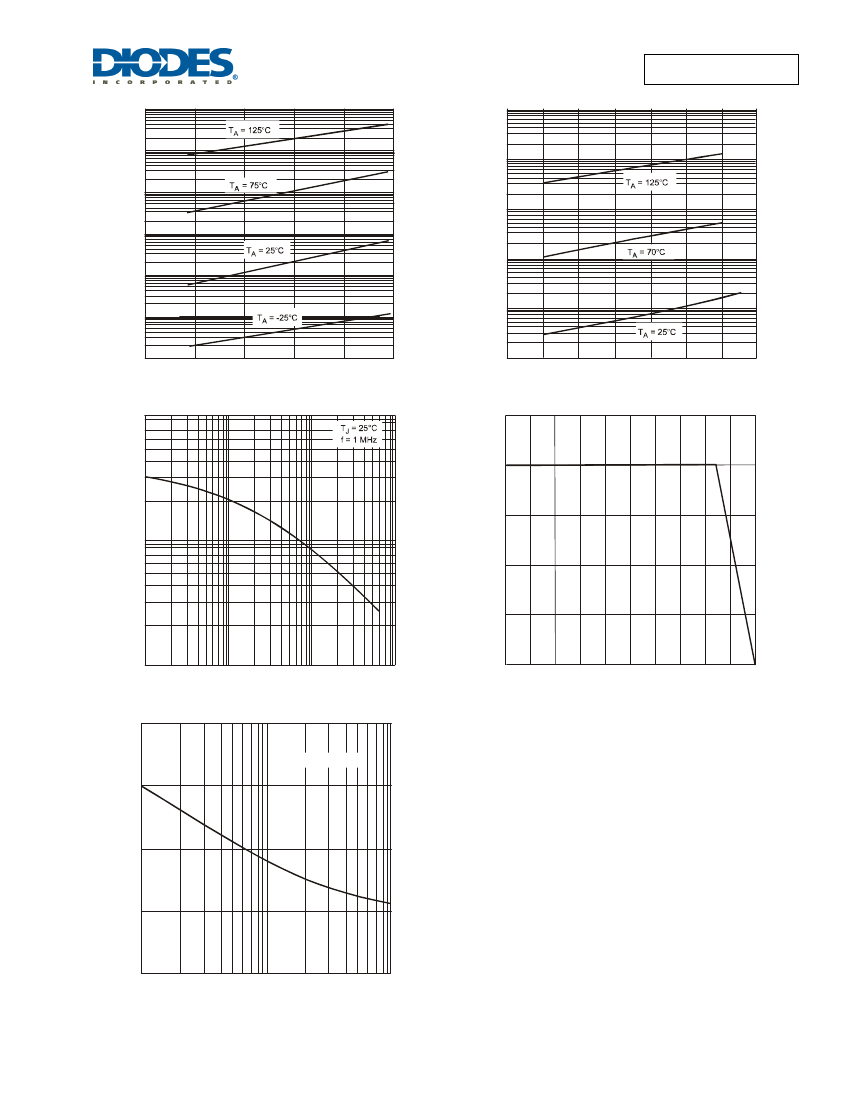

Fig. 1 Typical Forward Characteristics - B120/B thru B140/B
0.1
0.2
0.01
I
F
Pulse Width = 300 ms
0.8
1.0
0
0.2
0.4
0.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics - B150/B thru B160/B
B120/B - B160/B
Document number: DS13002 Rev. 16 - 2
2 of 5
www.diodes.com
September 2010
© Diodes Incorporated
B120/B - B160/B
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
10,000
1,000
10,000
1,000
100
100
10
10
1
0.1
1
0.01
20
30
40
10
50
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics, B120/B thru B140/B
0
70
30
50
40
60
10
20
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 4 Typical Reverse Characteristics, B150/B thru B160/B
0.1
0
1,000
I
O,
AVERAGE RECTIFIED CURRENT (A)
0.1
1
10
100
V
R
, DC REVERSE VOLTAGE (V)
Fig. 5 Total Capacitance vs. Reverse Voltage
C
T
, TOTAL CAPACITANCE (pF)
1.0
100
0.5
10
0
25
75
50
100
125
T
T
, TERMINAL TEMPERATURE (ºC)
Fig. 6 Forward Current Derating Curve
150
40
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
Single Half Sine-Wave
30
20
10
100
10
NUMBER OF CYCLES AT 60 Hz
Fig. 7 Max Non-Repetitive Peak Forward Surge Current
0
1
B120/B - B160/B
Document number: DS13002 Rev. 16 - 2
3 of 5
www.diodes.com
September 2010
© Diodes Incorporated
B120/B - B160/B
Package Outline Dimensions
B
SMA
Dim
Min
Max
A
2.29
2.92
B
4.00
4.60
C
1.27
1.63
D
0.15
0.31
E
4.80
5.59
G
0.05
0.20
H
0.76
1.52
J
2.01
2.30
All Dimensions in mm
SMB
Dim
Min
Max
A
3.30
3.94
B
4.06
4.57
C
1.96
2.21
D
0.15
0.31
E
5.00
5.59
G
0.05
0.20
H
0.76
1.52
J
2.00
2.50
All Dimensions in mm
A
C
D
J
H
G
E
Suggested Pad Layout
SMA
Value (in mm)
Dimensions
Z
6.5
G
1.5
X
1.7
Y
2.5
C
4.0
SMB
Value (in mm)
Dimensions
Z
6.7
G
1.8
X
2.3
Y
2.5
C
4.3
B120/B - B160/B
Document number: DS13002 Rev. 16 - 2
4 of 5
www.diodes.com
September 2010
© Diodes Incorporated
