88050-005: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size224KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

88050-005 Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

88050-005 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	88050
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0

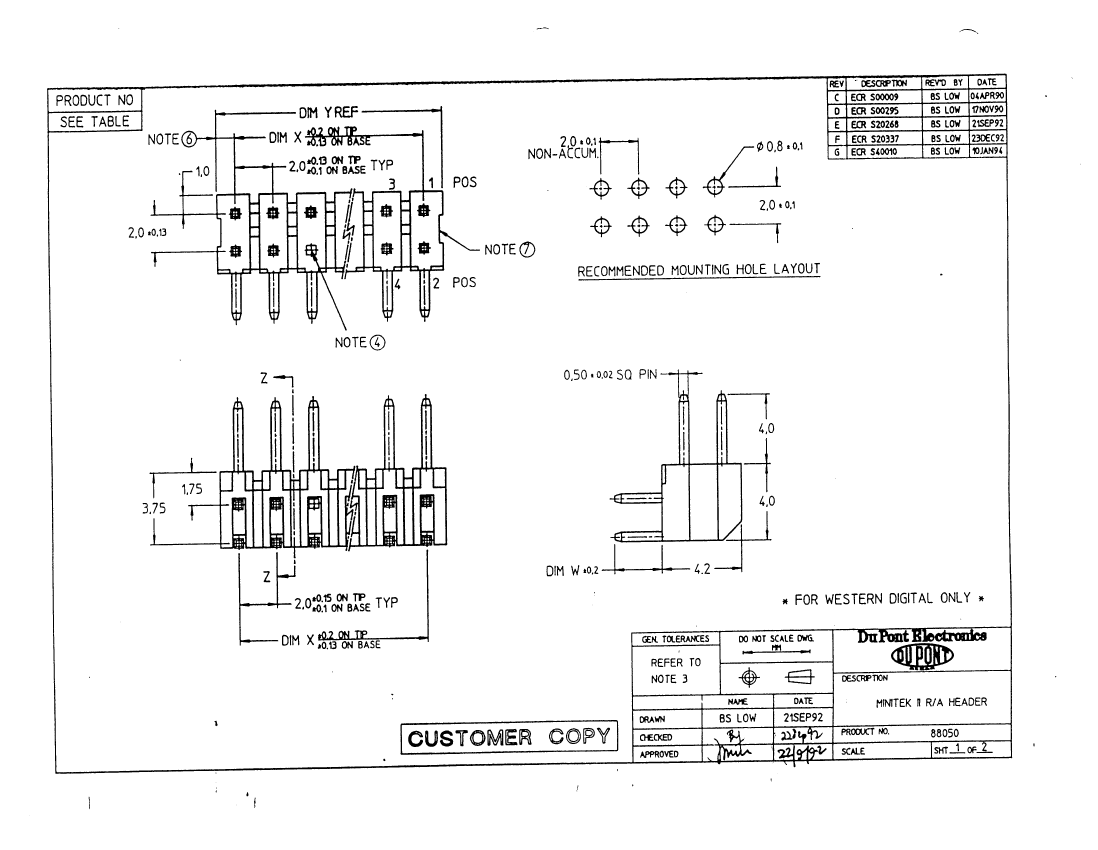

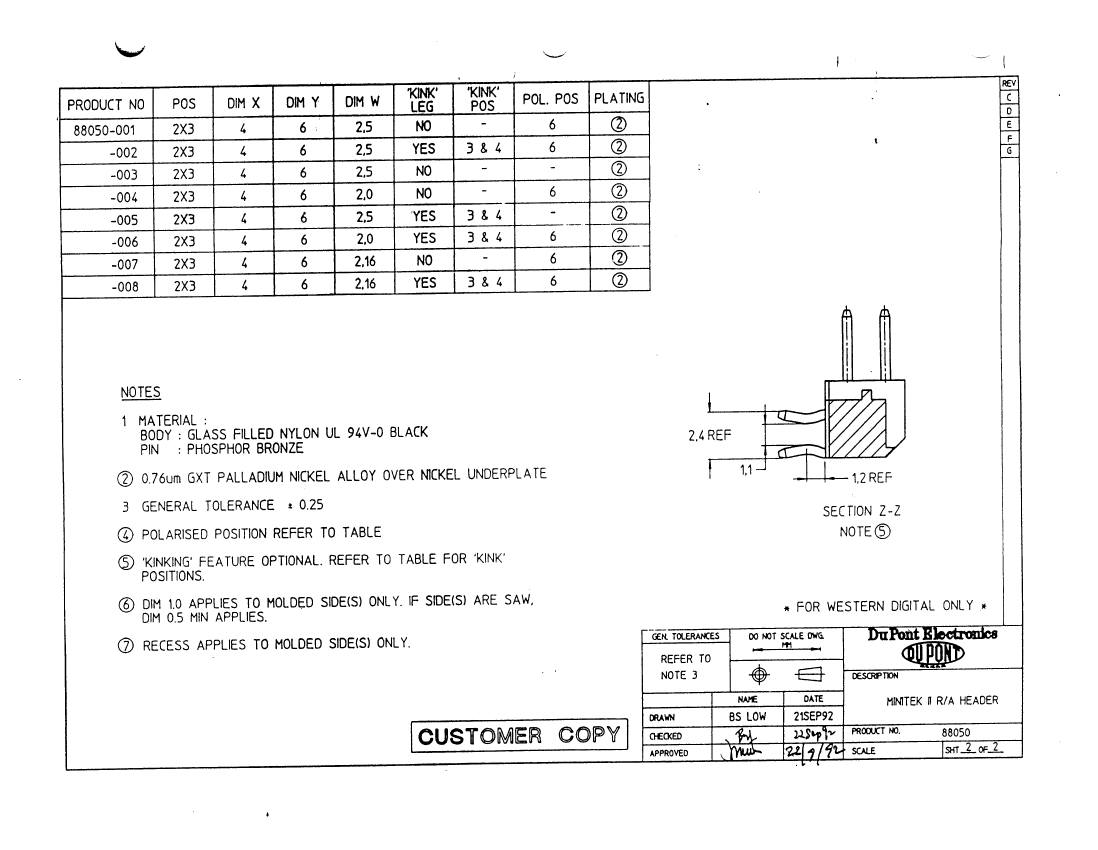

Preview

Download Datasheet

View All

PDM: Rev:G

STATUS:

Released

Printed: Dec 09, 2006

88050-005 Related Products

	88050-005	88050-001	88050-002	88050-003	88050-004	88050-006	88050-007	88050-008
Description	Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 5 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 5 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 5 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 5 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 5 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 5 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	88050	88050	88050	88050	88050	88050	88050	88050
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	6	5	5	6	5	5	5	5
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Other features	-	POLARIZED	POLARIZED	-	POLARIZED	POLARIZED	POLARIZED	POLARIZED
