SR-4-P-T-H-L-TL datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> SR-4-P-T-H-L-TL

SR-4-P-T-H-L-TL: DescriptionRF Coaxial Relay, SP5T, Latched, 0.55A (Coil), 12VDC (Coil), 6600mW (Coil), 6000MHz, DC Input, DC Output, Panel Mount,; CategoryMechanical and electronic products relay; File Size95KB，1 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric View All

SR-4-P-T-H-L-TL Overview

RF Coaxial Relay, SP5T, Latched, 0.55A (Coil), 12VDC (Coil), 6600mW (Coil), 6000MHz, DC Input, DC Output, Panel Mount,

SR-4-P-T-H-L-TL Parametric

Parameter Name	Attribute value
Maker	RLC Electronics Inc
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TNC, BUILT-IN TTL DRIVER
body height	47.7 mm
Body length or diameter	73.41 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.55 A
Coil power	6600 mW
Coil resistance	21.82 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Electrical life	1000000 Cycle(s)
Maximum insertion loss	0.5 dB
Maximum isolation	60 dB
Manufacturer's serial number	SR
Installation features	PANEL MOUNT
Maximum operating frequency	6000 MHz
Minimum operating frequency
Relay action	LATCHED
Relay function	SP5T
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	125 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

High Power Multi-Position

Coaxial Switches

RLC Electronics' High Power Multi-Position Coaxial Switch

line provides extremely high reliability, long life and outstanding

electrical performance and features extremely low insertion

loss and VSWR over the entire DC-6GHz range, while maintain-

ing high isolation.

Specifications

1-2-

-3-4-5-6-7

RF Positions

Switch Type:

Frequency Range:(GHz)

Insertion Loss (Max dB)

DC-1 GHz

1.0-3.0 GHz

3.0-6.0 GHz

VSWR (Max)

DC-1 GHz

1.0-3.0 GHz

3.0-6.0 GHz

Isolation (dB) (Min)

DC-1 GHz

1.0-3.0 GHz

3.0-6.0 GHz

SP-3T

DC-6

0.15

0.35

0.50

1.15

1.35

1.50

SP-4T

DC-6

0.15

0.35

0.50

1.15

1.35

1.50

SP-5T

DC-6

0.15

0.35

0.50

1.15

1.35

1.50

SP-6T

DC-6

0.15

0.35

0.50

1.15

1.35

1.50

Power Rating, RF Cold Switching:

See page 5.

Impedance:

50 Ohms

Operating Power 25° C:

(Failsafe):

12Vdc at 270 ma nom.

28Vdc at 190 ma nom.

115Vac at 50 ma nom.

(Latching)

28 Vdc at 310 mA nom. 12 Vdc at 550 mA nom.

Cutthroat circuitry (standard), recovery time 100ms nom.

Connectors, RF:

N, HN, SC, TNC Female

(HN not recommended above 4GHz)

Connectors, Power:

Feed through solder lugs.

Life:

1,000,000 operations.

Switching Time:

20 mS Max. Failsafe, 125 ms latching.

Environmental Conditions:

MIL-S-3928

Operating Mode:

Manual, failsafe or latching

Switching Sequence:

Break before make.

To designate the switch desired use:

(1) “M” for Manual, “R” for Remote.

(2) “3”, “4”, “5” or “6” throw operation

(3) “N”, “T” for TNC, “H” for HN or “S” for SC type connectors

(4) “A” for 115 Vac, “D” for 28 Vdc or “H” for 12 Vdc.

(5) “I” for indicators if desired.

(6) “L” for Latching cutthroat if desired

(7) “TL” for TTL Driver if desired

Example: SR-6-P-N-D-I-L is a remote, 6 position, N Connector, 28 Vdc; with indicators, latching cutthroat switch

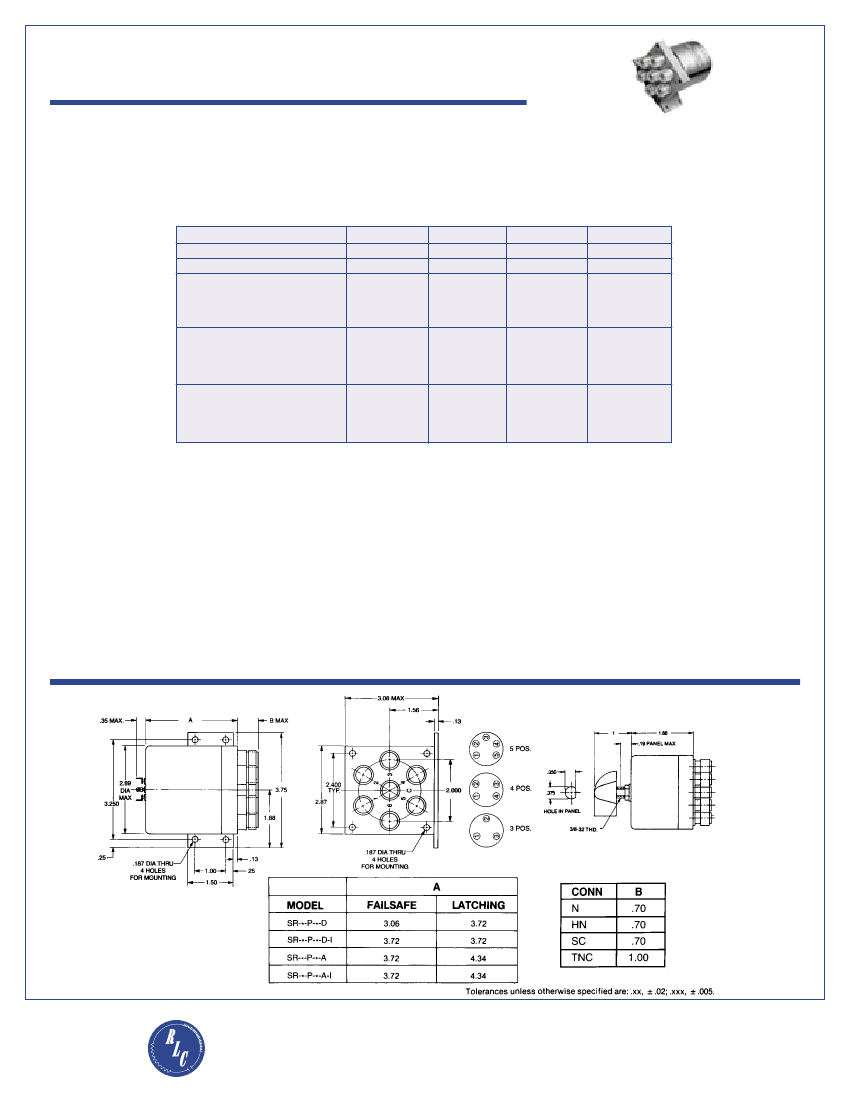

Outline Drawing

RLC ELECTRONICS, INC.

83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753

e-mail: sales@rlcelectronics.com • www.rlcelectronics.com
