Datasheet> All Categories > Circuit protection> Circuit protection> 3404.0004.11

Preview

3404.0004.11: DescriptionSCHURTER - 0031.7701.11 - FUSE HOLDER; PCB MOUNT; CategoryCircuit protection Circuit protection; File Size61KB，1 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

3404.0004.11 Overview

SCHURTER - 0031.7701.11 - FUSE HOLDER; PCB MOUNT

3404.0004.11 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	20 weeks 3 days
Is Samacsys	N
Other features	RATED BREAKING CAPACITY AT 125 VDC: 100 A
Fusing characteristics	VERY FAST
body width	3.1 mm
body height	2.6 mm
Body length or diameter	7.4 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal
Installation features	SURFACE MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BAG
physical size	7.4mm x 3.1mm x 2.6mm
Pre-discharge rating	0.0006 A2/s
Pre-discharge time - minutes	10 ms
Rated breaking capacity	100 A
Rated current	0.1 A
Rated voltage	125 V
Rated voltage (AC)	125 V
Rated voltage (DC)	125 V
Guideline	CCC; CSA; CUL; UL
surface mount	YES
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

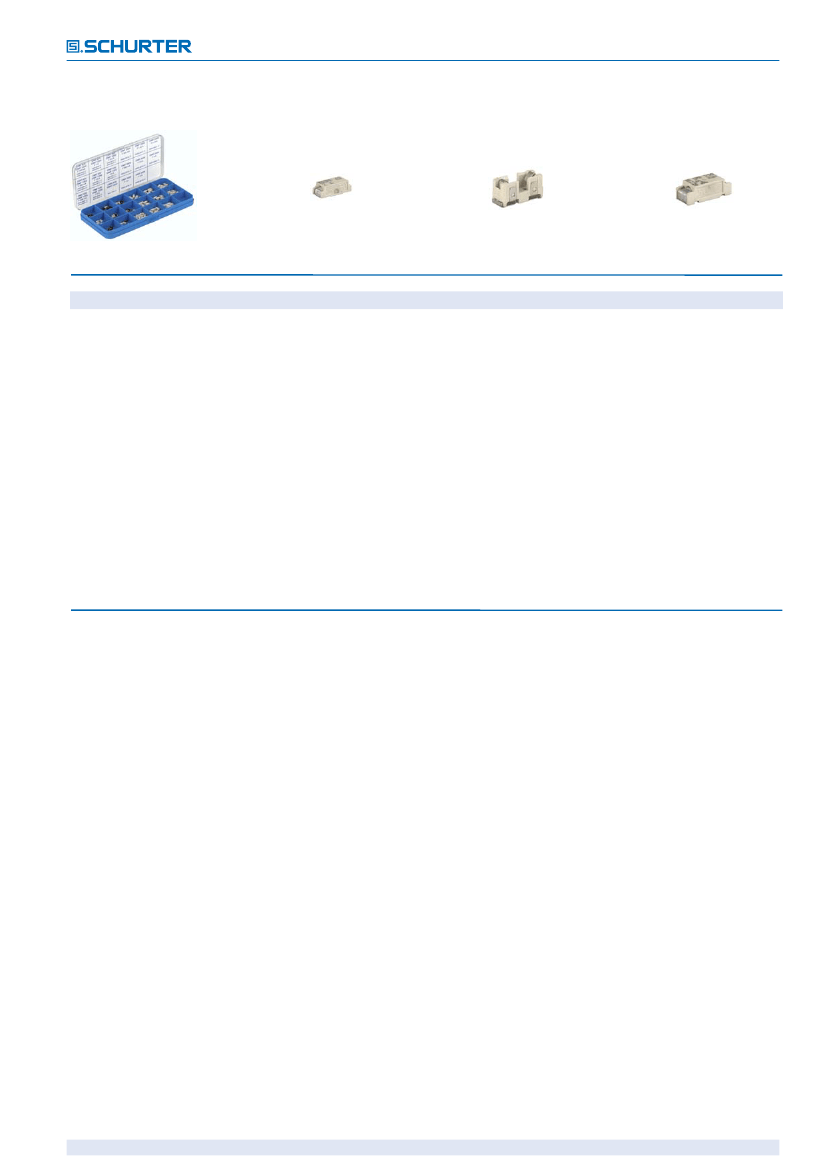

NON RESETTABLE FUSES

FUSE KITS

Fuse Kit OMF Fuses

OMF 63 / OMF 125

Variants

Order Number

0034.9877

Type

Fuse Kit OMF

includes Fuse-Link

3402.0004.11 / 3404.0004.11

3402.0006.11 / 3404.0006.11

3402.0008.11 / 3404.0008.11

3402.0009.11 / 3404.0009.11

3402.0011.11 / 3404.0011.11

3402.0012.11 / 3404.0012.11

3402.0015.11 / 3404.0015.11

3402.0017.11 / 3404.0017.11

0031.7701.11

3403.0013.11

3403.0015.11

3403.0016.11

3403.0017.11

3403.0018.11

3403.0019.11

3403.0021.11

3403.0022.11

OMH 125

Fuse-Link Type

OMF 63 / OMF 125

OMH 125

OMF 250

Rating

100 mA

250 mA

630 mA

1A

1.6 A

2A

3.5 A

5A

500 mA

800 mA

1A

1.25 A

1.6 A

2A

3.15 A

4A

OMF 250

Quantity

5 each

10

5

www.schurter.com

187
