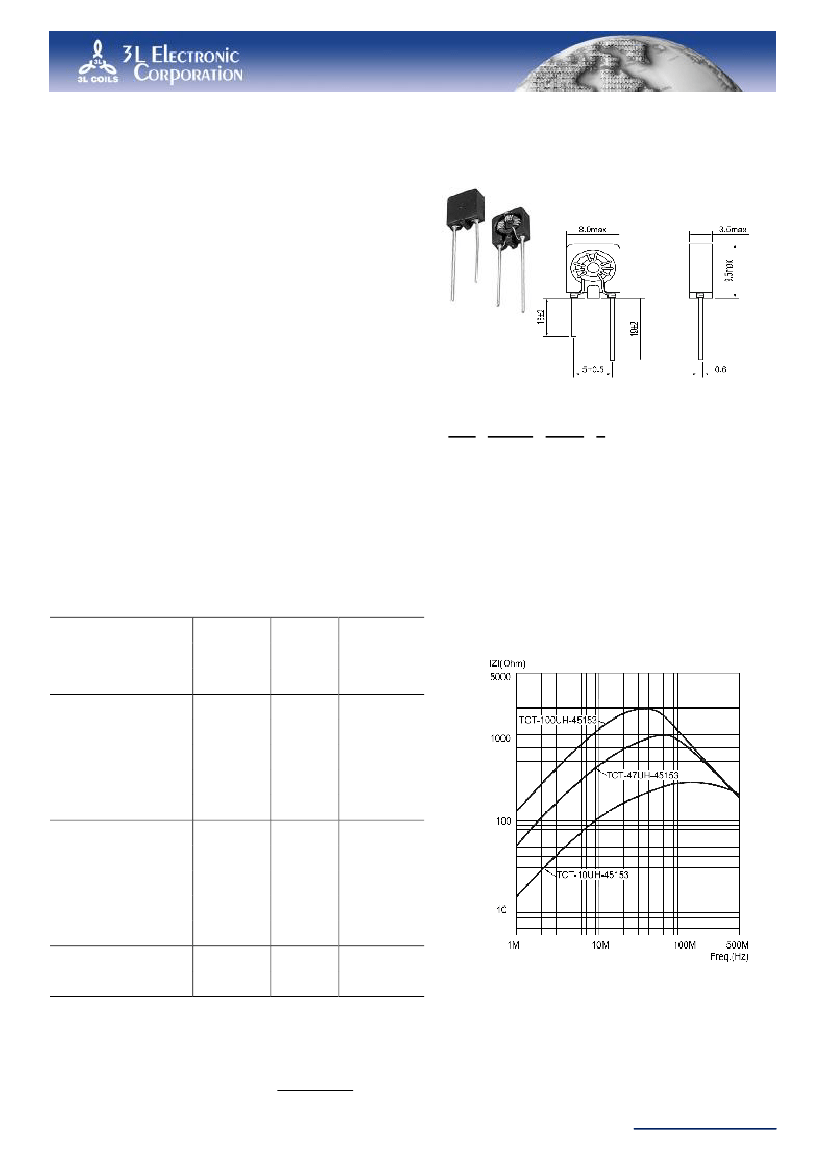

TCT SERIES
TOROID CORE AND LEAD TERMINALS.
Shape and Dimensions(unit:mm):
Applications :
．VCD,
DVD and TV circuits .
．Microcomputer
and peripheral devices .
Characteristics :
．Rated
Current: The current when temperature of coil
Increases up to Max.
△T=20℃.
(Ta=20℃)
Features :
．Ideal
for EMI protection.
．Highly
accurate dimensions and taped for auto-insertion.
Product Identification :
TCT - 8R2UH - 45153 - T
(1)
(1)
(2)
(3)
(4)
Type:
Toroid Core + lead Terminals
Test equipments and test setup :
．L:
CH100 LCR meter or equal equipment.
．Impedance:
HP4191A RF impedance analyzer.
．Operating
temperature : -25℃ to 85
℃
(2) Inductance: "8R2UH" for 8.2 uH.
(3) Core size:
OD=4.5
mm;
HT=1.5
mm;
ID=3.0mm
(4) Packing :
“T”:
Tape (2000 pcs), No code: Bulk.
L
Part No.
@1kHz
(uH)
TCT-4R7UH-45153
TCT-8R2UH-45153
TCT-10UH-45153
TCT-22UH-45153
TCT-33UH-45153
TCT-39UH-45153
TCT-47UH-45153
TCT-56UH-45153
TCT-60UH-45153
TCT-82UH-45153
TCT-100UH-45153
TCT-120UH-45153
4.7±50%
8.2±50%
10±35%
22±35%
33±35%
39±35%
47±35%
56±35%
60±35%
82±35%
100±35%
120±35%
DCR
(m
Ω
)
Max.
20
25
25
30
35
40
45
50
58
62
95
100
Rated
Current
(mA)
200
200
500
500
500
500
500
500
500
500
500
500
Impedance & Frequency curve
* Due to the limited space, the catalogue shows the typical specifications only. For more specific details ( characteristics graph, reliability, and others),
kindly invite you to access 3L official website www.3lcoil.com for better known.
Lasting. Leaning. Leading
3L Electronic Corp.
52.1
Web : http://www.3lcoil.com
