Amphenol
LC Assemblies
NEW
PRODUCT

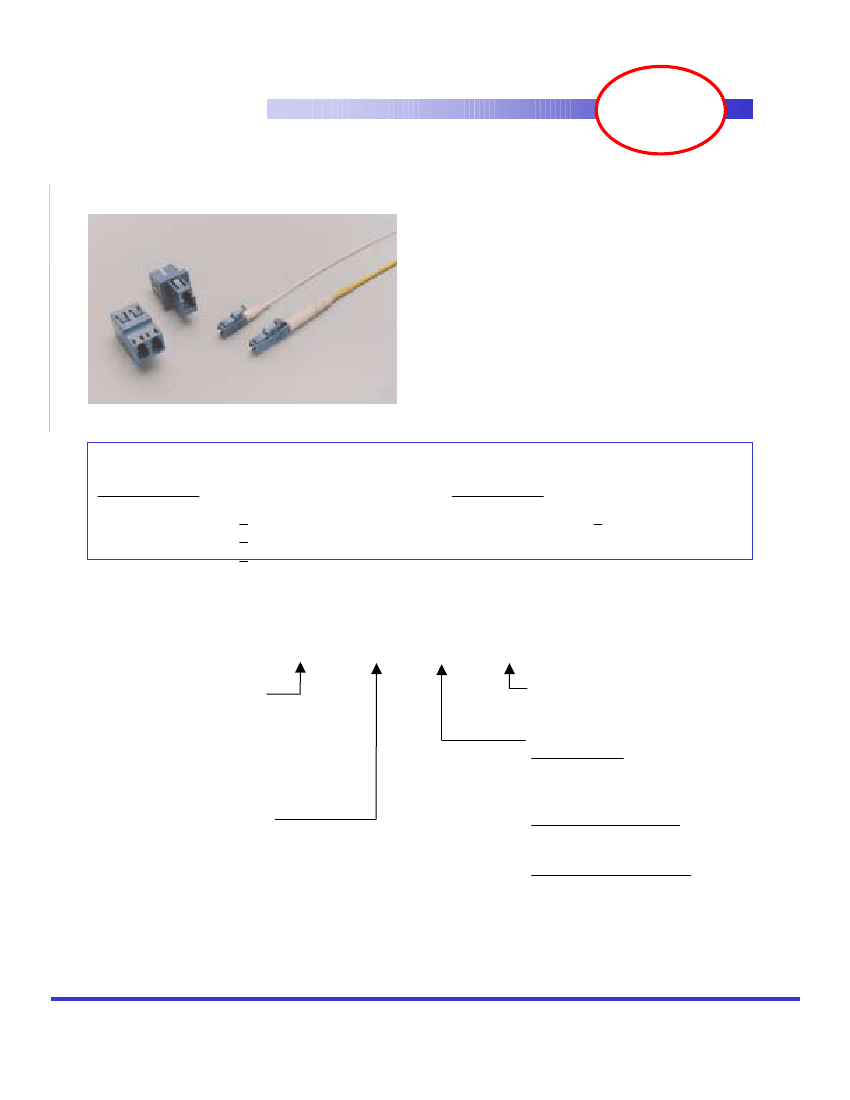

The LC connector was designed by Lucent
Technology’s Bell Labs. It is a small form factor
connector based on the familiar RJ-45 telephone
interface and is available in both simplex and
duplex designs.
It has a free floating ceramic ferrule allowing for
cable movement without adversely effecting the
mate. The LC is a spring loaded connector for
physical contact butt coupling. It has a pull-proof
locking system and couples with an audible
latching system to indicate positive mating.
Technical specifications
SINGLEMODE
Insertion Loss:
Return Loss:
< 0.3dB
< -50dB (Default)
< -55dB (Ultra)
MULTIMODE
Insertion Loss:
< 0.3dB
Assembly Code
AA _ _ - _ _ - _ - _ _ _
Connector One End
23 - LC Singlemode
23U - LC Singlemode Ultra Polish
29 - LC Multimode
32 - LC Duplex Singlemode
32U - LC Duplex Singlemode Ultra Polish
33 - LC Duplex Multimode
Connector Other End
23 - LC Singlemode
23U - LC Singlemode Ultra Polish
29 - LC Multimode
32 - LC Duplex Singlemode
32U - LC Duplex Singlemode Ultra Polish
33 - LC Duplex Multimode
OT - Other Connector, please state.
XX - Pigtail (no connector)
Length
(in metres)
ie: 005 is 5 metres, 0.5 is 0.5 metres
Cable
SINGLEMODE
E - 900um buffered fibre
J - Duplex 2.0mm OD zip cord
L - Simplex 2.0mm OD cord
MULTIMODE 50/125um
F - 900um buffered fibre
N - Duplex2.0mm OD zip cord
MULTIMODE 62.5/125um
G - 900um buffered fibre
M - Duplex 2.0mm OD zip cord
For other cords, please contact
Amphenol
Connector adapters are available, please contact Amphenol for your requirements
Amphenol Australia Pty Ltd
http://www.amphenol.com.au
2 Fiveways Blvd, Keysborough VIC 3173 PO Box 241 Noble Park VIC 3174
Tel: (03) 8796 8888 Fax: (03) 8796 8801 Email: info@amphenol.com.au Toll Free: 1800 674 559
