NRSG330M63V6.3X11TRSTF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NRSG330M63V6.3X11TRSTF

NRSG330M63V6.3X11TRSTF: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 63V, 33uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size106KB，8 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NRSG330M63V6.3X11TRSTF Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 63V, 33uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

NRSG330M63V6.3X11TRSTF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	33 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.02079 mA
Manufacturer's serial number	NRSG
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TR, CARDBOARD, 14 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
ripple current	265 mA
surface mount	NO
Delta tangent	0.09
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

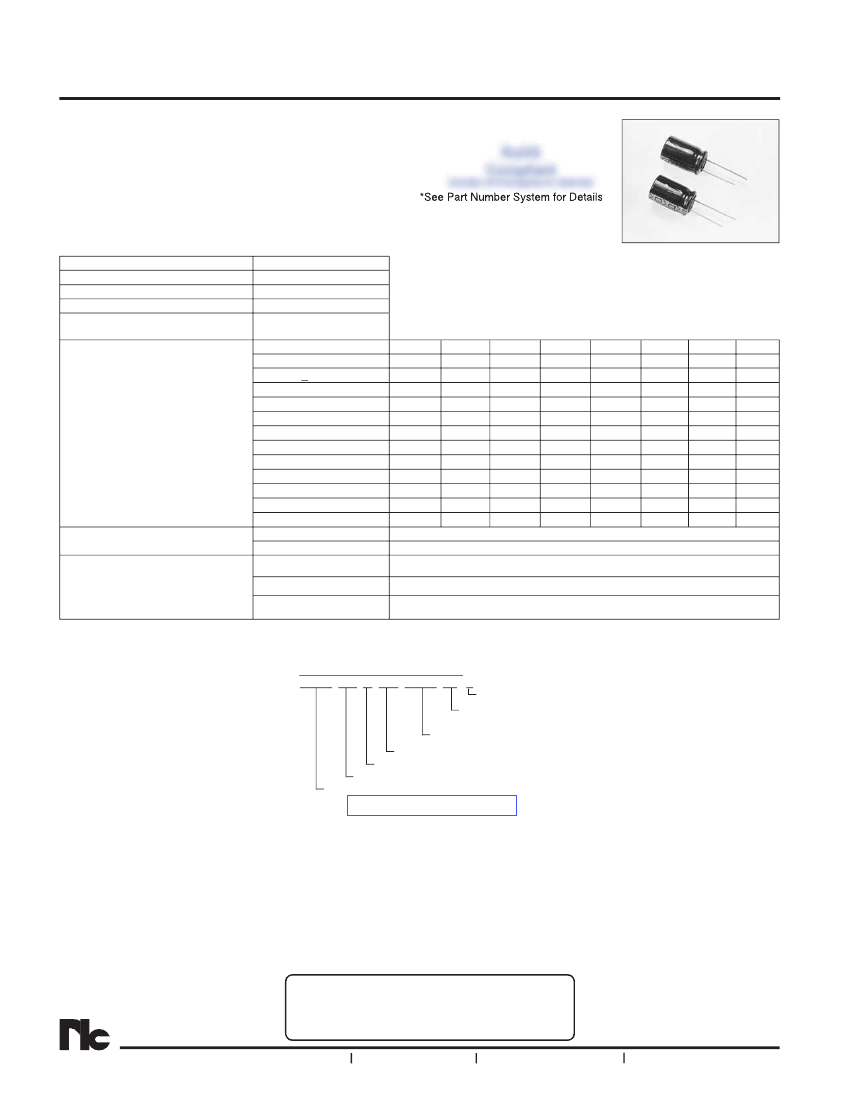

Miniature Aluminum Electrolytic Capacitors

ULTRA LOW IMPEDANCE, RADIAL LEADS, POLARIZED, ALUMINUM ELECTROLYTIC

RoHS

FEATURES

Compliant

• VERY LOW IMPEDANCE

includes all homogeneous materials

• LONG LIFE AT 105°C (2000 ~ 4000 hrs.)

• HIGH STABILITY AT LOW TEMPERATURE

• IDEALLY FOR SWITCHING POWER SUPPLIES & CONVERTORS

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

Maximum Leakage Current

After 2 Minutes at 20°C

6.3 ~ 100Vdc

6.8 ~ 6,800μF

-40°C ~ +105°C

±20% (M)

0.01CV or 3μA

whichever is greater

W.V. (Vdc)

S.V. (Vdc)

C < 1,000μF

C = 1,200μF

C = 1,500μF

C = 1,800μF

C = 2,200μF

C = 2,700μF

C = 3,300μF

C = 3,900μF

C = 4,700μF

C = 5,600μF

C = 6,800μF

Z-25°C/Z+20°C

Z-40°C/Z+20°C

Capacitance Change

Tan

Leakage Current

NRSG Series

Max. Tan

at 120Hz/20°C

6.3

0.22

0.24

0.26

0.28

0.30

0.32

0.19

0.21

0.23

0.27

0.16

0.18

0.20

0.14

0.16

0.12

0.10

0.09

100

125

0.08

Low Temperature Stability

Impedance Ratio @ 120Hz

Load Life Test at Rated W.V. & 105°C

2,000 Hrs. 5 ~ 6.3mm Dia.

3,000 Hrs 8mm Dia.

4,000 Hrs 10 ~ 12.5mm Dia.

5,000 Hrs 16 ~ 18mm Dia.

Within ±25% of initial measured value

Less than 200% of speciﬁed value

Less than speciﬁed value

PART NUMBER SYSTEM

NRSG 102 M 25V 10X20 TB F

RoHS Compliant

TB = Tape & Box*

Case Size (mm)

Working Voltage

Tolerance Code M=20%, K=10%

Capacitance Code in

μF

Series

*see tape speciﬁcation for details

Please review the notes on correct use, safety and precautions found on

pages T10

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your speciﬁc application - process details with

NIC’s technical support personnel:

tpmg@niccomp.com
